Aluminum Alloy ADSS Tension Suspension Clamp Fixing Cables

Aluminum Alloy ADSS Tension Suspension Clamp Fixing Cables

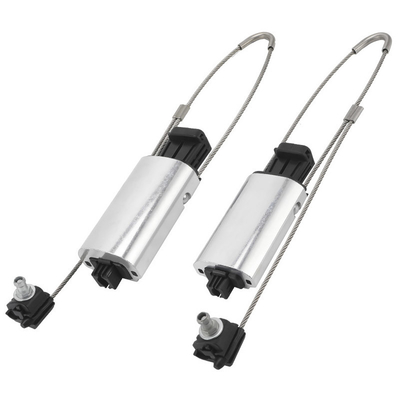

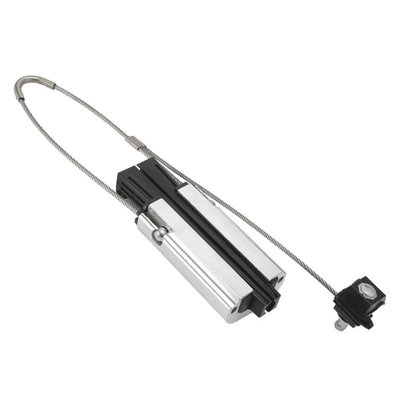

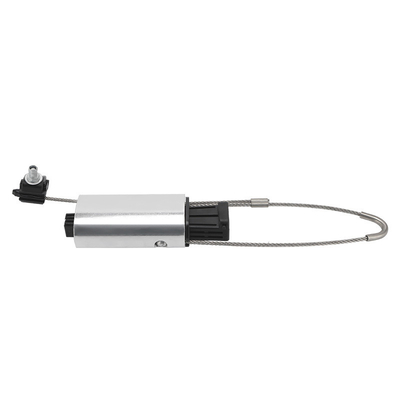

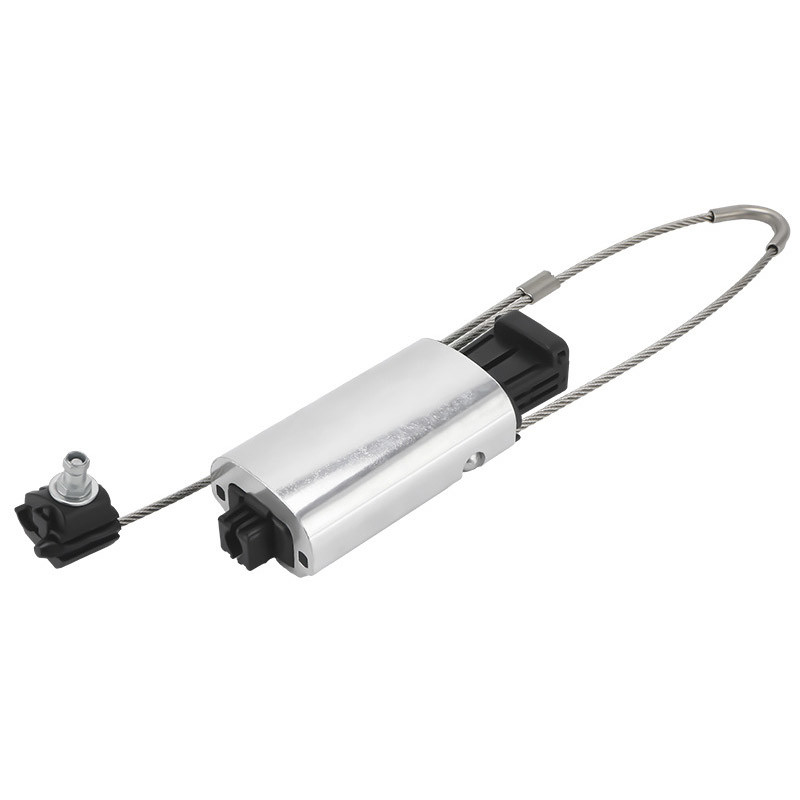

Dead end clamp is used for LV-ABC lines with insulated neutral messenger.The clamp consists of an aluminium alloy cast body and self-adjusting plastic wedges which tighten the conductor without insulation damage. All parts of the clamp are resistant to corrosion, environmental effects and UV radiation.

Specification:

Features:

1.1 Dead-ending of 11 to 14 mm ADSS cables
1.2 Minimum breaking load of 15 Kn
1.3 Installation on any pole hardware fitting
1.4 All plastic parts are UV resistant and tested in conditions equivalent to min 25 years

Application:

The clamps will be used as cable dead-end at end poles (using one clamp).Two clamps can be installed as double dead-end in the following cases :
2.1 at jointing poles
2.2 at intermediate angle poles when the cable route deviates by more than 20°.
2.3 at intermediate poles when the two spans are different in lengths
2.4 at intermediate poles on hilly landscape
