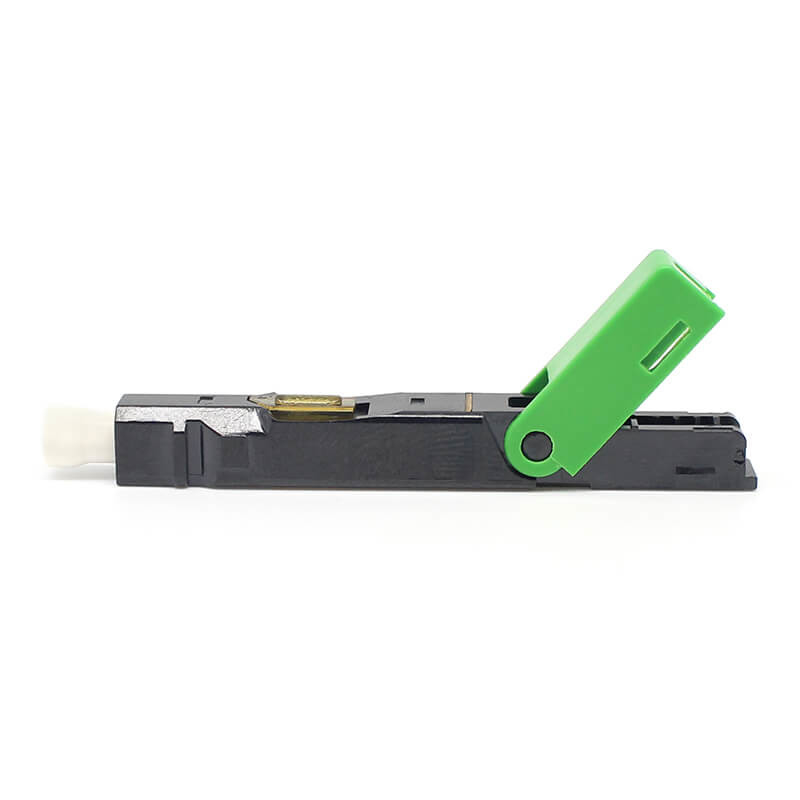

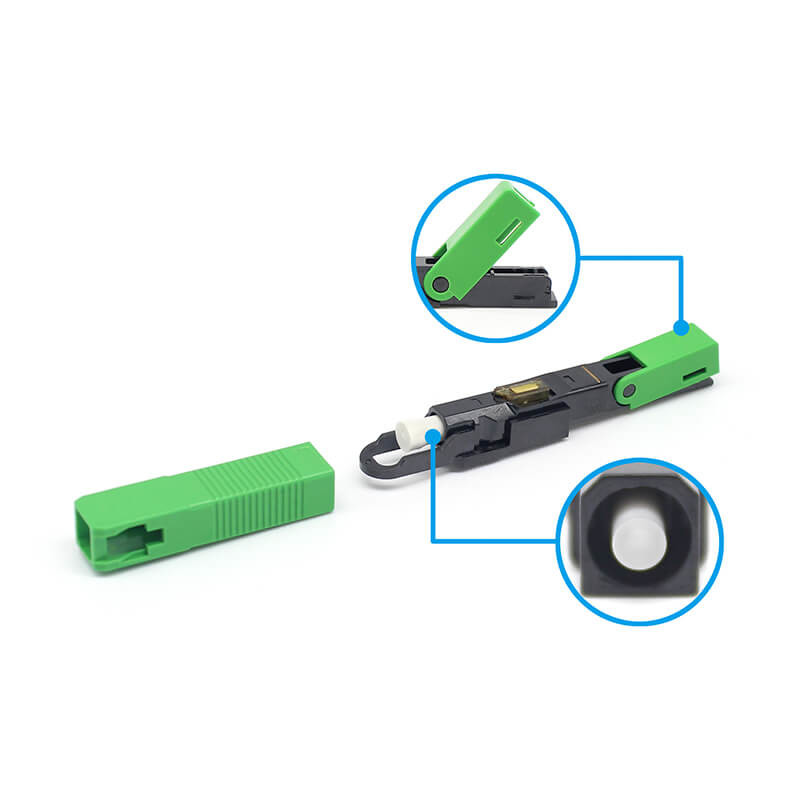

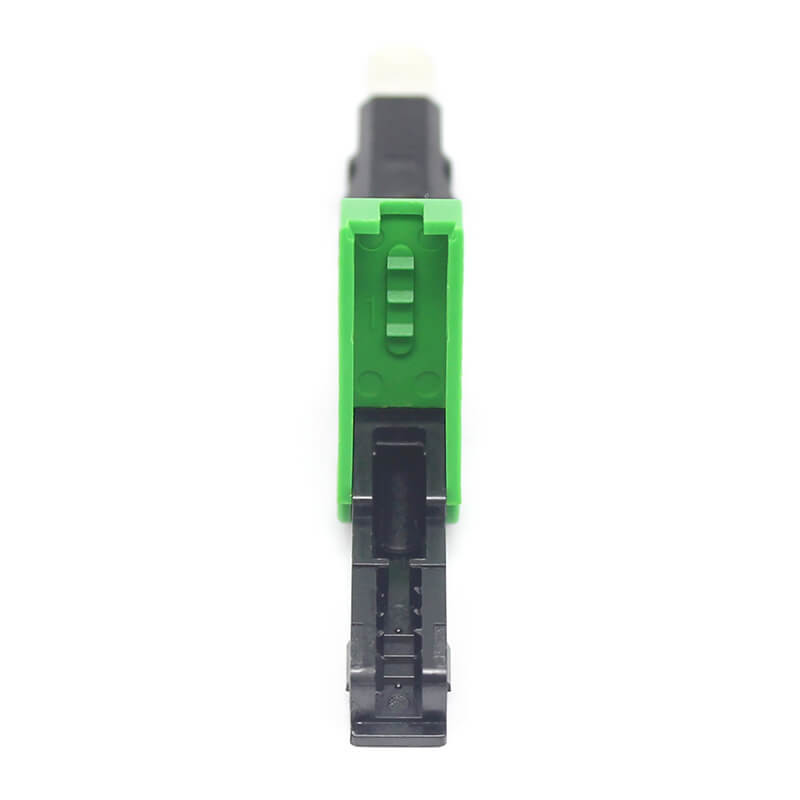

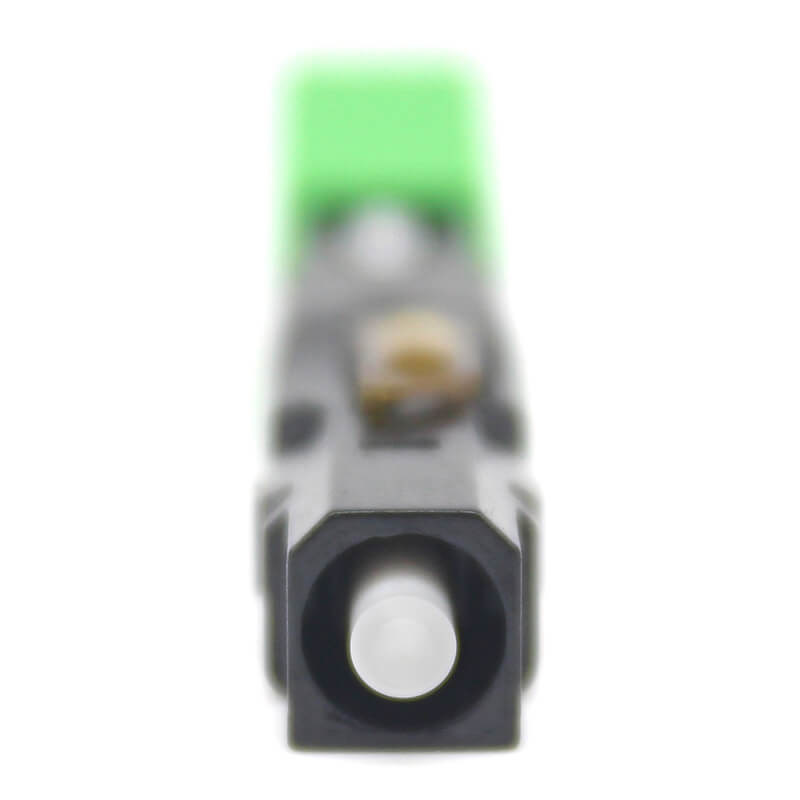

FTTH SM Mechanical Fiber Optic Quick Connector

FTTH SM Mechanical Fiber Optic Quick Connector
FTTH SM Mechanical Fiber Optic Quick Connector FTTH SM Mechanical Fiber Optic Quick Connector FTTH SM Mechanical Fiber Optic Quick Connector FTTH SM Mechanical Fiber Optic Quick Connector

Large Image :  FTTH SM Mechanical Fiber Optic Quick Connector

Product Details:
Place of Origin: China
Brand Name: DOWELL
Model Number: DW-250P-A
Payment & Shipping Terms:
Minimum Order Quantity: 1000 pieces
Packaging Details: Normal Package
Delivery Time: 7-15 Days
Payment Terms: T/T, Western Union, Paypal
Supply Ability: 10000 PCS Per 7 Days
Contact Now

FTTH SM Mechanical Fiber Optic Quick Connector

Description
Size: 49.5*7*6mm Mode: SM SC/APC
Coating Diameter: 250μm Fiber Diameter: 125μm ( 652 & 657 )
Cable Scope: 3.1 X 2.0 Mm Bow-type Drop Cable Operation Time: About 15s（exclude Fiber Presetting )
Highlight:

ftth lc fiber connector

,

ftth waterproof fiber optic connector

,

sm lc fiber connector

FTTH SM Mechanical Fiber Optic Quick Connector

Fiber Fast connector is a convenient and fast device for connecting optical fiber cables. it's Easy operating, The connector can be directly used in ONU, also with fasten strength more than 5kg, it is widely used in FTTH project of network revolution. It also reduce the use of sockets and adapters, save cost of project.

Specification:

Cable Scope 3.1 x 2.0mm Bow-type Drop Cable Size 49.5*7*6mm
Fiber Diameter 125μm ( 652 & 657 ) Coating Diameter 250μm
Mode SM SC/APC Operation Time about 15s (exclude fiber presetting)
Insertion Loss ≤0.3dB (1310nm & 1550nm) Return Loss ≥55dB
Success Rate >98% Reusable Times >10 times

Application:

1. FTTx,Data Room Transformation.

FTTH SM Mechanical Fiber Optic Quick Connector 0

Relevant Solutions:

1.1 Easy operating, The connector can be directly used in ONU, also with fasten strength more than 5 kg, it is widely used in FTTH project of network revolution. It also reduce the use of sockets and adapters, save cost of project.

1.2 With 86 standard socket and adapter, the connector makes connection between drop cable and patch cord. The 86 standard socket provides complete protection with its unique design.

More Different Types:

FTTH SM Mechanical Fiber Optic Quick Connector 1

Tag:

sc fiber connector,

lc upc connector,

fiber optic cable ends
