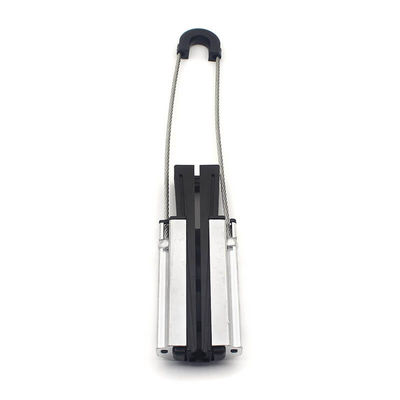

Insulating Nylon PA66 ADSS Fiber Wedge Dead End Clamp 11-14mm

Insulating Nylon PA66 ADSS Fiber Wedge Dead End Clamp 11-14mm

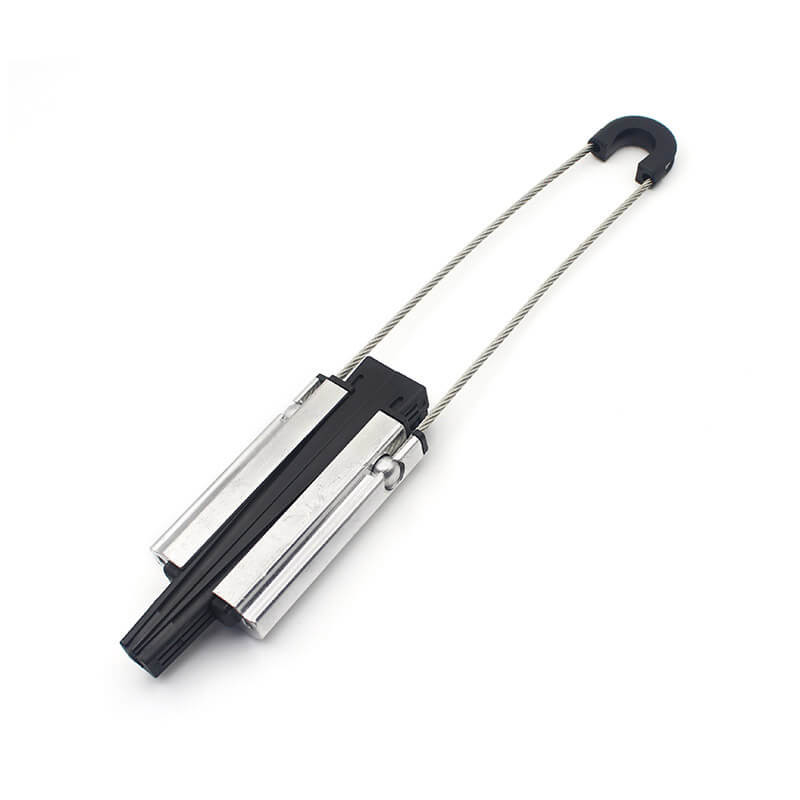

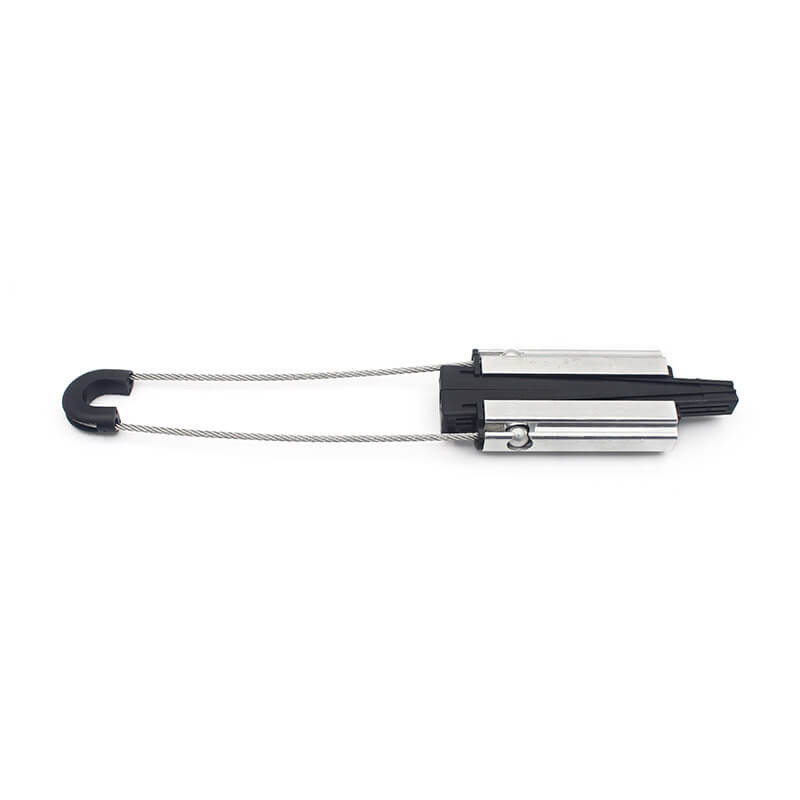

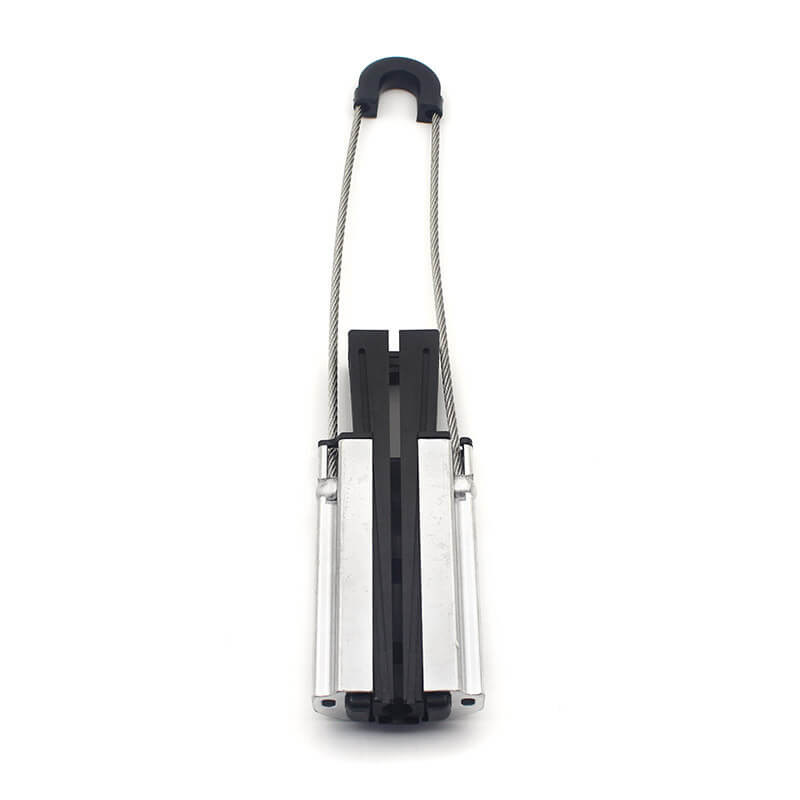

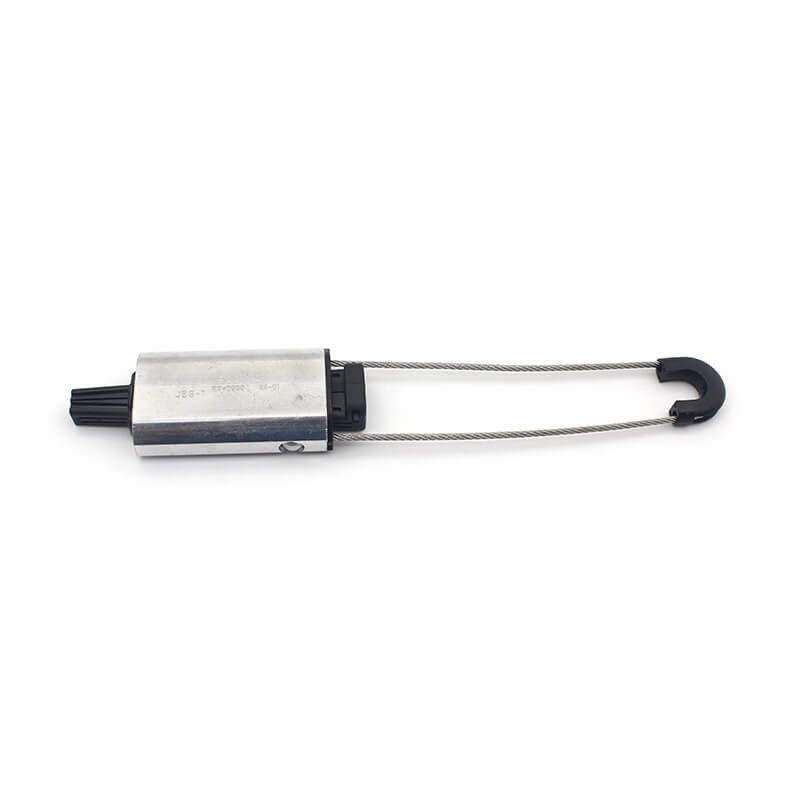

The PA-1500 clamp is a robust and reliable solution for dead-ending aerial ADSS cables on access networks. Crafted from corrosion resistant aluminum alloy, the clamp features self-adjusting plastic wedges that securely grip the conductor without damaging the insulation. Designed to withstand harsh environmental conditions, including UV radiation, it ensures long-lasting performance and minimal maintenance.

Material	Aluminum Alloy Nylon (PA66)	Weight	0.38kg
Aluminum Alloy Base Support	66*110*30mm	Steel Wire with 2 Steel Balls	O.D.: 4.0mm L: 520mm
Cable Diameter	11-14mm	Breaking Load	15KN

Installation Tips:

1. Ensure the clamp matches the cable diameter.

2. Avoid over-tightening to prevent crushing the cable.

3. Use helical fittings or armor rods if extra protection is needed.

Application:

The clamps will be used as cable dead-end at end poles (using one clamp).Two clamps can be installed as double dead-end in the following cases:

1. At jointing poles

2. At intermediate angle poles when the cable route deviates by more than 20°.

3. At intermediate poles when the two spans are different in lengths

4. At intermediate poles on hilly landscapes
