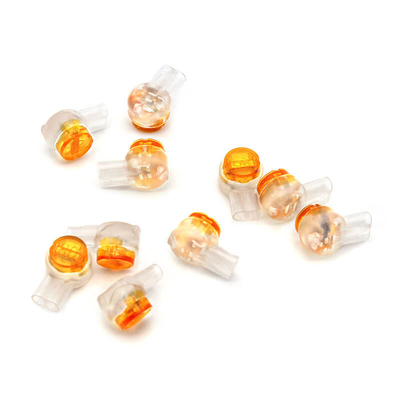

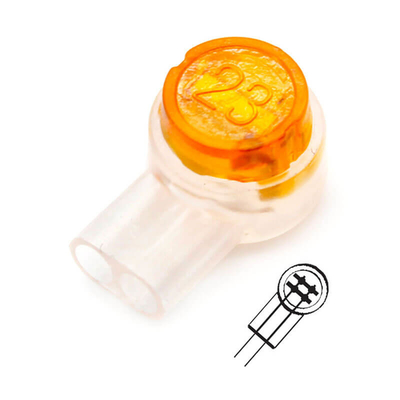

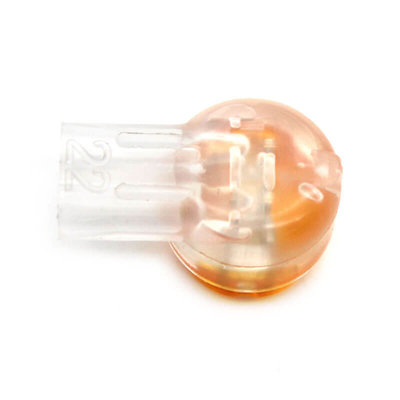

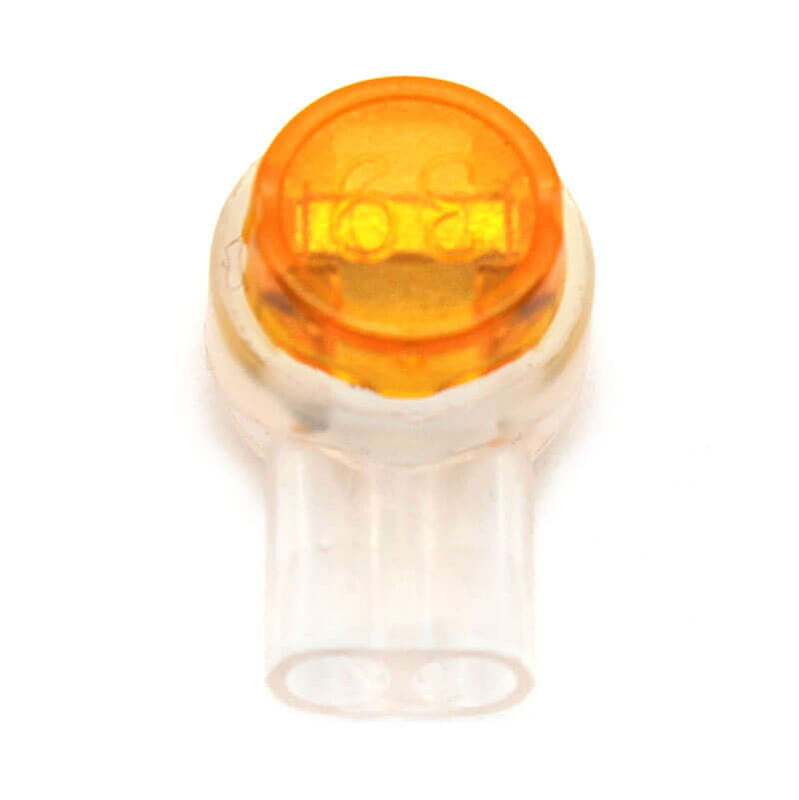

Original UY2 Scotchlok Butt Connector Gel Filled For Moisture Resistance

Large Image : Original UY2 Scotchlok Butt Connector Gel Filled For Moisture Resistance

Product Details:

Place of Origin:	China,Zhejiang
Brand Name:	DOWELL
Model Number:	DW-5022

Payment & Shipping Terms:

Minimum Order Quantity:	10000 pieces
Delivery Time:	7-15 Days
Payment Terms:	T/T, Western Union, Paypal
Supply Ability:	100000 PCS Per 7 Days

Contact Now

Original UY2 Scotchlok Butt Connector Gel Filled For Moisture Resistance

Description

Maximum Insulation:

2.08mm (0.082'')

Wire Range:

0.9-0.4 Mm (19-26AWG) Mm²

Connector Type:

Butt

Special Feature:

Gel-filled For Moisture Resistance

Highlight:

UY2 Scotchlok Butt Connector

UY2 Wire Butt Splice

UR Scotchlok Butt Connector

Original UY2 Butt Wire Connector Gel-filled For Moisture Resistance
UY2 solvent resistant connectors reduce the splicing bundle O.D. to a minimum. Their two ports accept two solid copper conductors that can be of different wire gauges. Factory inserted sealant insulates the connections, protects against corrosion, and seals out moisture. The UY2 Connector is easily installed and crimped by using our DW-8021 Connector Crimping Plier.

Speicification:

Accessory Type	Butt	Special Feature	Gel-filled for moisture resistance
Maximum Insulation	2.08mm (0.082”)	AWG (mm²) Wire Range	0.9-0.4 mm (19-26AWG) cable
Color Identification	Amber

Dimension:

Application:
1. Splicing

2. Voice

3. Data

4. Premise Wiring

Package:

Packing: 100pcs/bag, 1000pcs/box, 10000pcs/cs.

Size: 41*28.5*22cm

G.W.: 7.8kg(17.2 lbs.)/cs.

3M Telecom Connection System:
