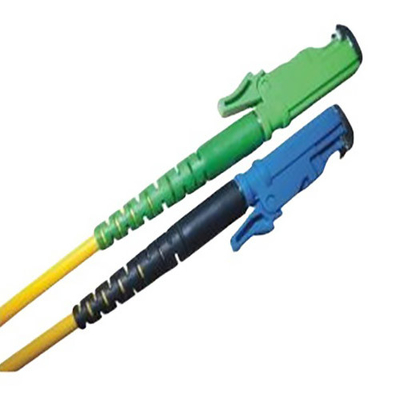

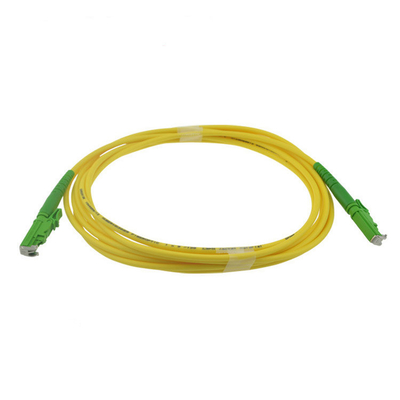

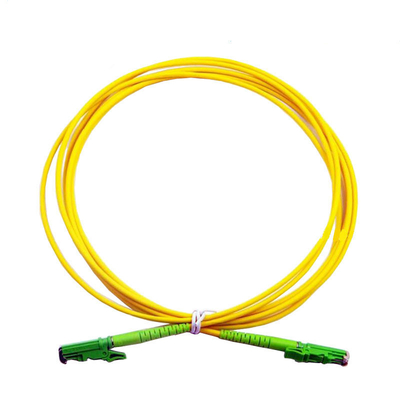

E2000 APC Or UPC Fiber Optic Patch Cord SX 3.0mm, 10meter

E2000 APC Or UPC Fiber Optic Patch Cord SX 3.0mm, 10meter
E2000 APC Or UPC Fiber Optic Patch Cord SX 3.0mm, 10meter
E2000 APC Or UPC Fiber Optic Patch Cord SX 3.0mm, 10meter E2000 APC Or UPC Fiber Optic Patch Cord SX 3.0mm, 10meter E2000 APC Or UPC Fiber Optic Patch Cord SX 3.0mm, 10meter E2000 APC Or UPC Fiber Optic Patch Cord SX 3.0mm, 10meter

Large Image :  E2000 APC Or UPC Fiber Optic Patch Cord SX 3.0mm, 10meter

Product Details:
Place of Origin: Zhejiang, China
Brand Name: DOWELL
Certification: CE
Payment & Shipping Terms:
Minimum Order Quantity: 500 pieces
Delivery Time: 7-15 Days
Payment Terms: T/T, Western Union, Paypal
Contact Now

E2000 APC Or UPC Fiber Optic Patch Cord SX 3.0mm, 10meter

Description
Insertion Loss: <0.3dB Return Loss: ≥ 55 DB (UPC), ≥ 65 DB (APC)
Repeat Ability: 0.2 DB (500 Cycle Passed) Humidity: 95% RH (Non Packaging)
Operating Temp: - 40°C To +75°C Storage Temp: - 40°C To +85°C
Highlight:

lc adsl vdsl tester

,

lc network cable crimping tools

,

pc adsl vdsl tester

E2000 APC Or UPC Fiber Optic Patch Cord SX 3.0mm, 10meter
Fiber optic patchcords and pigtails are components to link equipments and components in fiber optic network. There are many types according to different types of fiber optic connector including FC SV SC LC E2000n MTRJn MPO etc with single mode(9/125um) and multimode(50/125 or 62.5/125). Cable jacket material can be PVC, LSZH; OFNR, OFNP etc. There are simplex, duplex, multi fibers, Ribbon fan out and bundle fiber.
Specification:

Insertion Loss≤ 0.3 dB for SM
≤ 0.4 dB for MM
Return Loss (except MM)≥ 45 dB (PC)
≥ 50 dB (SPC)
≥ 55 dB (UPC)
≥ 65 dB (APC)
Repeat ability0.2 dB (500 Cycle Passed)
Operating Temp Range- 40°C to +75°C
Storage Temp Range- 40°C to +85°C
Humidity95% RH (Non Packaging)

Features:
1.1 Using high precision ceramic ferrule

1.2 Low insertion loss and high return loss

1.3 Excellent stability and high repetition

1.4 100% Optic test (Insertion Loss & Return Loss)

Application:

2.1 Telecommunication Network Fiber Broad Band Network CATV system LAN and WAN system FTTP

E2000 APC Or UPC Fiber Optic Patch Cord SX 3.0mm, 10meter 0

Package:

E2000 APC Or UPC Fiber Optic Patch Cord SX 3.0mm, 10meter 1


Tag:

fibre patch leads,

fiber jumper cables,

multimode patch cable
