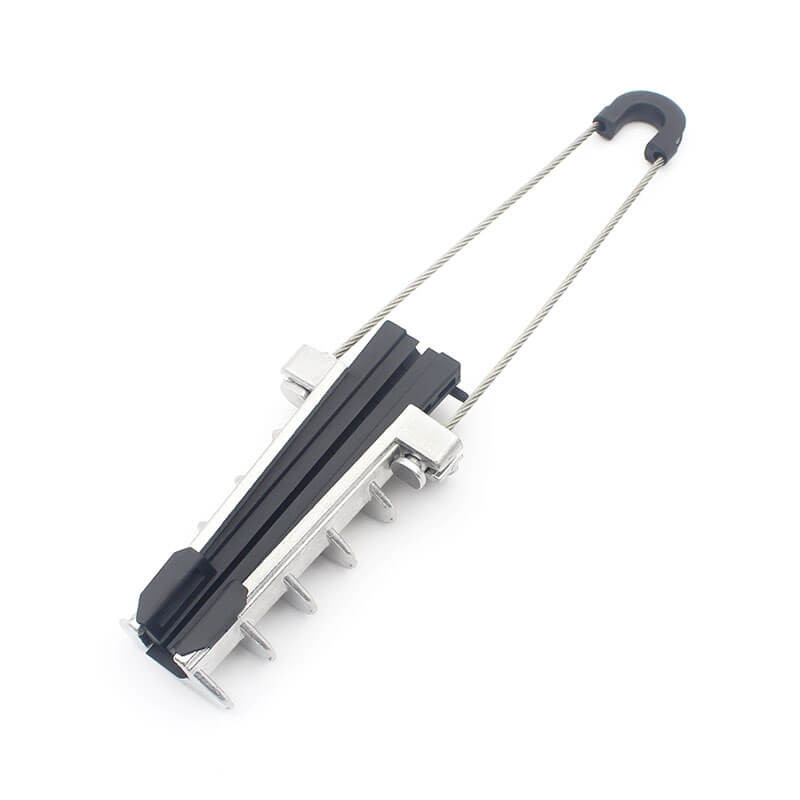

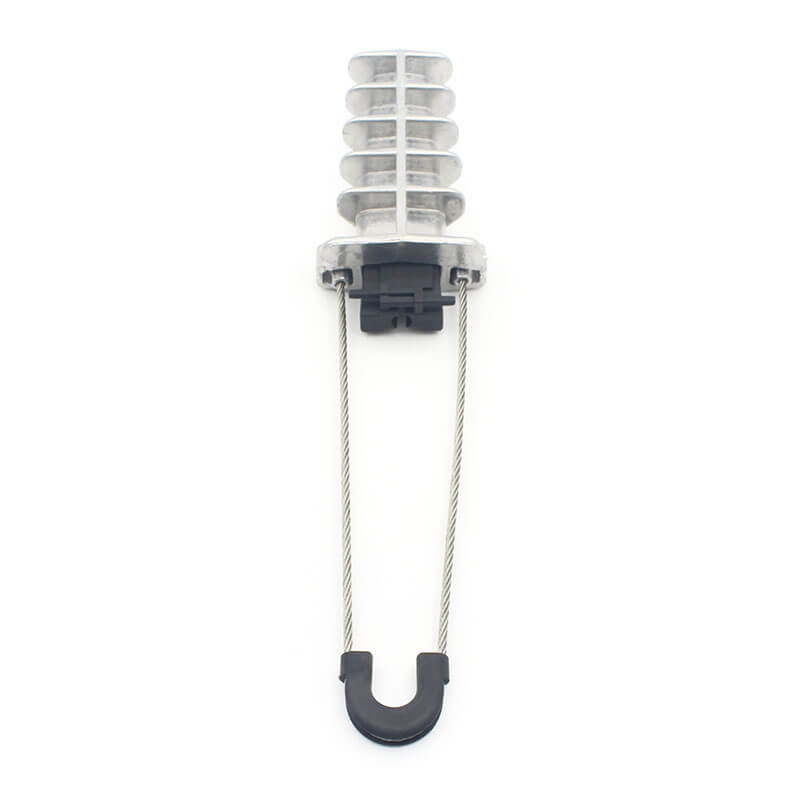

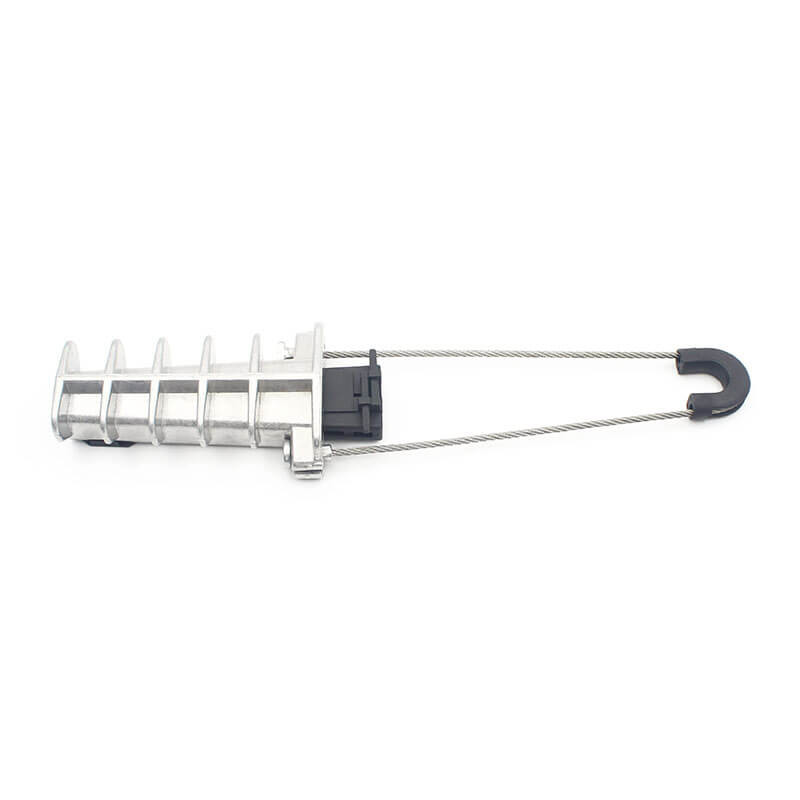

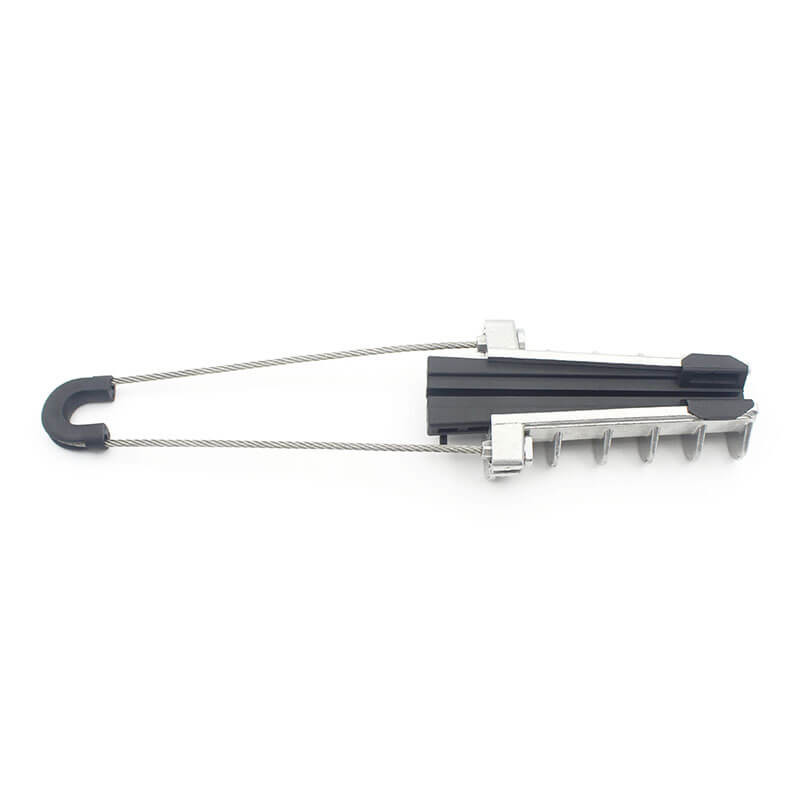

Self-supporting Cable Dead End Tension Clamp For 11-13mm Cable

Self-supporting Cable Dead End Tension Clamp For 11-13mm Cable
Self-supporting Cable Dead End Tension Clamp For 11-13mm Cable
Self-supporting Cable Dead End Tension Clamp For 11-13mm Cable Self-supporting Cable Dead End Tension Clamp For 11-13mm Cable Self-supporting Cable Dead End Tension Clamp For 11-13mm Cable Self-supporting Cable Dead End Tension Clamp For 11-13mm Cable Self-supporting Cable Dead End Tension Clamp For 11-13mm Cable

Large Image :  Self-supporting Cable Dead End Tension Clamp For 11-13mm Cable

Product Details:
Place of Origin: Zhejiang, China
Brand Name: DOWELL
Model Number: PAL1500
Payment & Shipping Terms:
Minimum Order Quantity: 1000 pieces
Packaging Details: Normal Package
Delivery Time: 7-15 Days
Payment Terms: T/T, Western Union, Paypal
Contact Now

Self-supporting Cable Dead End Tension Clamp For 11-13mm Cable

Description
Cable Diameter: 10-13MM Breaking Load: 10KN

Self-supporting Cable Dead End Tension Clamp For 11-13mm Cable

The Dead end clamp also name anchoring clamp is designed to anchor insulated main line with 4 conductors to the Pole, or service lines with 2 or 4 conductors to the pole or wall. Dead end clamp is composed of a body, wedges and removable and adjustable bail or pad. One core Anchor clamps are design to supporting the neutral messenger, the wedge can be self-adjusting. Pilot wires or street lighting conductor are led alongside the clamp. The self opening is featured by an integrate spring facilities for easily insert the conductor into the clamp.
Specification:
Material Aluminum Alloy Nylon (PA66) Weight 0.38kg
Aluminum Alloy
Base Support		 66*110*30mm Steel Wire with 2 Steel Balls O.D.: 4.0mm
L: 520mm
Cable Diameter 10-13mm Breaking Load 10KN

Application:

The anchor clamps are self-adjusting. While installation pulls the clamp upstream to the pole, using special installation tools for optical fiber lines like pulling sock, stringing block, lever hoist to tensile the aerial bundled cable. The measure needed distance from bracket to anchor clamp and start to lose the tension of cable; let the clamp s wedges anchor the cable inside by degrees.
Self-supporting Cable Dead End Tension Clamp For 11-13mm Cable 0
Our Package:
Self-supporting Cable Dead End Tension Clamp For 11-13mm Cable 1
Production Flow:
Self-supporting Cable Dead End Tension Clamp For 11-13mm Cable 2
More Related Products:
Self-supporting Cable Dead End Tension Clamp For 11-13mm Cable 3

Tag:

guy wire dead end,

adss suspension unit,

down lead clamp
