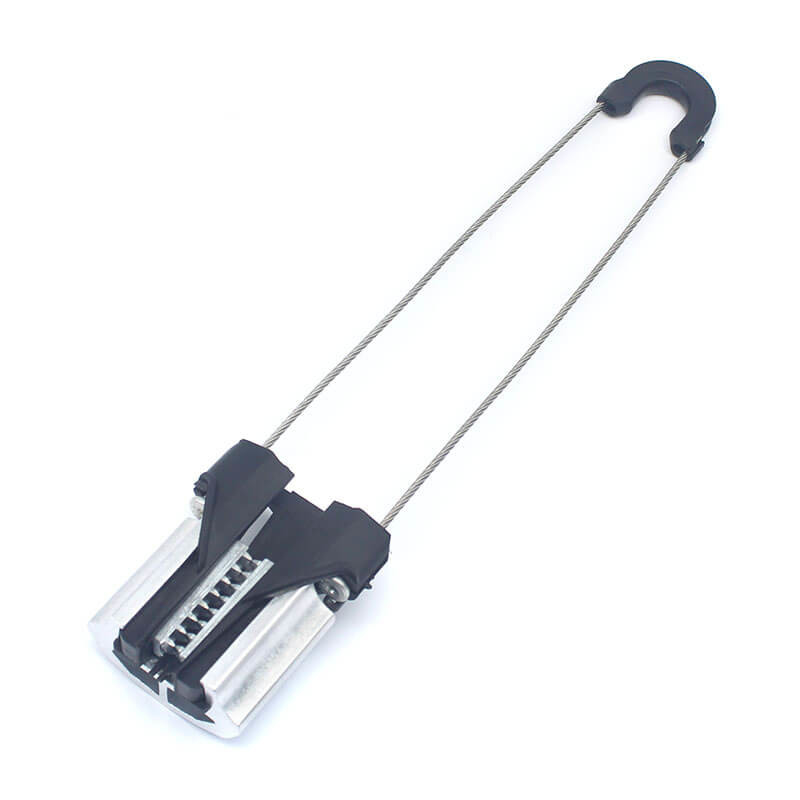

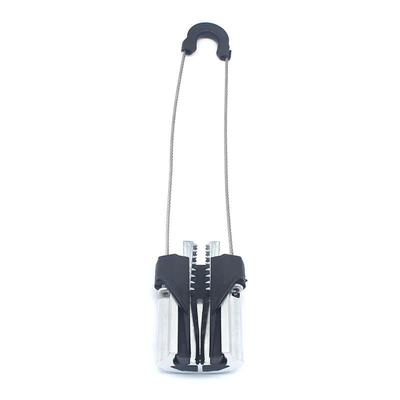

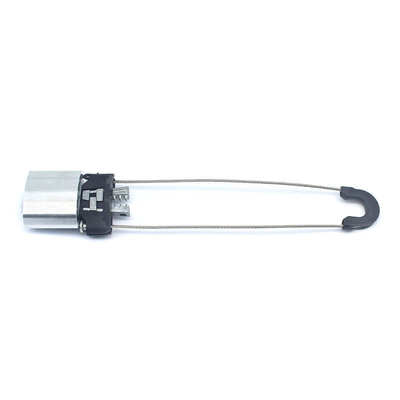

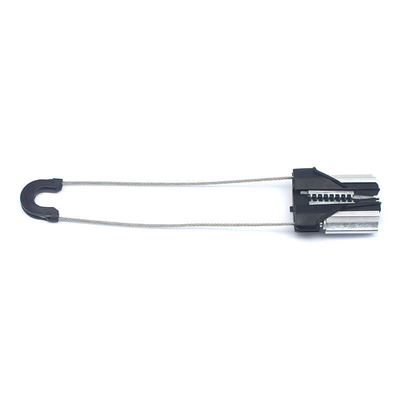

Electrical Accessories Figure-8 Fiber Optic Cable Anchor Clamp

Electrical Accessories Figure-8 Fiber Optic Cable Anchor Clamp
Electrical Accessories Figure-8 Fiber Optic Cable Anchor Clamp
Electrical Accessories Figure-8 Fiber Optic Cable Anchor Clamp Electrical Accessories Figure-8 Fiber Optic Cable Anchor Clamp Electrical Accessories Figure-8 Fiber Optic Cable Anchor Clamp Electrical Accessories Figure-8 Fiber Optic Cable Anchor Clamp Electrical Accessories Figure-8 Fiber Optic Cable Anchor Clamp

Large Image :  Electrical Accessories Figure-8 Fiber Optic Cable Anchor Clamp

Product Details:
Place of Origin: Zhejiang, China
Brand Name: DOWELL
Model Number: PA-07
Payment & Shipping Terms:
Minimum Order Quantity: 1000 pieces
Packaging Details: Normal Package
Delivery Time: 7-15 Days
Payment Terms: T/T, Western Union, Paypal
Supply Ability: 10000 PCS Per 7 Days
Contact Now

Electrical Accessories Figure-8 Fiber Optic Cable Anchor Clamp

Description
Material: 304 Stainless Steel+Nylon Cable Diameter: 3-8mm
MBL: 5 KN Color: Black
Highlight:

stainless steel adss anchor clamp

,

stainless steel adss suspension clamp

Electrical Accessories Figure-8 Fiber Optic Cable Anchor Clamp

PA-07 are designed for fixing and keeping in tension the optical cable with a remote metal power element type 8 on the supports of overhead power lines, communications, urban electrical facilities (street lighting, land electric transport), elements of buildings and structures with a span length of up to 100 meters. The clamp consists of a high-strength polymer housing, steel wedges with teeth, for securing the cable from slipping, stainless steel cable 3–8 mm. It complies with International Standard NFC 33-041.
Specification:
Range of Conductor Size 3-8mm Color of Connector Core Black
Body Material UV Stabilized Thermoplastic
Nylon Fiber Glass Filled,
Aluminium alloy		 Bail Material 304 Stainless Steel
Breaking Load 5 KN Routine Test 1. DimensionalVerification
2. Mechanical Test.
a) Product Break
3. Visual
a) Marking (Printing &
Embossing)
b) Overall finish
c) Packaging Quality

Application:

Fixing and keeping in tension the optical cable with a remote metal power element type 8 on the supports of overhead power lines.

Electrical Accessories Figure-8 Fiber Optic Cable Anchor Clamp 0

Our Package:

Electrical Accessories Figure-8 Fiber Optic Cable Anchor Clamp 1

Production Flow

Electrical Accessories Figure-8 Fiber Optic Cable Anchor Clamp 2

More Related Products:

Electrical Accessories Figure-8 Fiber Optic Cable Anchor Clamp 3

Tag:

guy wire dead end,

adss suspension unit,

down lead clamp
