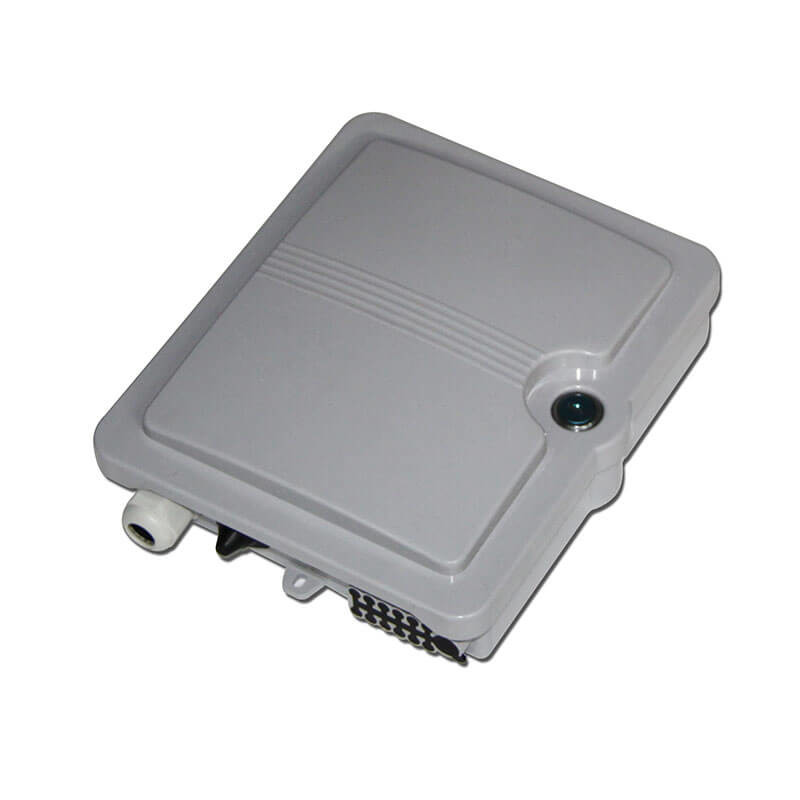

12 Cores Fiber Optic Distribution Box For FTTX Networks Max 12 FTTH Drop Output

FTTX Networks Fiber Optic Distribution Box 12 Cores Drop Output

This Fiber Optic Distribution Box terminates is used for connecting optical cable with various equipments in FTTX optical access network node, could be up to 2 input fiber optic cables and 12 FTTH drop output cable port, offers spaces for 12 fusions, allocates 12 SC adapters and working under both indoor and outdoor environments, it is applied to the second stage splitter point of optical fiber network (PLC could be loaded inside), the material of this box is usually made of PC, ABS, SMC, PC+ABS or SPCC, Optical cable can be connected by fusion or mechanical jointing method after introduction into the box,It is a perfect cost-effective solution-provider in the FTTx networks.

Specification:

Features:

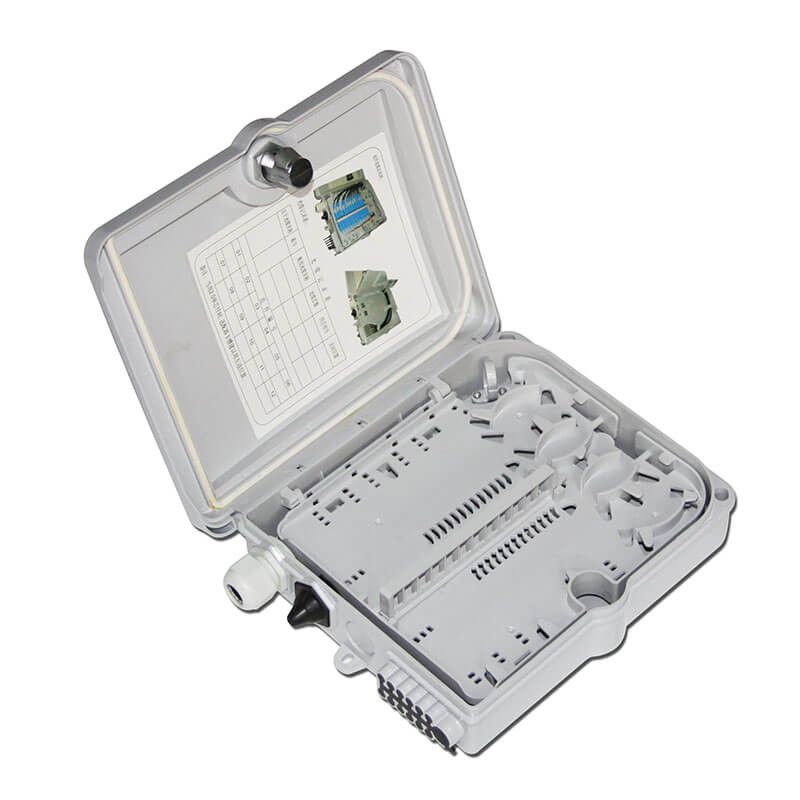

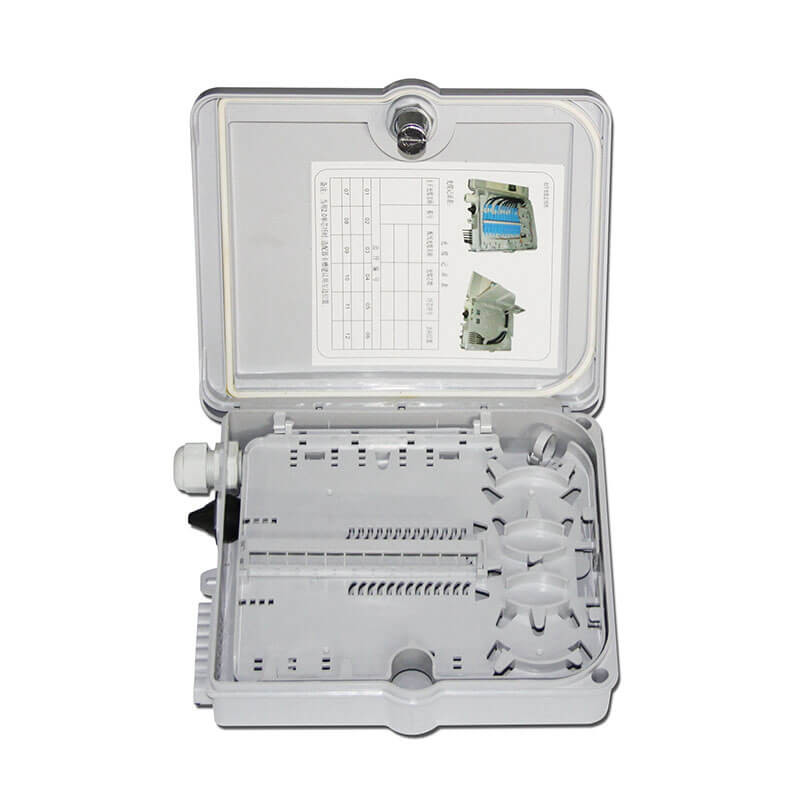

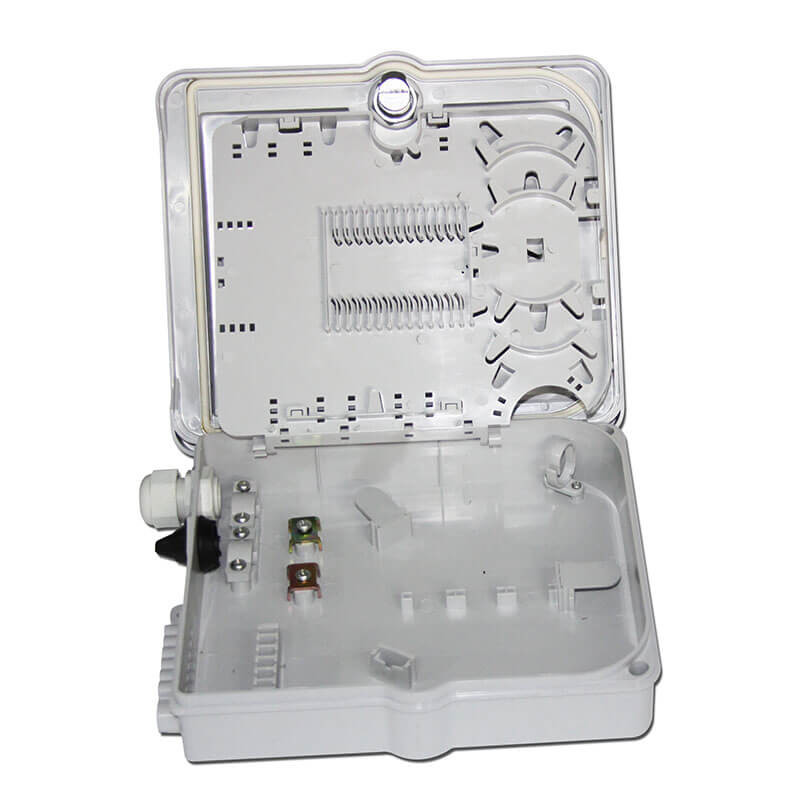

1.1 Fiber Optic Distribution Box is composed by body, splicing tray, splitting module and accessories.

1.2 ABS with PC material used ensures the body strong and light.
1.3 Max allowance for exit cables: up to 2 input fiber optic cables and 12 FTTH drop output cable port, Max allowance for entry cables: max diameter 17mm.
1.4 Water-proof design for outdoor uses.
1.5 Installation method: Outdoor wall-mounted, pole-mounted (installation kits provided.)
1.6 Adapter slots used – No screws and tools needed for installing adapters.

Application:

2.1 Widely used in FTTH access Network
2.2 Telecommunication Network
2.3 CATV Networks
2.4 Data communication Networks
2.5 LANs
