2 Ports FTTH Wall Box Indoor Optical Outlet With SC Simplex LC Duplex Adapters

Large Image : 2 Ports FTTH Wall Box Indoor Optical Outlet With SC Simplex LC Duplex Adapters

Product Details:

Place of Origin:	Zhejiang, China
Brand Name:	DOWELL
Model Number:	DW-1305

Payment & Shipping Terms:

Minimum Order Quantity:	5000 pieces
Delivery Time:	7-15 Days
Payment Terms:	T/T, Western Union, Paypal
Supply Ability:	5000PCS Per 7 Days

Contact Now

2 Ports FTTH Wall Box Indoor Optical Outlet With SC Simplex LC Duplex Adapters

Description

Material:	ABS Or PC	Size:	83.4x130x24.1mm
Number Of Cable:	Up To 4	Pigtail:	G652D Ф0.9mm, 0.5m Or As Per Request
Tensile Strength:	>50 N	Insertion Loss:	≤0.2dB (1310nm & 1550nm)
Highlight:	2 Ports FTTH Wall Box , Duplex FTTH Wall Box , Duplex Indoor Optical Outlet

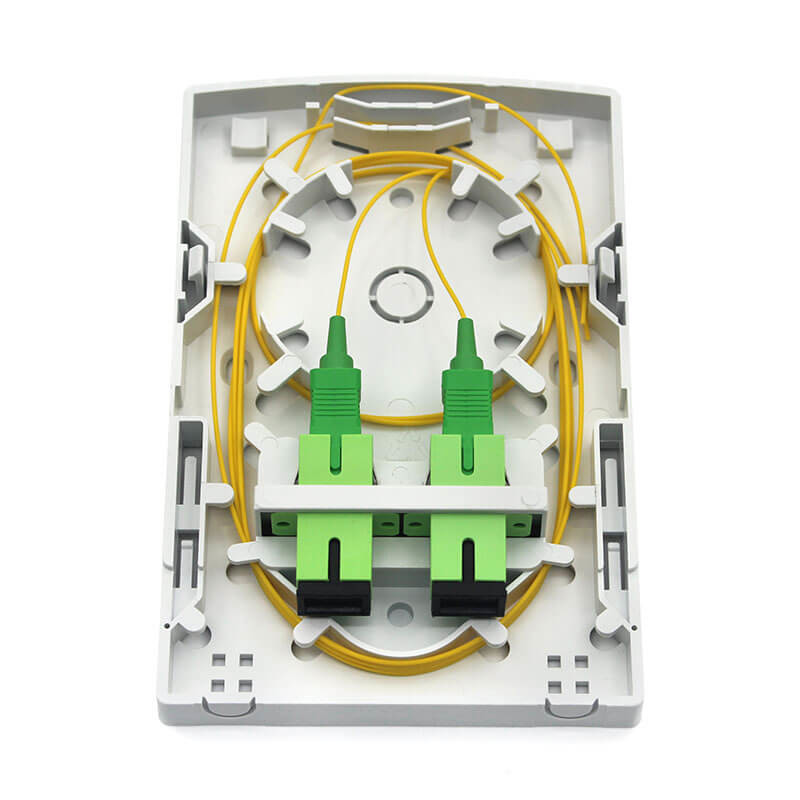

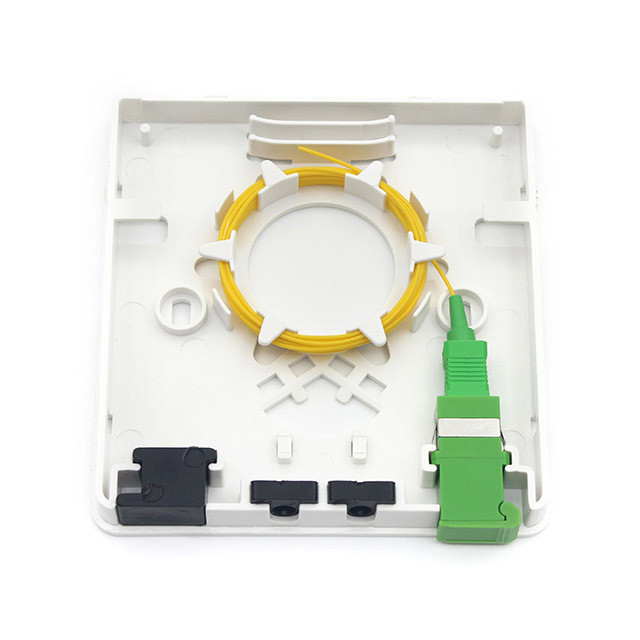

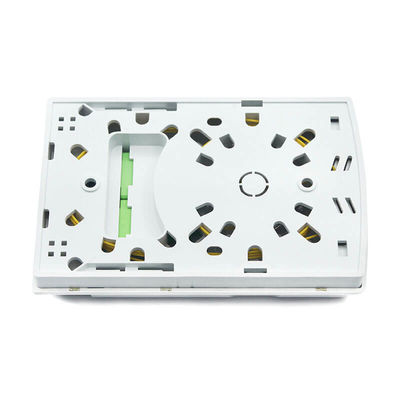

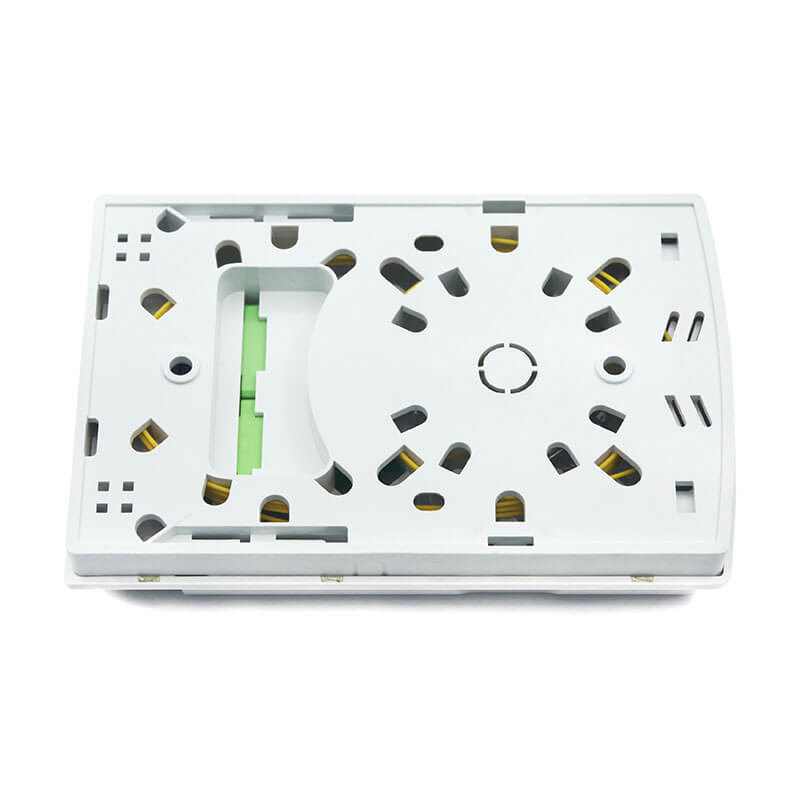

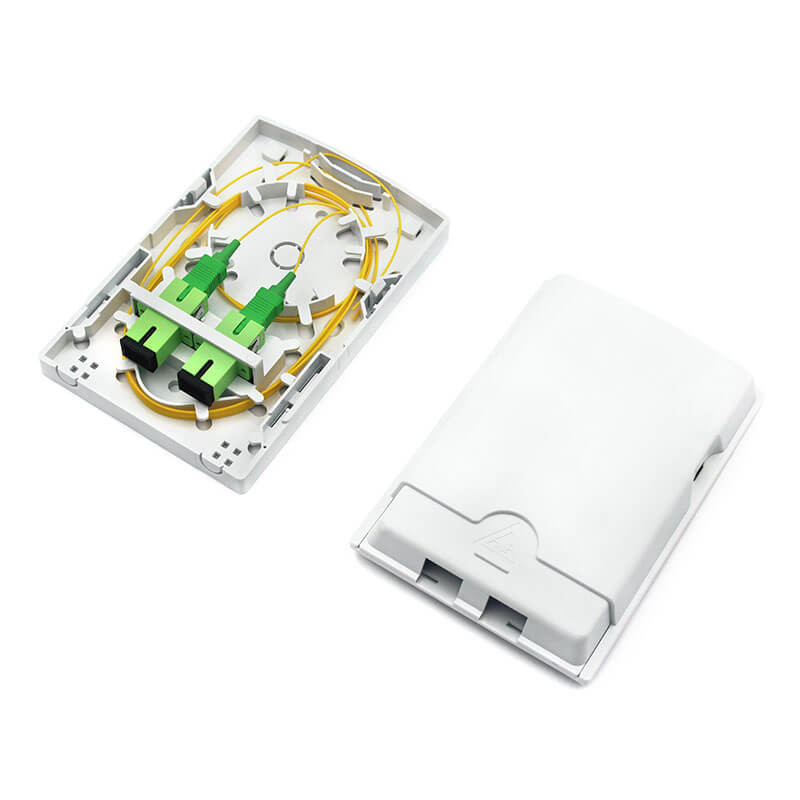

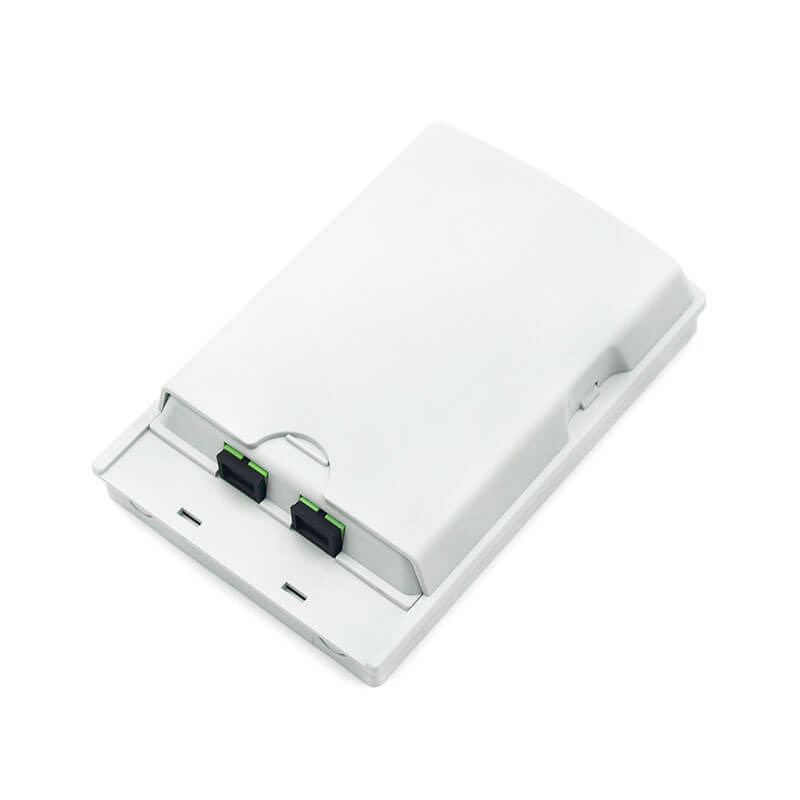

2 Ports Clip-locking FTTH Wall Box With SC Simplex LC Duplex Adapters

Indoor Fiber Distribution Terminal provides Customer Premises Equipment applications with a compact and secure enclosure for connecting fiber cables within building entrance locations, communications closets, and other indoor environments. This mini style distribution box is widely applied in the FTTX network to connect drop cable and ONU devices through fiber port.

Specification:

Material	ABS or PC
Number of Cable	Up to 4
Pigtail	G652D Ф0.9mm, 0.5m or as per request
Size	83.4mm130mm24.1mm

Features:

1.1 With protective doors, dustproof.

1.2 Suitable for many types of modules, used in cabling work area subsystem.

1.3 Embedded type surface, easy for installation and removal.

1.4 Available for fiber optic SC simplex or LC duplex and can be used in both surface mounted installation and concealed panel installation.

1.5 All modules are solderless mode.

Application:

2.1 Optical fiber communication system.

2.2 Fiber optic CATV, FTTH Fiber to the Home.

2.3 Optical fiber access network.

2.4 Testing instruments, fiber optical sensors.

2.5 Fiber optic patch panels, cabinet type or wall-mounted type fiber optic distribution units.
