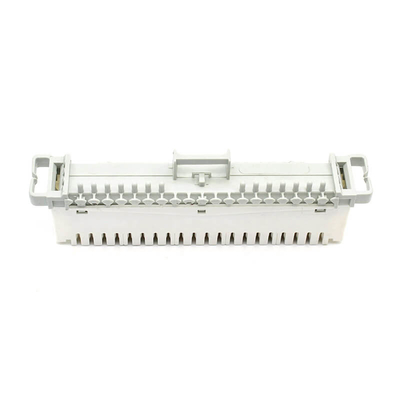

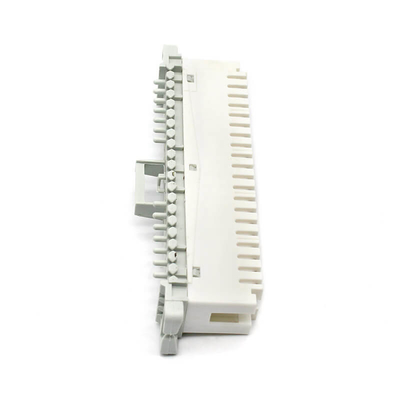

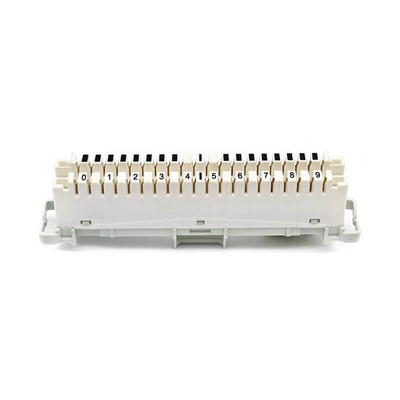

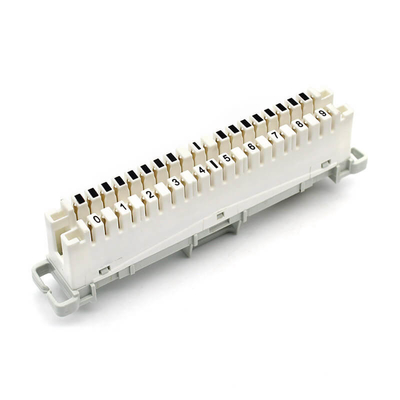

ABS Secure KRONE LSA Module Back Mount 40-75 N Insertion Force

ABS Secure KRONE LSA Module Back Mount 40-75 N Insertion Force
ABS Secure KRONE LSA Module Back Mount 40-75 N Insertion Force
ABS Secure KRONE LSA Module Back Mount 40-75 N Insertion Force ABS Secure KRONE LSA Module Back Mount 40-75 N Insertion Force ABS Secure KRONE LSA Module Back Mount 40-75 N Insertion Force ABS Secure KRONE LSA Module Back Mount 40-75 N Insertion Force ABS Secure KRONE LSA Module Back Mount 40-75 N Insertion Force

Large Image :  ABS Secure KRONE LSA Module Back Mount 40-75 N Insertion Force

Product Details:
Place of Origin: Zhejiang, China
Brand Name: DOWELL
Model Number: DW-6089 1 102-02
Payment & Shipping Terms:
Minimum Order Quantity: 1000 pieces
Delivery Time: 7-15 Days
Payment Terms: T/T, Western Union, Paypal
Supply Ability: 1000 PCS Per 7 Days
Contact Now

ABS Secure KRONE LSA Module Back Mount 40-75 N Insertion Force

Description
Body Material: ABS (UL94V-0) Contact Material: Phosphor Bronze
Insertion Force: 40~75 N Silver Plating: 0.5 Um, 1.25 Um, 5 Um
Highlight:

ABS KRONE LSA Module

,

Secure KRONE LSA Module

,

Secure lsa plus disconnection module

ABS 10-Pair Disconnection KRONE LSA Module Back Mount

The LSA module can be used in any modern network and is fully compatible with all kinds of applications. Wire termination and wire removal are easily opreated with a standard termination tool. The insulation displacement connector is used worldwide to connect and link up cable leads securely in internal and external areas.

Specification:

Housing Material ABS (UL94V-0) Contacts Material Phosphor bronze
Silver Plating 0.5 um, 1.25 um, 5 um Insertion Force 40~75 N
Pull Out Force F≥ 25N (Axial)
F≥ 7.5N (Radial)		 IDC Life 200 times Min.
(20-26 AWG solid wire)

Dimension:

ABS Secure KRONE LSA Module Back Mount 40-75 N Insertion Force 0

Application:

ABS Secure KRONE LSA Module Back Mount 40-75 N Insertion Force 1

Tag:

krone connection module,

10 pair disconnection module,

terminal block module
