FTTH 8 Cores Fiber Optic Distribution Box with Optional Adapters and Pigtails for Wall or Pole Mounting

FTTH 8 Cores Fiber Optic Distribution Box terminates

This Fiber Optic Distribution Box terminates is used for connecting optical cable with various equipments in FTTX optical access network node, could be up to 1 input fiber optic cables and 8 FTTH drop output cable port, offers spaces for 8 fusions, allocates 8 SC adapters and working under both indoor and outdoor environments, it is applied to the second stage splitter point of optical fiber network (PLC could be loaded inside), the material of this box is usually made of PC, ABS, SMC, PC+ABS or SPCC, Optical cable can be connected by fusion or mechanical jointing method after introduction into the box,It is a perfect cost-effective solution-provider in the FTTx networks.

Specification:

Feature:

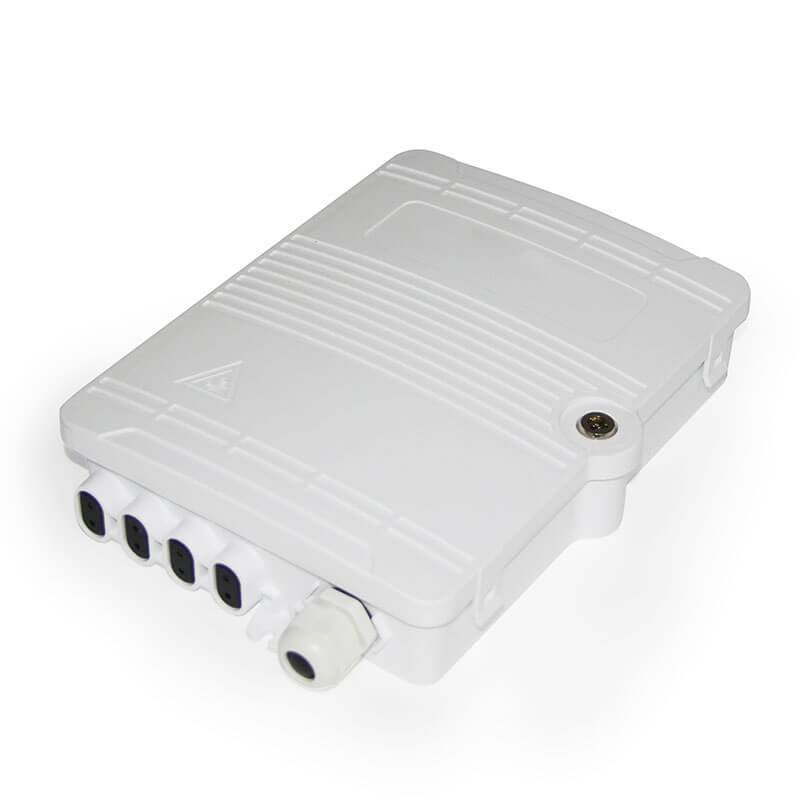

1.1 Installation method: Outdoor wall-mounted, pole-mounted (installation kits provided.)
1.2 Adapter slots used – No screws and tools needed for installing adapters.

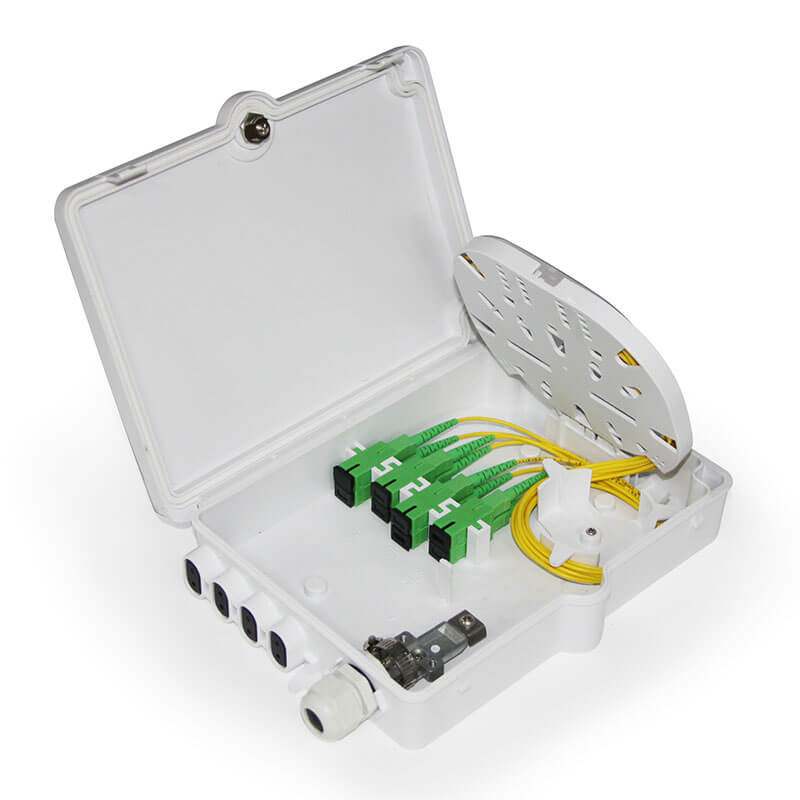

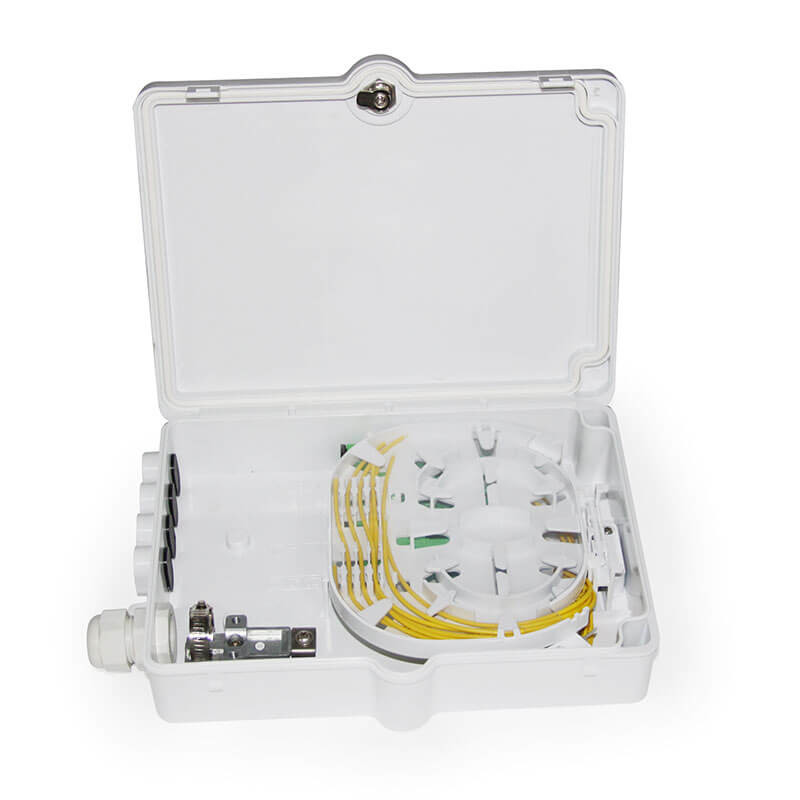

1.3 Space saving: double-layer design for easier installation and maintenance: Upper layer for splitters and distribution or for 8 SC adapters and distribution ; Lower layer for splicing.
1.4 Cable fixing units provided for fixing the outdoor optical cable.
1.5 Protection Level: IP65.

Application:

2.1 Widely used in FTTH access Network
2.2 Telecommunication Network
2.4 Data communication Networks
2.5 LANs
