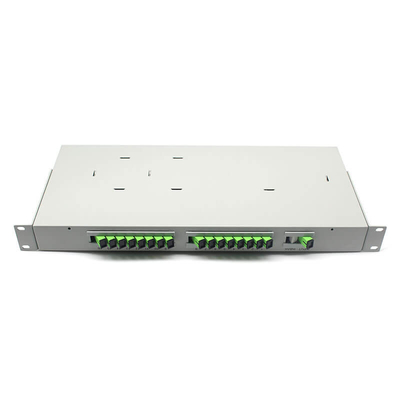

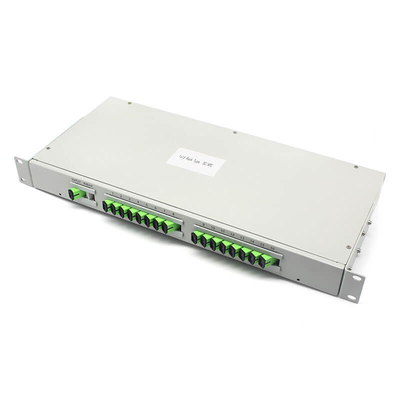

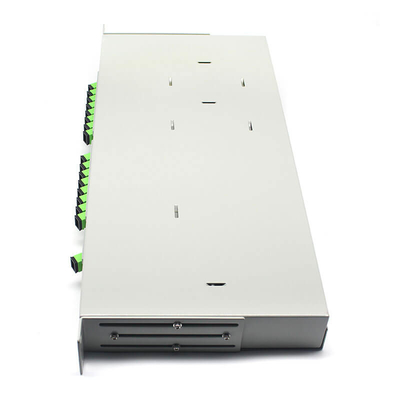

Rack Type 19 Inch 1U 2U Fiber PLC Splitter SM CATV System

Rack Type 19 Inch 1U 2U Fiber PLC Splitter SM CATV System
Rack Type 19 Inch 1U 2U Fiber PLC Splitter SM CATV System Rack Type 19 Inch 1U 2U Fiber PLC Splitter SM CATV System Rack Type 19 Inch 1U 2U Fiber PLC Splitter SM CATV System

Large Image :  Rack Type 19 Inch 1U 2U Fiber PLC Splitter SM CATV System

Product Details:
Place of Origin: Zhejiang, China
Brand Name: DOWELL
Model Number: DW-R1X16
Payment & Shipping Terms:
Minimum Order Quantity: 200 pieces
Delivery Time: 7-15 Days
Payment Terms: T/T, Western Union, Paypal
Supply Ability: 1000 PCS Per 7 Days
Contact Now

Rack Type 19 Inch 1U 2U Fiber PLC Splitter SM CATV System

Description
Fiber: SM，G657A Or Customized Connector: SC、FC
Operating Temp（℃）: -40~85℃ Storage Temp（℃）: -40~85℃
Highlight:

SM Fiber Splitter 1x8

,

SM sc apc splitter

,

1U Fiber Splitter 1x8

19 Inch​ 1U 2U Fiber Optic Rack Type PLC Splitter SM G657A1

Rack type PLC splitter is based on silicon dioxide waveguides, which is available to CATV system and used to connect main equipment and terminal equipment in EPON, BPON and GPON network, and it can distribute the light signal uniformly.

Specification:

Type Requirement
W x H x D(mm) Remark
N:2-N:32 1U,(482±2)mm x(44±0.5)mm x(200±2)mm width of rack without bracket is 433mm,tolerances is ±2mm.
N:64 2U,(482±2)mm x(88±0.5)mm x(200±2)mm

he optical parameter of 1×N(N≥2)PLC Splitter(with connectors)

Parameter 1X2 1x4 1x8 1x16 1x32 1x64
Wavelength(nm) 1260 ～ 1650
IL(dB) ≤4.1 ≤7.4 ≤10.5 ≤13.8 ≤17.1 ≤20.4
Uniformity(dB) ≤0.6 ≤0.7 ≤0.8 ≤1.0 ≤1.5 ≤2.0
RL(dB) ≥50(PC),≥55(APC)
PDL(dB) ≤0.15 ≤0.2 ≤0.2 ≤0.3 ≤0.3 ≤0.3
Directivity(dB) ≥55 ≥55 ≥55 ≥55 ≥55 ≥55
Environment Operating temp(℃) -40~85℃
  Storage temp(℃) -40~85℃
  Humidity ≤95%(+40℃)
  Atmospheric pressure 62~106kPa
Fiber SM,G657A or Customized
Connector SC,FC


The optical parameter of 2×N(N≥2)PLC Splitter(with connectors)

Parameter 2X2 2x4 2x8 2x16 2x32 2x64
Wavelength(nm) 1260 ～ 1650
IL(dB) ≤4.4 ≤7.7 ≤10.8 ≤14.1 ≤17.4 ≤20.7
Uniformity(dB) ≤0.6 ≤0.7 ≤0.8 ≤1.2 ≤1.5 ≤2.0
RL(dB) ≥50(PC),≥55(APC)
PDL(dB) ≤0.2 ≤0.2 ≤0.3 ≤0.3 ≤0.3 ≤0.4
Directivity(dB) ≥55 ≥55 ≥55 ≥55 ≥55 ≥55
Environment Operating temp(℃) -40~85℃
  Storage temp(℃) -40~85℃
  Humidity ≤95%(+40℃)
  Atmospheric pressure 62~106kPa
Fiber SM,G657A or Customized
Connector SC,FC

Dimension

Rack Type 19 Inch 1U 2U Fiber PLC Splitter SM CATV System 0

Application

1. FTTX (FTTP,FTTH,FTTN,FTTC).
2. Passive Optical Network (PON) & CATV System.
3. Telecommunication Network and Fiber Optic Sensors.

Rack Type 19 Inch 1U 2U Fiber PLC Splitter SM CATV System 1
More Types:

Rack Type 19 Inch 1U 2U Fiber PLC Splitter SM CATV System 2

Tag:

1x8 plc splitter,

sc apc splitter,

plc splitter module
