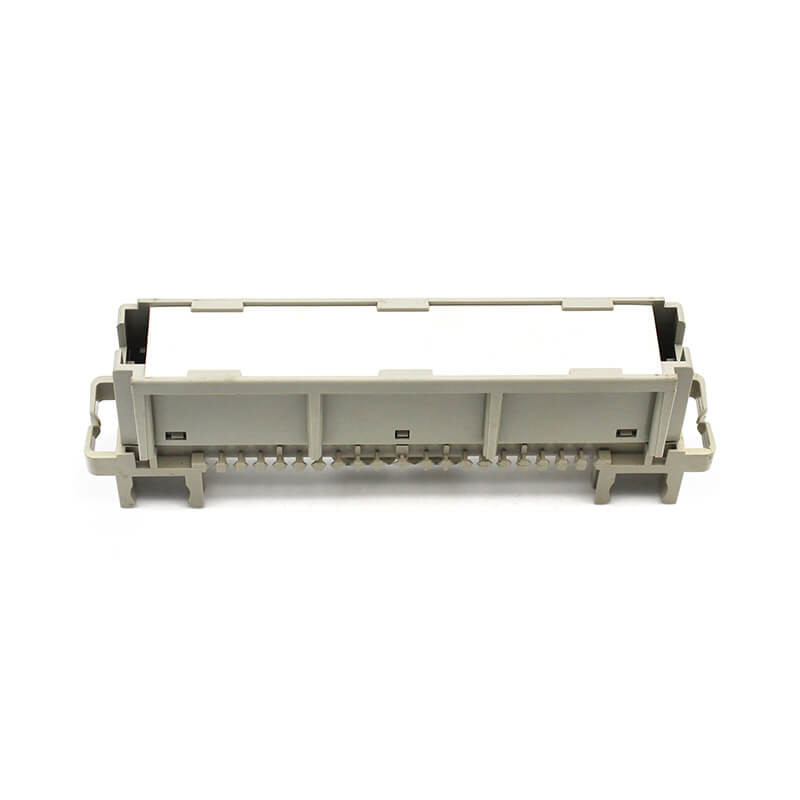

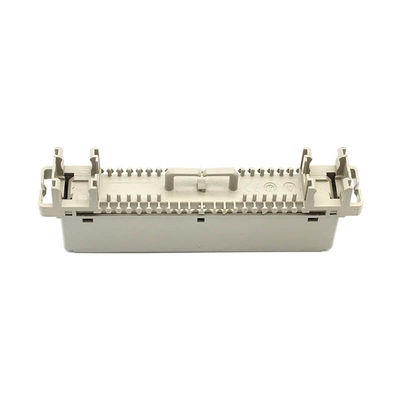

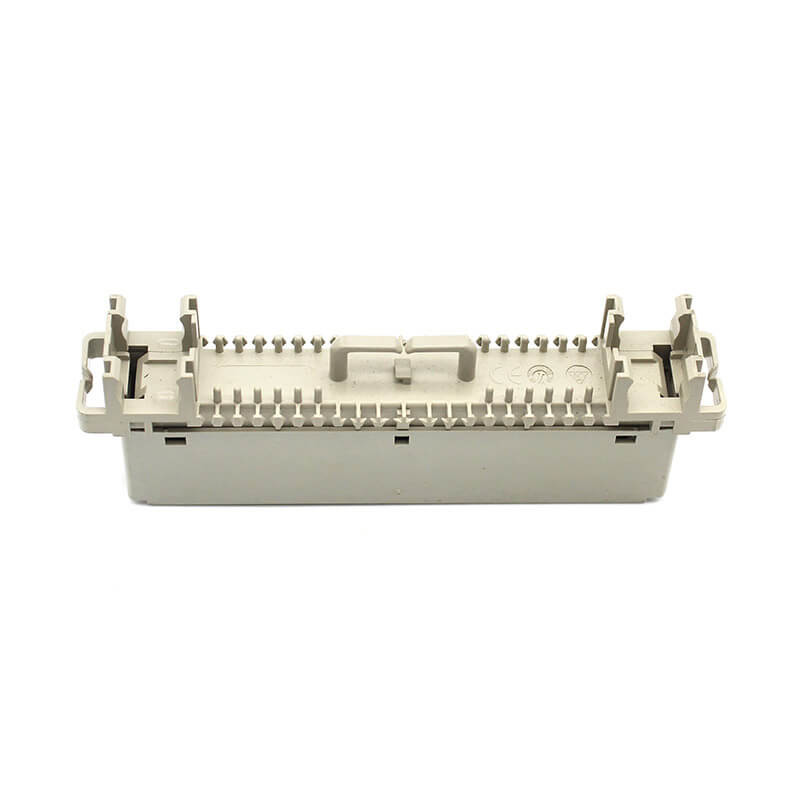

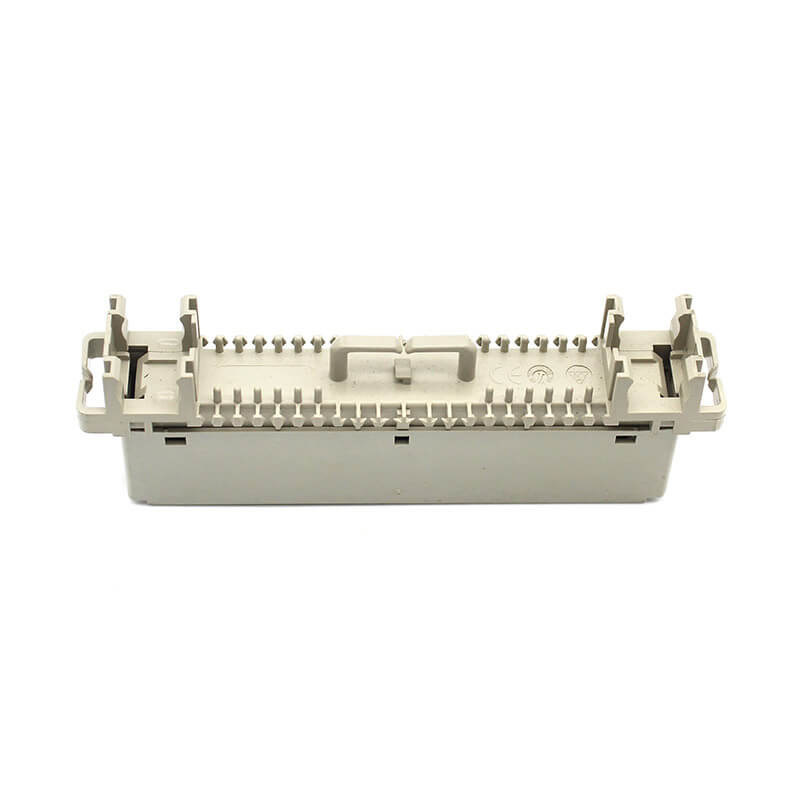

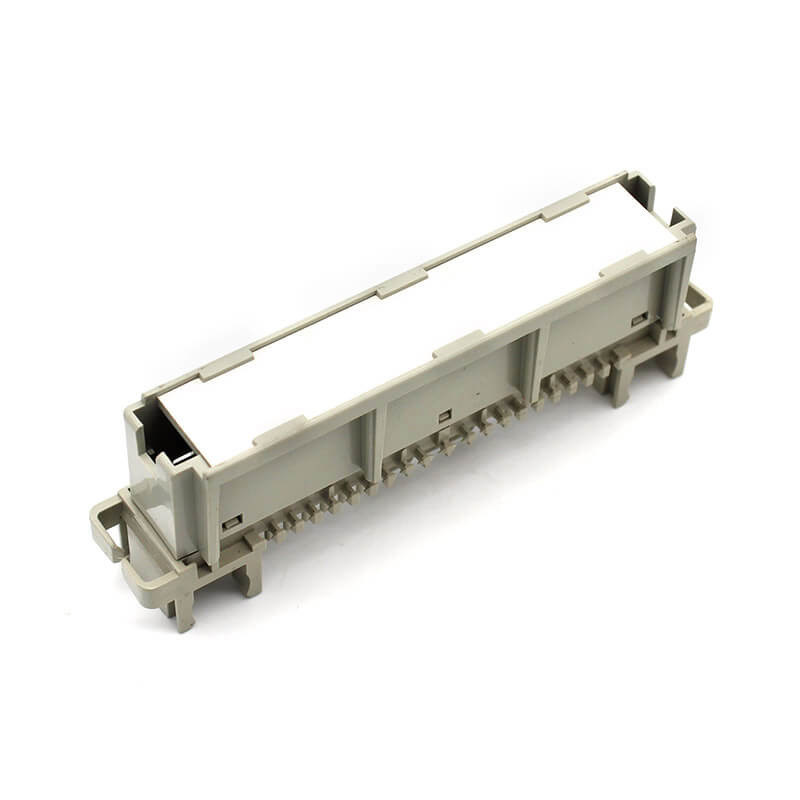

10 Pair Krone Module LSA-PLUS Series Optical IDC Termination Method 26-20 AWG Wire Size

Product Details

Place of Origin: Zhejiang, China

Brand Name: DOWELL

Model Number: DW-6089 1 002-02

Payment & Shipping Terms

Minimum Order Quantity: 1000 pieces

Price: $0.70 - $0.75/pieces

Packaging Details: Normal Package

Supply Ability: 30000 Piece/Pieces per Week

Get Best Price
Highlight:
Type:
KRONE 10-Pair Conection Module
Product Name:
KRONE 10-Pair Conection Module
Number Of Ways:
20
Mounting Type:
Back Mount Frame
Termination:
IDC
Series:
LSA-PLUS
Housing Material:
PBT
Wire Size:
26-20 Or 28-20 AWG
Warranty:
1 Year
Port:
Ningbo
Type:
KRONE 10-Pair Conection Module
Product Name:
KRONE 10-Pair Conection Module
Number Of Ways:
20
Mounting Type:
Back Mount Frame
Termination:
IDC
Series:
LSA-PLUS
Housing Material:
PBT
Wire Size:
26-20 Or 28-20 AWG
Warranty:
1 Year
Port:
Ningbo
10 Pair Krone Module LSA-PLUS Series Optical IDC Termination Method 26-20 AWG Wire Size
10 Pair Krone Module LSA-PLUS Series Optical IDC Termination Method 26-20 AWG Wire Size 0
10 Pair Krone Module LSA-PLUS Series Optical IDC Termination Method 26-20 AWG Wire Size 1
10 Pair Krone Module LSA-PLUS Series Optical IDC Termination Method 26-20 AWG Wire Size 2
10 Pair Krone Module LSA-PLUS Series Optical IDC Termination Method 26-20 AWG Wire Size 3
10 Pair Krone Module LSA-PLUS Series Optical IDC Termination Method 26-20 AWG Wire Size 4
10 Pair Krone Module LSA-PLUS Series Optical IDC Termination Method 26-20 AWG Wire Size 5
Termination Method:
IDC
Contact Plating:
Silver
Contact Material:
Bronze
Housing Material:
PBT
Wire Size:
26-20 or 28-20 AWG
Operating Temperature:
-20°C ~ +80°C
Series:
LSA-PLUS
Technical Specifications
Thread dimensions:
Rigid thread a): Ø 0.4-0.8 mm b)
Isolation: Ø 0.7-1.5 mm, PVC and PE
No. of threads per contact:
2 max. (with identical dimensions) c)
Insulation resistance:
≥ 5X10ˆ4 MΩ
Test voltage:
≥ 2kV
Surge voltages:
As VDE 0433
Contact resistance:
Typical 1 mΩ
Constant current:
Determined by the thread max.
allowed current
10 Pair Krone Module LSA-PLUS Series Optical IDC Termination Method 26-20 AWG Wire Size 6
10 Pair Krone Module LSA-PLUS Series Optical IDC Termination Method 26-20 AWG Wire Size 7
10 Pair Krone Module LSA-PLUS Series Optical IDC Termination Method 26-20 AWG Wire Size 8
10 Pair Krone Module LSA-PLUS Series Optical IDC Termination Method 26-20 AWG Wire Size 9
10 Pair Krone Module LSA-PLUS Series Optical IDC Termination Method 26-20 AWG Wire Size 10
10 Pair Krone Module LSA-PLUS Series Optical IDC Termination Method 26-20 AWG Wire Size 11
10 Pair Krone Module LSA-PLUS Series Optical IDC Termination Method 26-20 AWG Wire Size 12
