Black 2 Wires Insulating Dead End Clamp Wedeg Shaped

Black 2 Wires Insulating Dead End Clamp Wedeg Shaped
Black 2 Wires Insulating Dead End Clamp Wedeg Shaped Black 2 Wires Insulating Dead End Clamp Wedeg Shaped Black 2 Wires Insulating Dead End Clamp Wedeg Shaped Black 2 Wires Insulating Dead End Clamp Wedeg Shaped

Large Image :  Black 2 Wires Insulating Dead End Clamp Wedeg Shaped

Product Details:
Place of Origin: Zhejiang, China
Brand Name: DOWELL
Model Number: DW-2-25
Payment & Shipping Terms:
Minimum Order Quantity: 1000 pieces
Packaging Details: Normal Package
Delivery Time: 7-15 Days
Payment Terms: T/T, Western Union, Paypal
Supply Ability: 10000 PCS Per 7 Days

Black 2 Wires Insulating Dead End Clamp Wedeg Shaped

Description
Size: 220.5 X 75 X 27mm Weight: 108g
Color: Black Breaking Load: 2kN

Black 2 Wires Insulating Dead End Clamp Wedeg Shaped

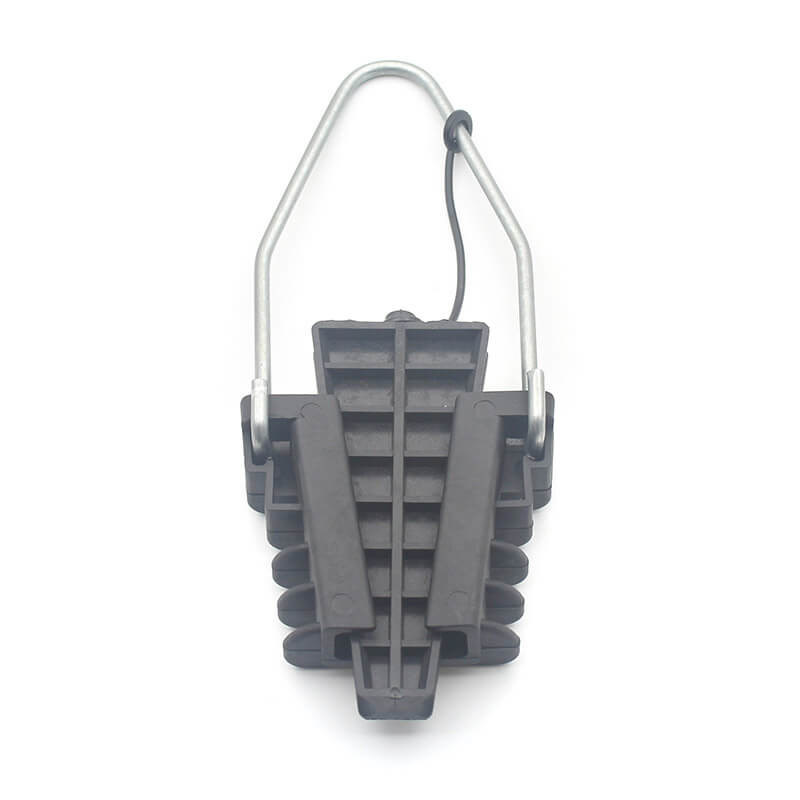

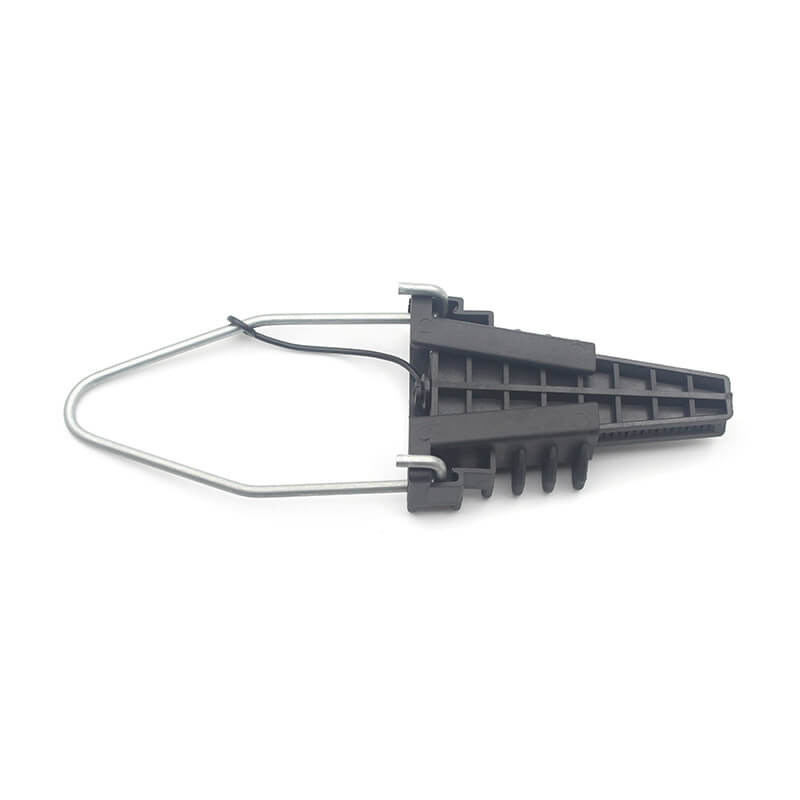

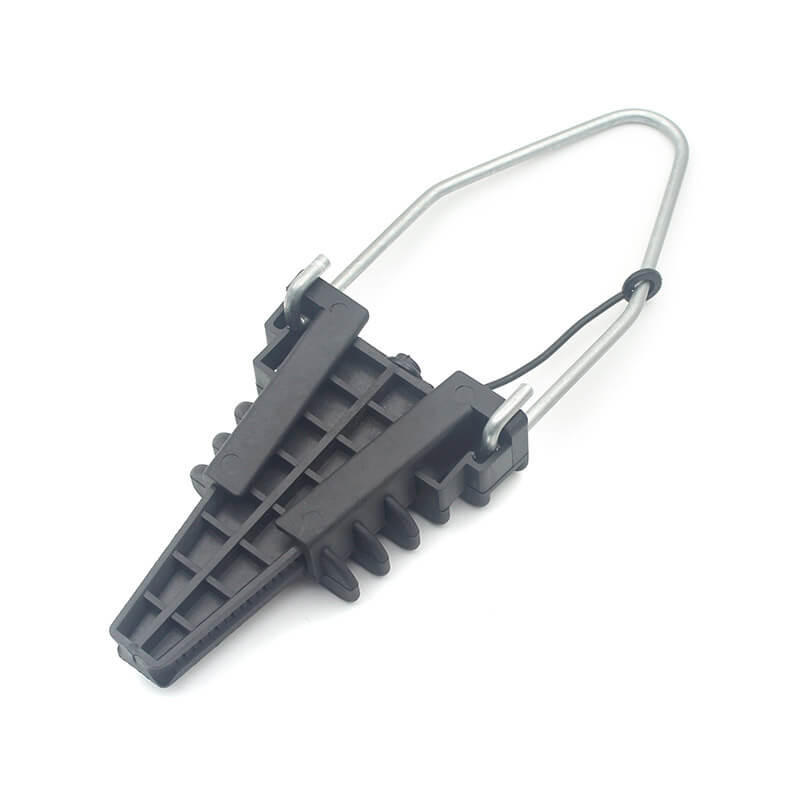

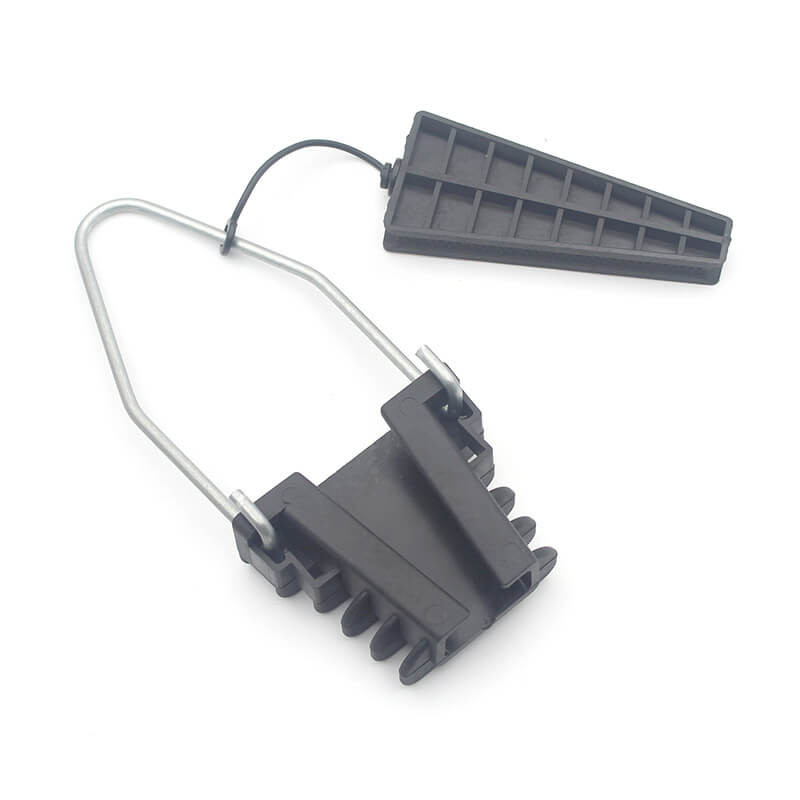

The anchoring clamp is designed to anchor LV ABC lines with insulated neutral messenger. The flexible bail is equipped with a movable insulating saddle and the two sleeves are compressed on the ends and locked on the clamp body. A pair of wedges grips the cable automatically within the conical body. The installation does not require any specific tools and the operating time is drastically reduced.

Specification:

Body and Wedge Material Weather and UV
resistance thermoplastic
Bail Material Galvanized steel or stainless steel
Conductor Range 16-25mm² Breaking Load 2kN
Impulse Withstand Voltage 6kV/min Color Black
Size 220.5 x 75 x 27mm Weight 108g

Application:

Black 2 Wires Insulating Dead End Clamp Wedeg Shaped 0

Dimension:

Black 2 Wires Insulating Dead End Clamp Wedeg Shaped 1

Our Package:

Black 2 Wires Insulating Dead End Clamp Wedeg Shaped 2

Production Flow:

Black 2 Wires Insulating Dead End Clamp Wedeg Shaped 3
