Fiber Optic 10-15mm J-hook suspension clamp

Fiber Optic 10-15mm J-hook suspension clamp
Fiber Optic 10-15mm J-hook suspension clamp Fiber Optic 10-15mm J-hook suspension clamp Fiber Optic 10-15mm J-hook suspension clamp Fiber Optic 10-15mm J-hook suspension clamp

Large Image :  Fiber Optic 10-15mm J-hook suspension clamp

Product Details:
Place of Origin: Zhejiang, China
Brand Name: DOWELL
Model Number: DW-1095-3
Payment & Shipping Terms:
Minimum Order Quantity: 500 pieces
Packaging Details: Normal Package
Delivery Time: 7-15 Days
Payment Terms: T/T, Western Union, Paypal
Supply Ability: 10000 PCS Per 7 Days
Contact Now

Fiber Optic 10-15mm J-hook suspension clamp

Description
Material: Hot Dip Galvanised Steel Breaking Load: 5000N
Weight: 0.8 Kg Packing: 20 Pcs/carton

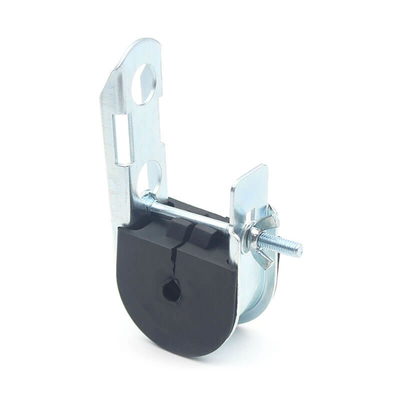

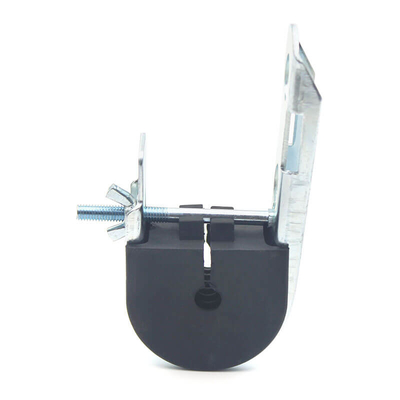

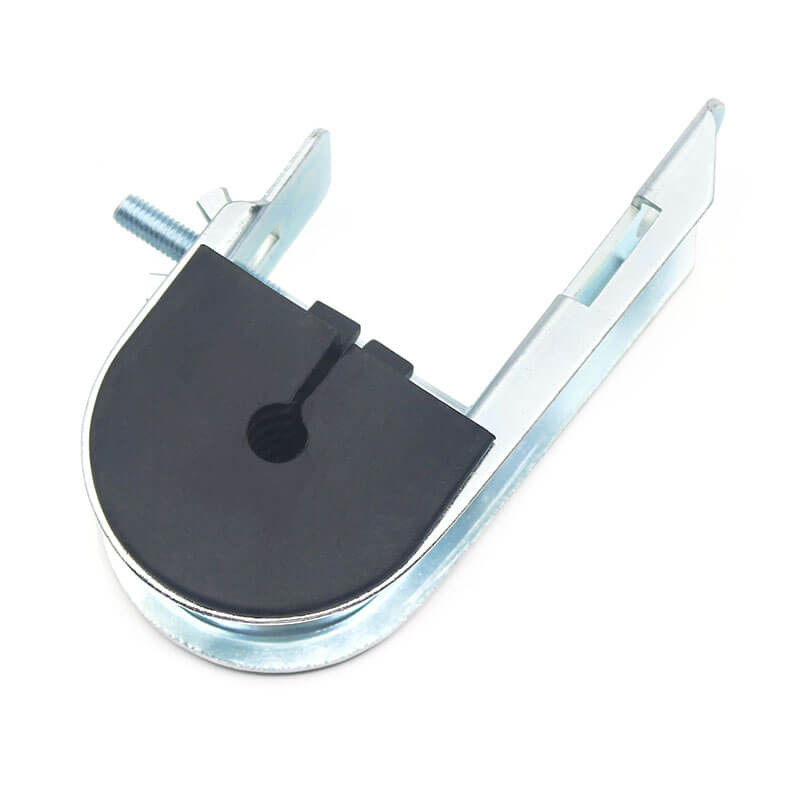

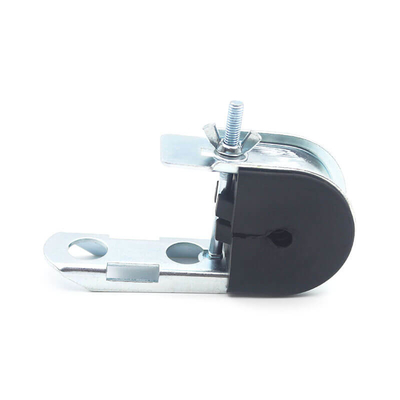

Fiber Optic J-hook Suspension Clamp

The heavy-duty suspension clamp is a versatile, and reliable solution for securing and suspending ADSS cable up to 100 meters. The versatility of the clamp allows the installer to either fix the clamp to the pole using a through bolt or band.
Specification:
Part Number Cable diameter(mm) Break Load(KN)
DW-1095-1 5-8 4
DW-1095-2 8-12 4
DW-1095-3 10-15 4
DW-1095-4 12-20 4
Features:
1.1 Galvanized steel clamp
1.2 UV resistant neoprene sleeve insert
1.3 For suspension spans up to 150 meters
1.4 Versatile with multiple installation options
1.5 No special tools needed

Application:

Fiber Optic 10-15mm J-hook suspension clamp 0

Our Package:

Fiber Optic 10-15mm J-hook suspension clamp 1

Production Flow:

Fiber Optic 10-15mm J-hook suspension clamp 2

More Sizes:

Fiber Optic 10-15mm J-hook suspension clamp 3

Tag:

guy wire dead end,

adss suspension unit,

down lead clamp
