Fiber Optic 10-15mm J-hook suspension clamp

Basic Information

Place of Origin:	Zhejiang, China
Brand Name:	DOWELL
Model Number:	DW-1095-3

Minimum Order Quantity:	500 pieces
Packaging Details:	Normal Package
Delivery Time:	7-15 Days
Payment Terms:	T/T, Western Union, Paypal
Supply Ability:	10000 PCS Per 7 Days

Get Best Price Contact Now

Detail Information

Material:	Hot Dip Galvanised Steel	Breaking Load:	5000N
Weight:	0.8 Kg	Packing:	20 Pcs/carton

Product Description

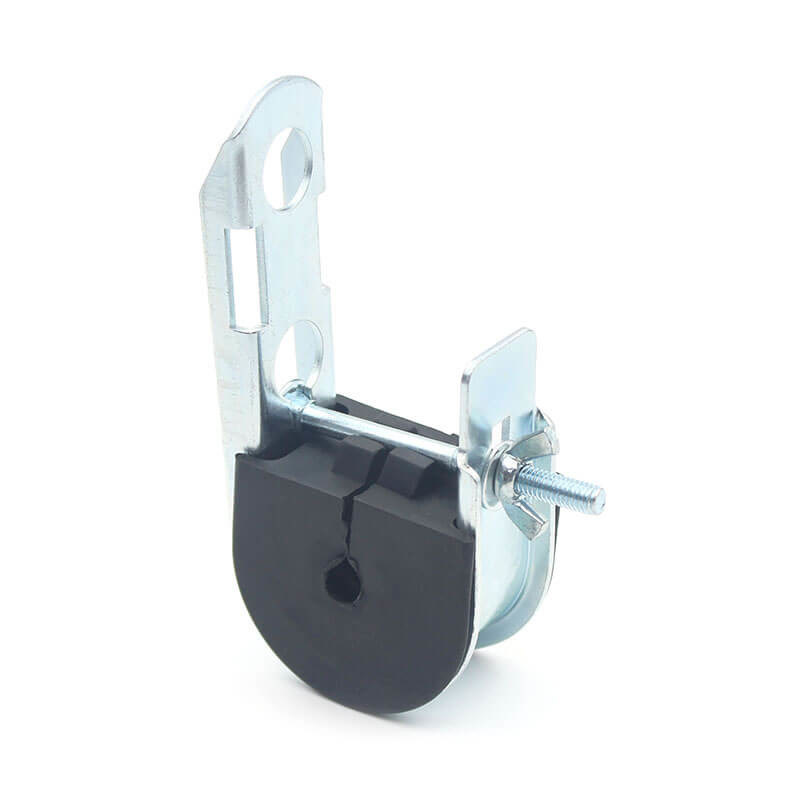

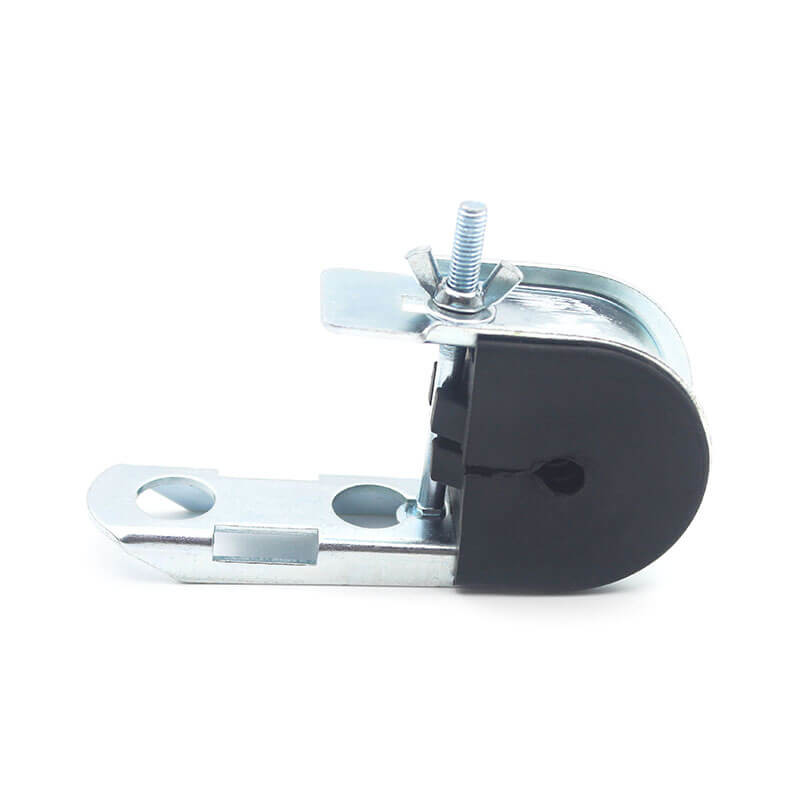

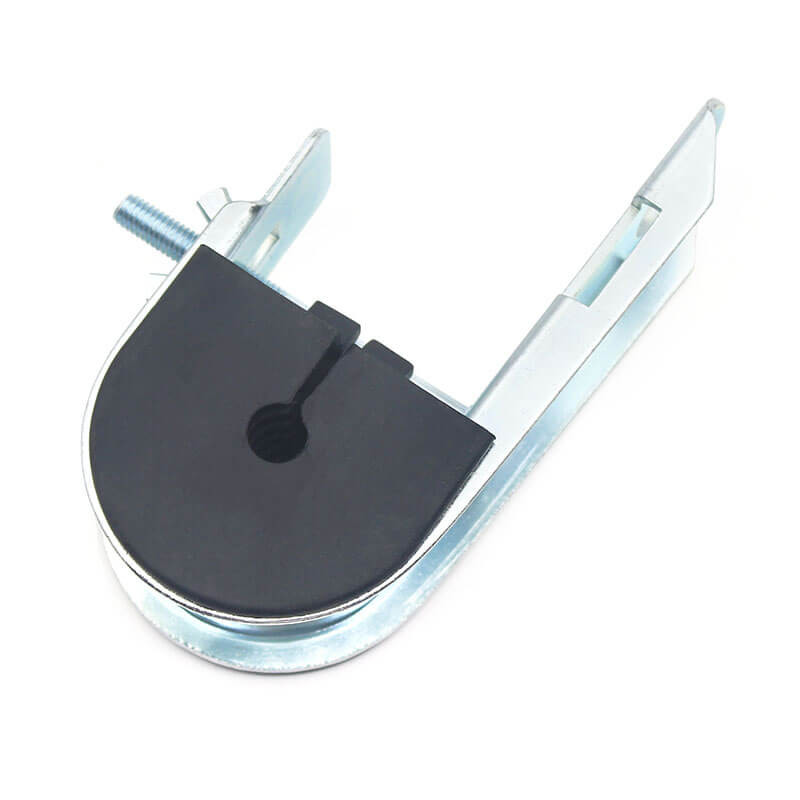

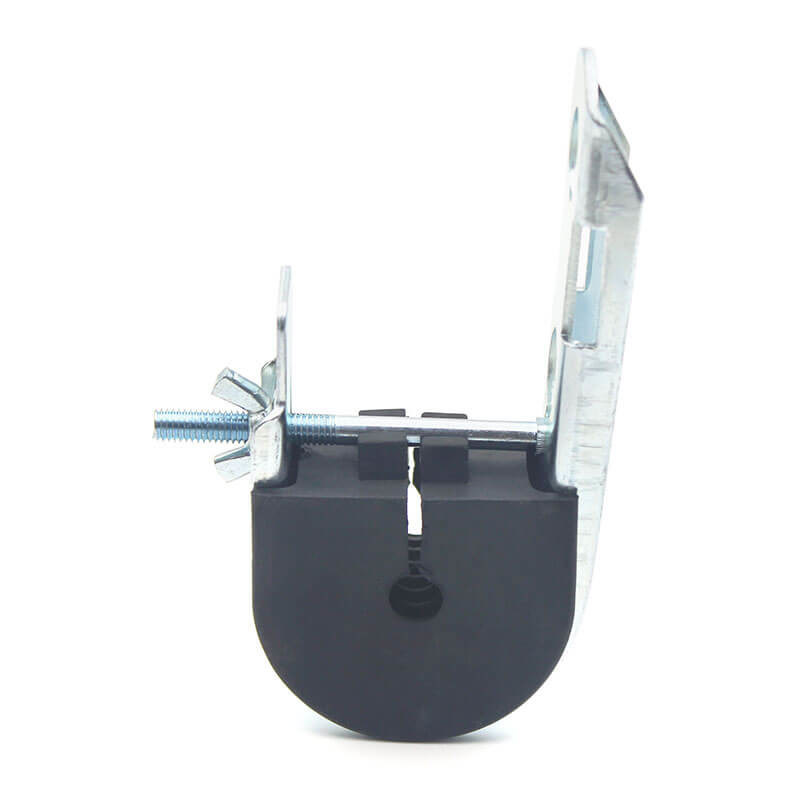

Fiber Optic J-hook Suspension Clamp

The heavy-duty suspension clamp is a versatile, and reliable solution for securing and suspending ADSS cable up to 100 meters. The versatility of the clamp allows the installer to either fix the clamp to the pole using a through bolt or band.

Specification:

Part Number	Cable diameter(mm)	Break Load(KN)
DW-1095-1	5-8	4
DW-1095-2	8-12	4
DW-1095-3	10-15	4
DW-1095-4	12-20	4

Features:

1.1 Galvanized steel clamp

1.2 UV resistant neoprene sleeve insert

1.3 For suspension spans up to 150 meters

1.4 Versatile with multiple installation options

1.5 No special tools needed

Application:

Our Package:

Production Flow:

More Sizes:
