Product Details:
|
Insertion Loss: | ≤0.3dB | Return Loss: | ≥50dB |
---|---|---|---|
Mode Type: | SM/MM | Connection Times: | >1000 |
Operating Temperature: | -40 C- +75 ℃ | Storage Temperature: | -40 ℃~+85 ℃ |
Highlight: | sm adsl vdsl tester,sm network cable crimping tools,lc adsl vdsl tester |

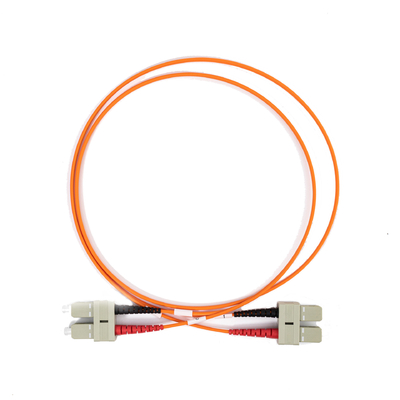

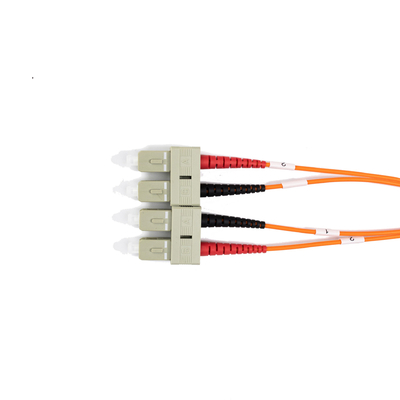

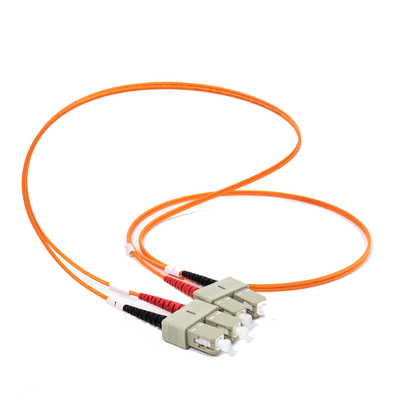

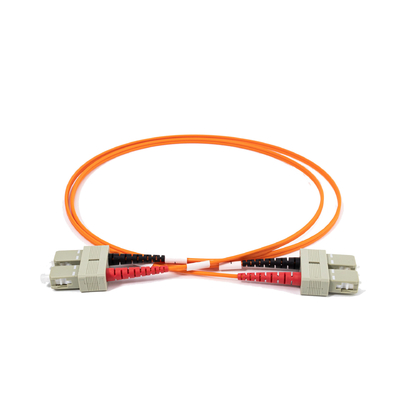

2.0mm Multimode Fiber Optic Patch Cables Duplex SC UPC To SC UPC 10meter
Fiber Optic Patchcords are components to link equipments and components in fiber optic network. There are many types according to different types of fiber optic connector including FC SV SC LC ST E2000N MTRJN MPO etc. with single mode(9/125um) and multimode (50/125 or 62.5/125). Cable jacket material can be PVC, LSZH; OFNR, OFNP etc. There are simplex, duplex, multi fibers, Ribbon fan out and bundle fiber.
Specification:
Parameter | Unit | Mode | PC | UPC | APC |
Type | |||||
Insertion Loss | dB | SM | <0.3 | <0.3 | <0.3 |
MM | <0.3 | <0.3 | |||
Return Loss | dB | SM | >50 | >50 | >60 |
MM | >35 | >35 | |||
Repeatability | dB | Additional loss<0.1db, return loss< 5 dB | |||
Interchangeability | dB | Additional loss<0.1db, return loss< 5 dB | |||
Connection Times | times | >1000 | |||
Operating Temperature | °C | -40 C- +75 C | |||
Storage Temperature | °C | -40 C- +85 C |
Features:
1.1 Using high precision ceramic ferrule
1.2 Low insertion loss and high return loss
1.3 Excellent stability and high repetition
1.4 100% Optic test (Insertion Loss & Return Loss)
Application:
2.1 Telecommunication Network
2.2 Fiber Broad Band Network
2.3 CATV system
2.4 LAN and WAN system
2.5 FTTP
Package:
