12 Ports Mini SC Optical Fiber Termination Box Flip-up cover For FTTx FTTA System

12 Ports Mini SC Optical Fiber Termination Box Flip-up cover For FTTx FTTA System
12 Ports Mini SC Optical Fiber Termination Box Flip-up cover For FTTx FTTA System
12 Ports Mini SC Optical Fiber Termination Box Flip-up cover For FTTx FTTA System 12 Ports Mini SC Optical Fiber Termination Box Flip-up cover For FTTx FTTA System 12 Ports Mini SC Optical Fiber Termination Box Flip-up cover For FTTx FTTA System 12 Ports Mini SC Optical Fiber Termination Box Flip-up cover For FTTx FTTA System 12 Ports Mini SC Optical Fiber Termination Box Flip-up cover For FTTx FTTA System

Large Image :  12 Ports Mini SC Optical Fiber Termination Box Flip-up cover For FTTx FTTA System

Product Details:
Place of Origin: Zhejiang, China
Brand Name: DOWELL
Model Number: DW-1244
Payment & Shipping Terms:
Minimum Order Quantity: 500 pieces
Delivery Time: 7-15 Days
Payment Terms: T/T, Western Union, Paypal
Supply Ability: 500 PCS Per 7 Days
Contact Now

12 Ports Mini SC Optical Fiber Termination Box Flip-up cover For FTTx FTTA System

Description
Material: PC+ABS Or ABS Capacity: 12 Ports
Adapter Type: SC Color: Black/Gray On Or Request
IP Grade: IP65 Weight: 0.57kg
Highlight:

fttx fiber optic terminal box

,

fttx fiber optic distribution box

,

abs fiber optic terminal box

FTTx FTTA System 12 Ports Mini SC Fiber Optic Box Flip-up cover

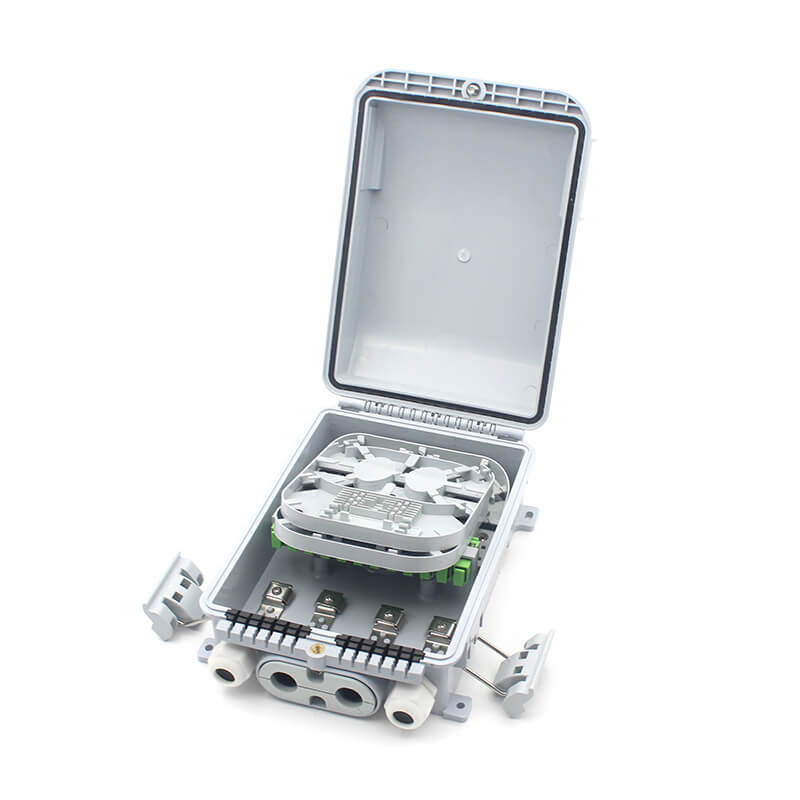

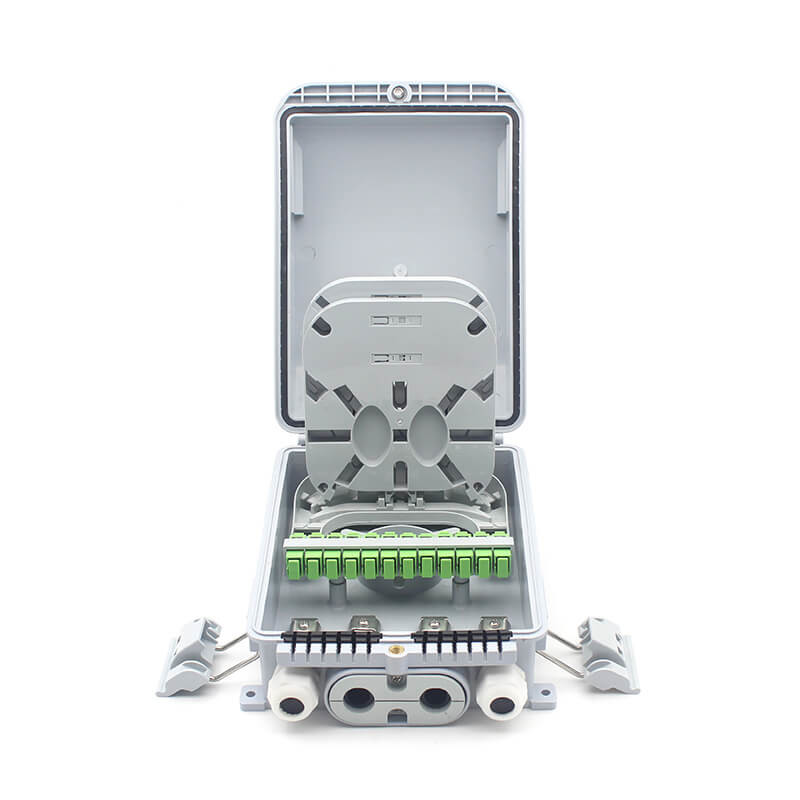

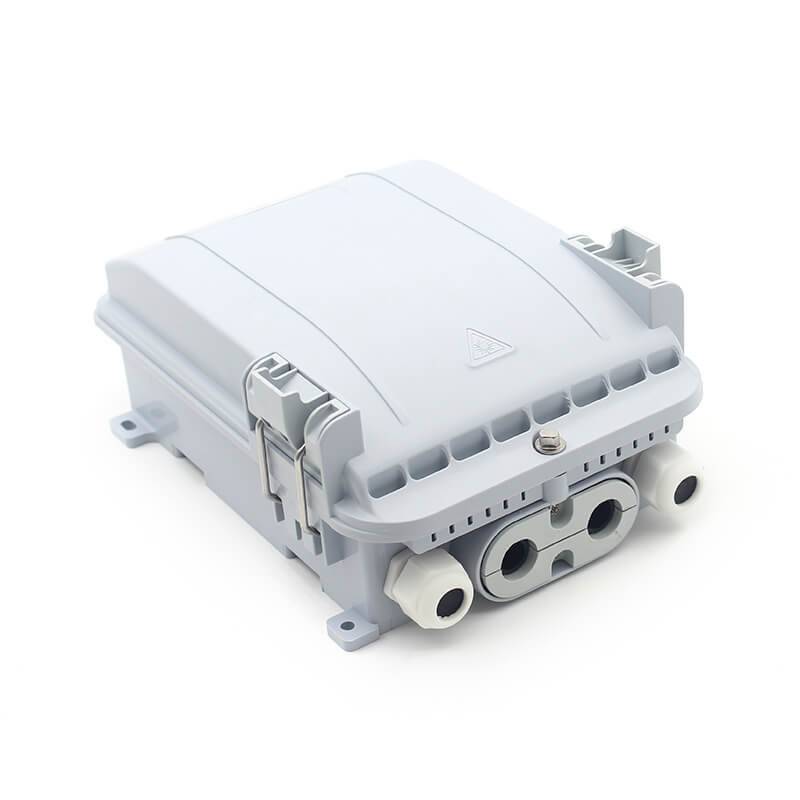

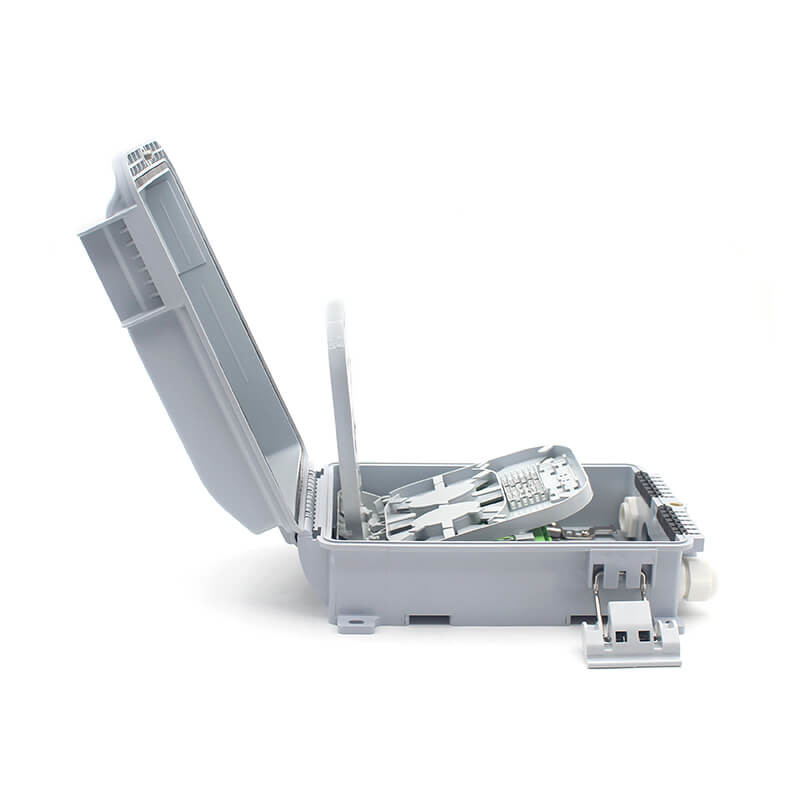

Dowell external Fiber optic terminal box 12F, small size and fast connection design. it is used as a termination point for the feeder cable to connect with the drop cable in the FTTx/FTTA communication network system. The fiber splicing and termination can be done in this box, Flip-up cover design with IP65 protection.
Specification:
Installation Method Wall Mounted/Pole Mounted
Color Black/Gray on or request
Material PC+ABS or ABS
PLC/Adapter Capacity 12 Ports
Cable Entry Ports 2 Ports
Adapter Type SC
IP Grade IP65
Weight 0.57kg

Installation Considerations:

1.1 Location: Choose a location that is easily accessible for maintenance.

1.2 Capacity: Ensure the box has enough ports and splice trays for current and future needs.

1.3 Environmental Protection: For outdoor installations, ensure the box is rated for weather resistance (IP65 or higher).

Application:

2.1 FTTH access network
2.2 Telecommunication network
2.3 CATV networks
2.4 Data communications network
2.5 Local area networks
12 Ports Mini SC Optical Fiber Termination Box Flip-up cover For FTTx FTTA System 0
