Detail Information

Use:	CATV System	Insertion Lose:	0.2dB
Storage Temp.:	- 40°C To +85°C	Loading Test:	≥ 70 N
Durability:	>1000 Matings	Mode:	Single Mode Or Multimode
Highlight:	FTTH Fiber Optic Adapter , Duplex Fiber Optic Adapter , FTTH fiber cable connector

Product Description

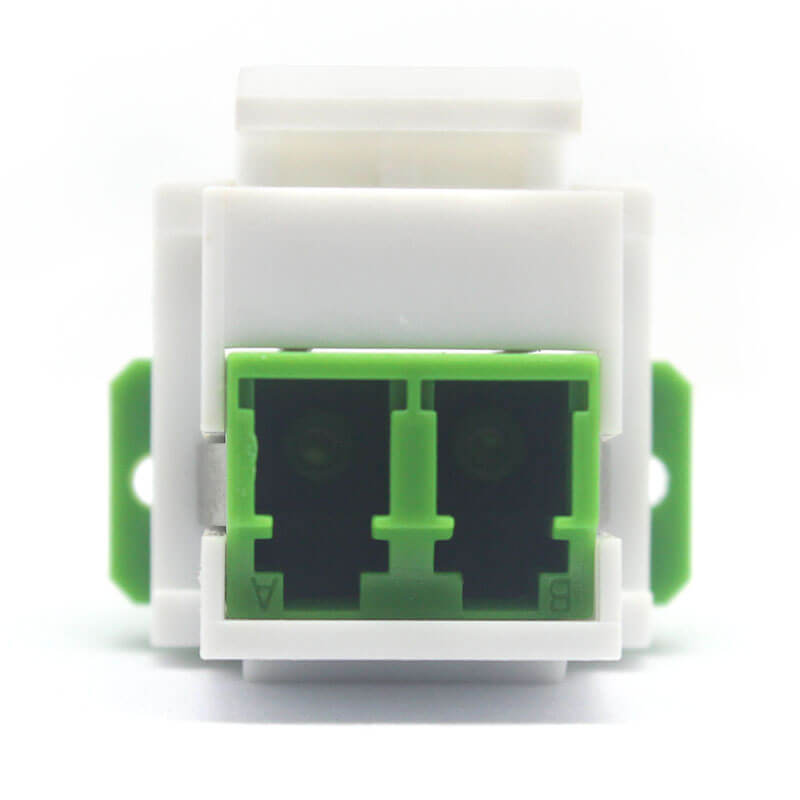

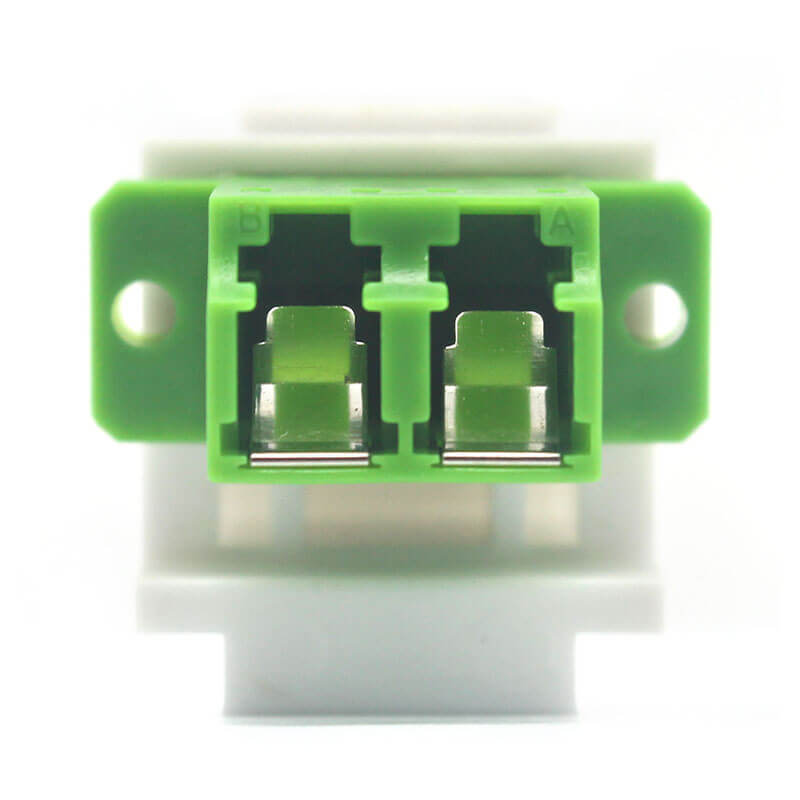

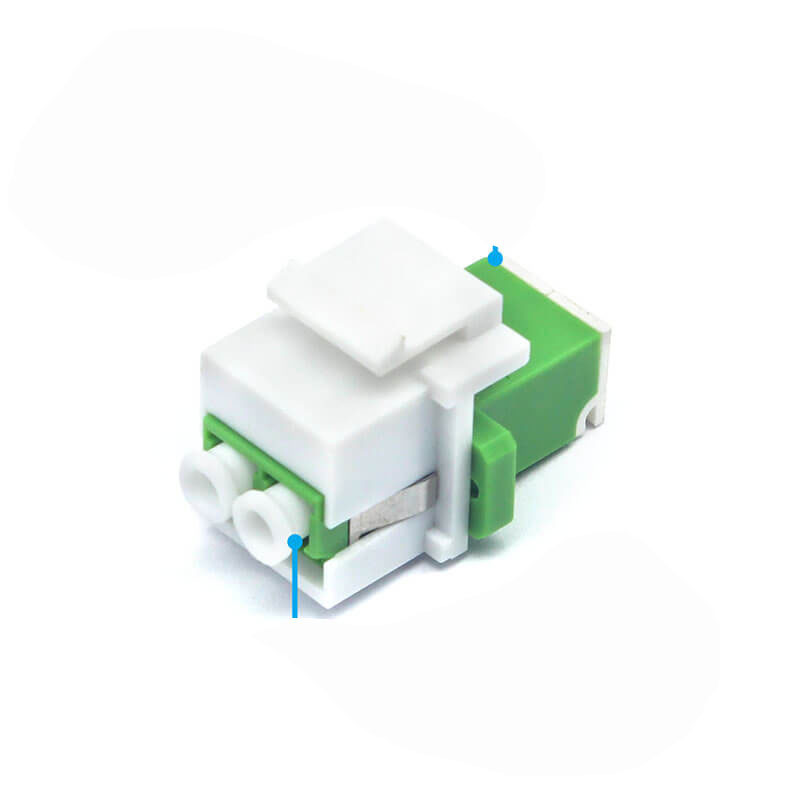

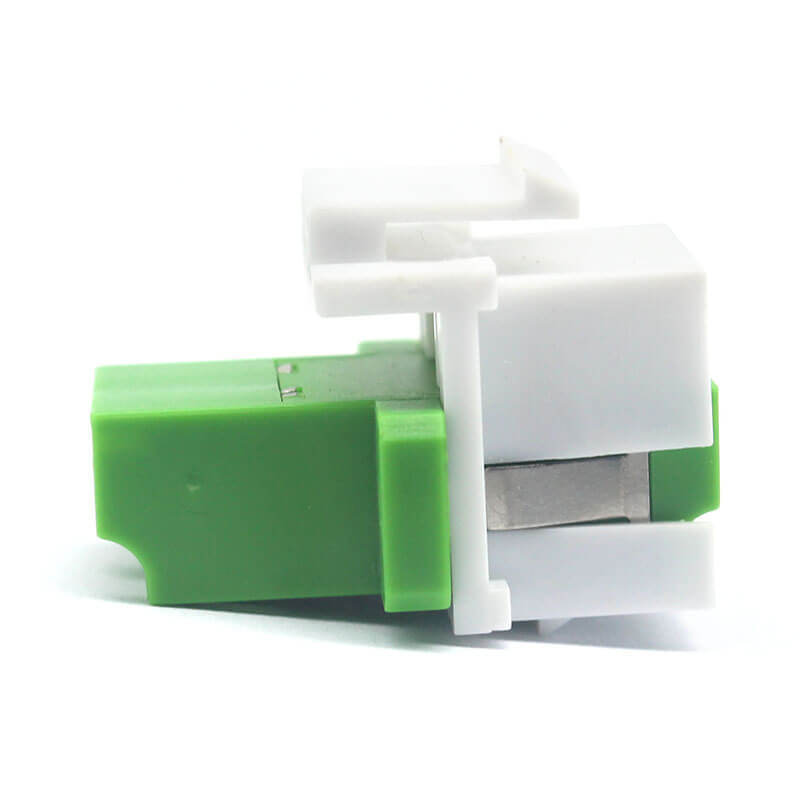

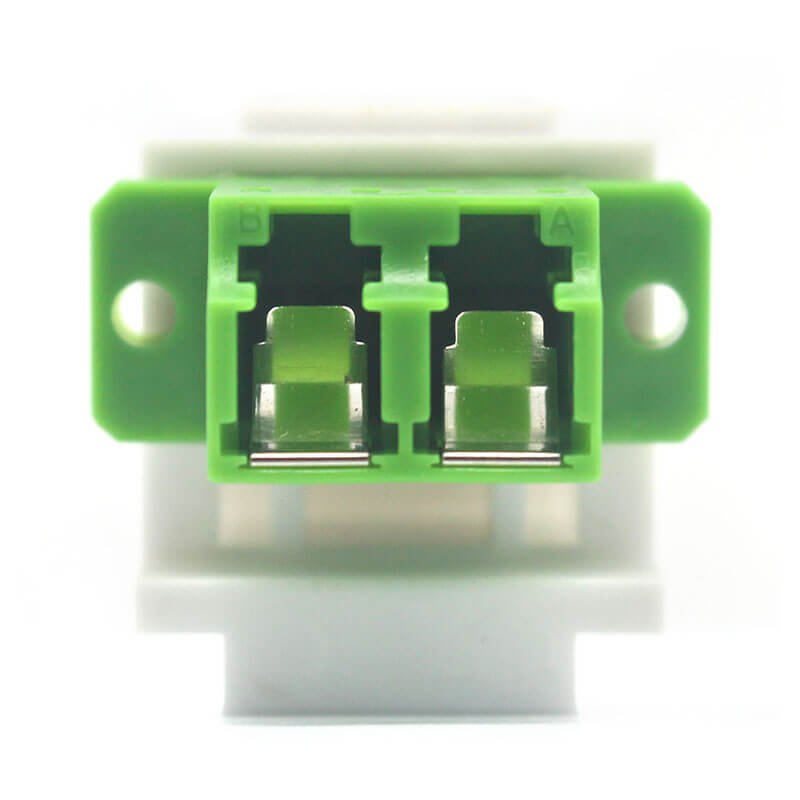

LC APC Duplex Keystone Adapter with Inner Shutter and Fl

This modular, snap-in fiber optic coupler is designed for mounting in standard keystone wall plates, patch panels, or enclosures, providing a fixed interface for connecting two LC APC fiber optic cables.

Specifications

Interface Type	LC APC Duplex
Mounting	Standard Keystone
Color	Green
Configuration	Duplex (Two ports)

Key Features

Standard Keystone Design: Rectangular plastic housing that snaps into any standard keystone wall plate, patch panel, or surface-mount box for tool-less installation and modular network setups
Duplex Configuration: Two individual LC adapter sleeves side-by-side within one housing, maintaining proper polarity for transmit and receive channels with color-coded shutters
APC Angled Polish: Green-colored internal split sleeves and exterior shroud with keyed design to ensure proper rotational alignment for 8° angled connectors
Spring-Loaded Shutters: Automatic dust shutters that close when cables are unplugged, protecting internal components from contaminants in office or residential environments

Applications

Fiber-to-the-Home (FTTH/PON Networks): Essential for preventing interference between upstream and downstream signals in single-fiber bidirectional systems like GPON
Cable Television (CATV) & RF Video Systems: Protects analog signals from back reflections that cause ghosting and signal degradation
High-Speed Digital Systems/WDM: Minimizes reflected light that can cause laser instability, noise, and reduced performance in wavelength division multiplexing systems
Test & Measurement Equipment: Provides accurate measurements by minimizing reflections in precision testing environments

This adapter ensures optimal performance in sensitive optical networks by maintaining precise connector alignment and providing superior protection against dust and contaminants.

Tag:

Place of Origin:	Zhejiang, China
Brand Name:	DOWELL
Model Number:	DW-LAD-IK

Minimum Order Quantity:	3000 pieces
Delivery Time:	5-7 days
Payment Terms:	T/T
Supply Ability:	10000pcs 7-10 days

LC APC Duplex Keystone Adapter with Inner Shutter, 0.2dB Insertion Loss, and >1000 Matings Durability Fiber Optic Coupler
