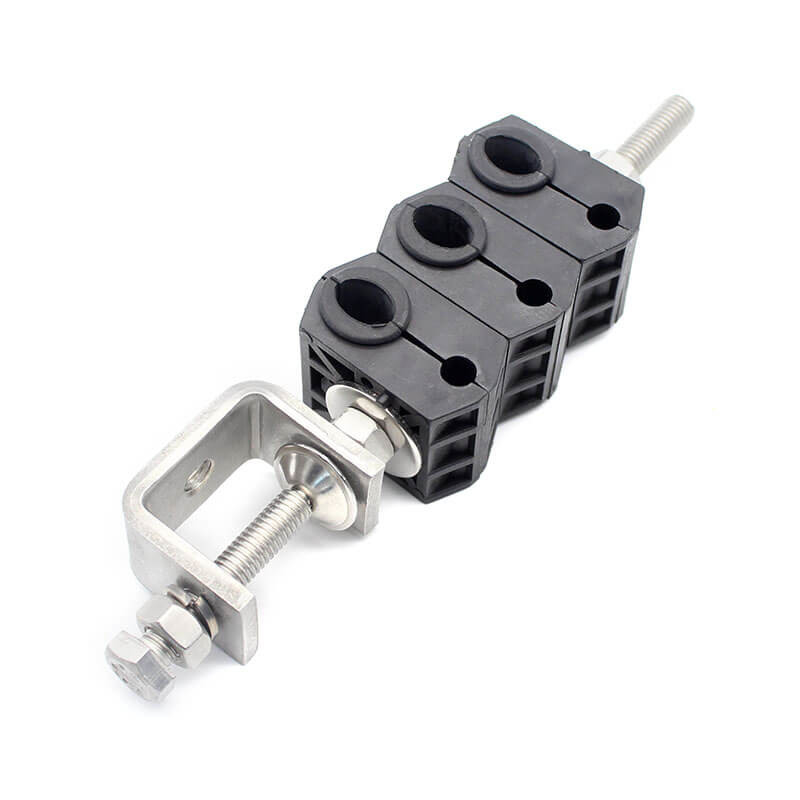

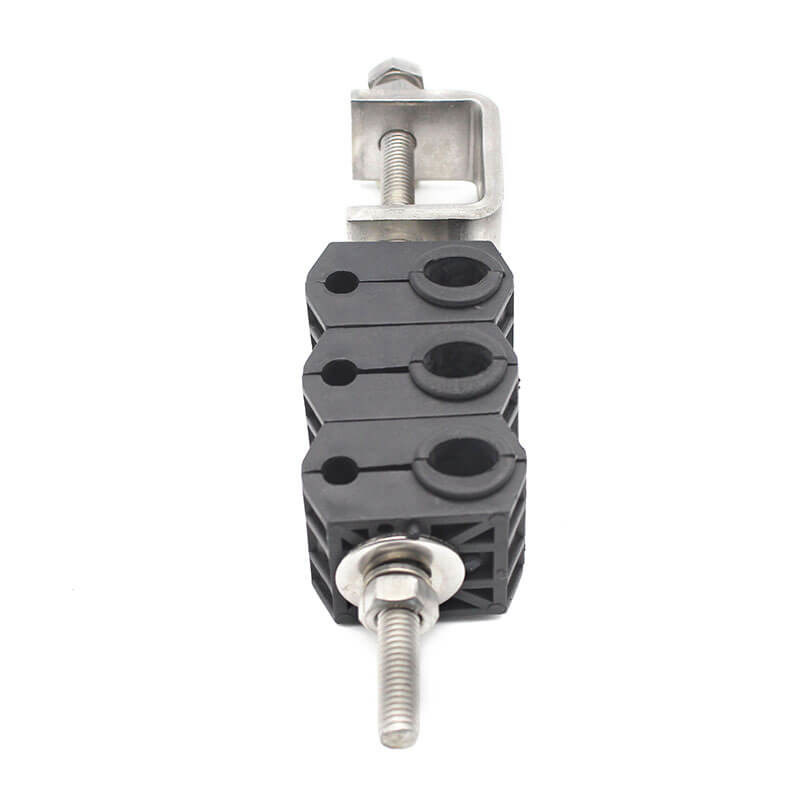

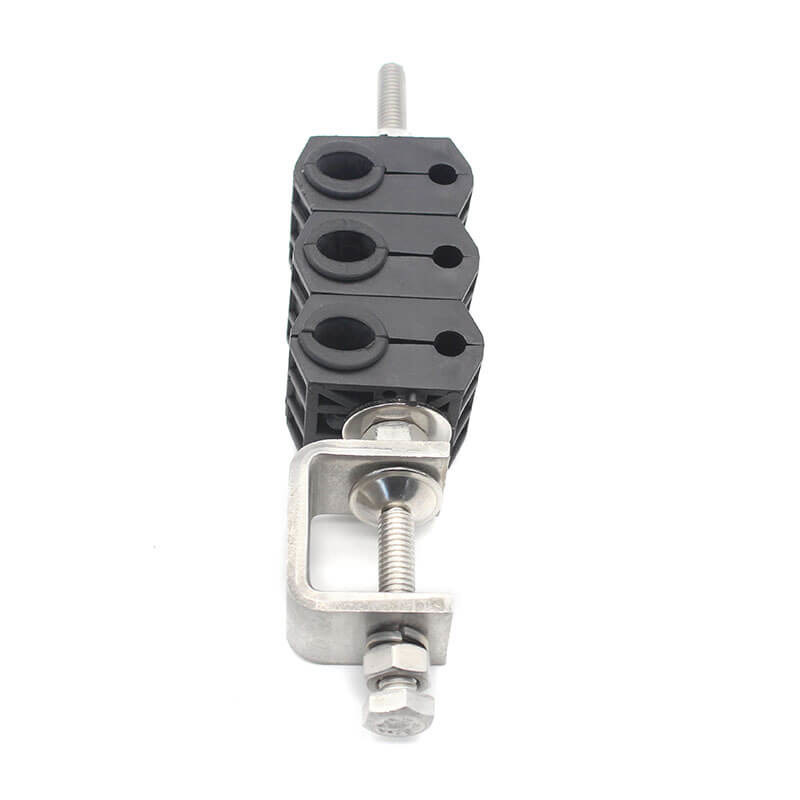

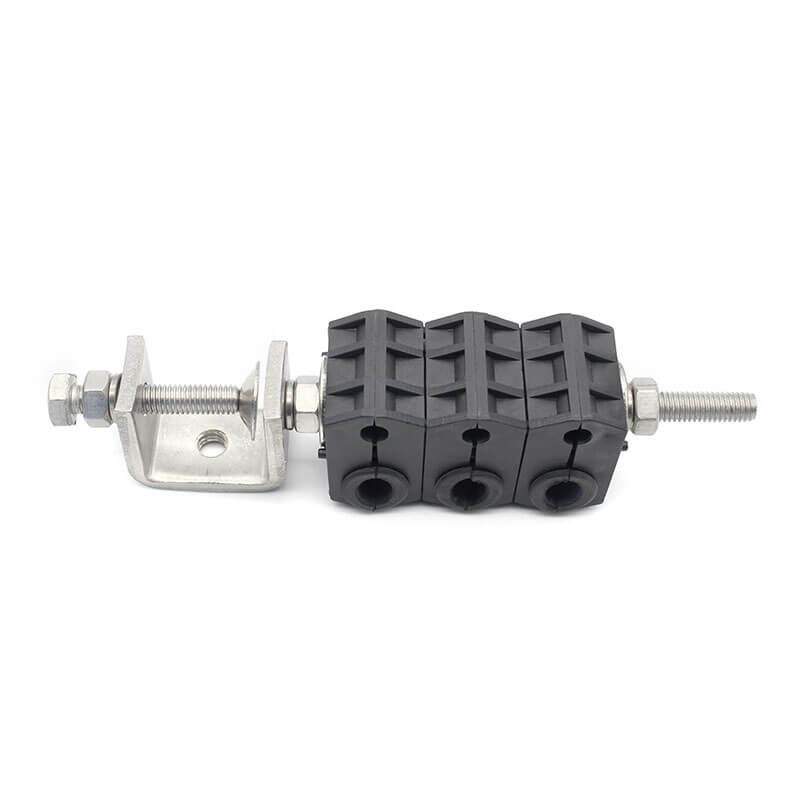

HUAWEI Rubber Sleeve Fiber Optic Feeder Clamp Outdoor Use

Installation:

1.1 Disentwine the special bolt of the C-bracket till the ringent distance is bigger than the thick of one side of angle iron. And then tighten the special bolt M8;(Reference torque: 15Nm)

1.2 Please retire the nut onto the threaded rod ,and unclench the plastic clip;

1.3 Disjoin the plastic clamp,plunge the Fiber cable ofφ7mm orφ7.5mm into the small hole of plastic clamp ,plunge the 3.3 square or 4square cable into the hole of the black rubber pipe in plastic clamp. Remove the rubber pipe from the plastic clamp forthe 6 square or 8.3 square cable and plunge the cable into the hole of plastic clamp (figure right);

1.4 Lock all nuts at last.(reference torque of lock nut M8 for clamp:11Nm)

Application:
