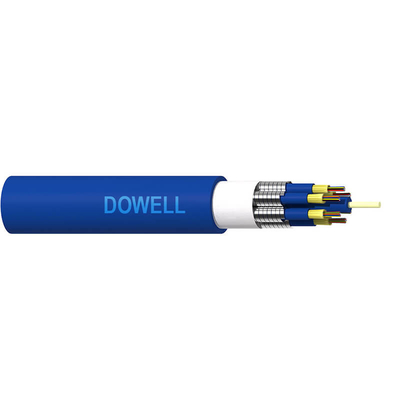

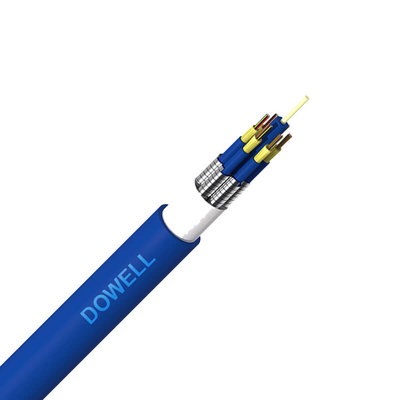

GJAFKV Multi-core Bundle type Fiber Armored Cable For Indoor Application

Indoor PVC Or LSZH Fiber Armored Cable GJAFKV Multi-core Bundle type

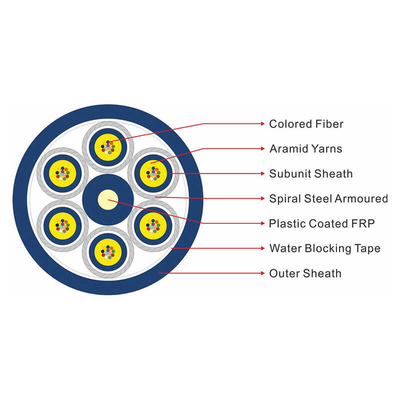

GJAFKV Indoor multi-core bundle type armored fiber optic cable is a multi-strand aramid fiber reinforced with a multi-core bundle mini ф250μm optical fiber surface. A layer of PVC or LSZH inner sheath is extruded on the stranded surface as a subunit, the subunit is wound with a layer of steel wire armor, The sub-unit and the non-metallic reinforcements FRP (and possible mats) are stranded in a circle, wrapped with a dry water-blocking tape between the core and the sheath, and finally the PVC (or LSZH) sheath is extruded cable.

Optical Characteristics​:

Technical Parameters:

Cable Type	Fiber Count	Subunit Diameter mm	Cable Diameter mm	Cable Weight Kg/km	Tensile Strength Long/Short Term N	Crush Resistance Long/Short Term N/100m	Bending Radius Static/Dynamic mm
GJFJV+SV	72	3	14	42	300/750	200/1000	20D/10D
GJFJV+SV	144	3	18	65	300/750	200/1000	20D/10D

Characteristics:

1.1 Miniature cable, high-strength aramid reinforced, high-performance jacket material protection.

1.2 Bending radius is small, light weight, soft, flexible, easy to follow.

1.3 Flat wire armored to improve the optical cable compression and anti-rat ability.

1.4 Has good mechanical and environmental performance.

1.5 Flame retardant or non-flame retardant outer jacket to provide good safety protection

Application:

2.1 Various conventional connector products. Pigtail, jumper.

2.2 Optical communication equipment, optical patch panels, fiber to the desktop and other light even.

2.3 Optical connection of optical equipment, instruments, etc.

2.4 Indoor horizontal wiring, vertical wiring within the building; LAN network, multi-information point connection.

2.5 Long-distance, outdoor, building wiring, trunking optical hybrid optical connection.

2.6 The backbone of the tail cable, access to the equipment inside the building.

2.7 Small installation space and occasional wiring.

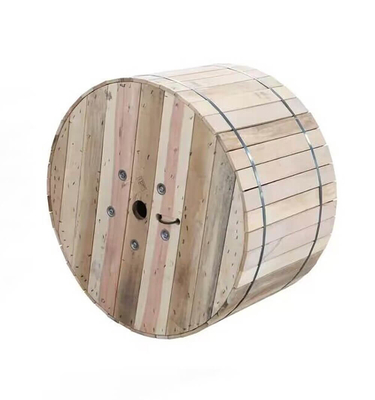

Our Package:

Production Flow:
