Indoor Multi-core 24F 48F Armored Optical Cable GJASFKV G652D G657A
GJASFKV Indoor multi-core armored fiber optic cable is the multi-strand aramid fiber rein-forced with a multi-core bundle mini ф250μm optical fiber surface. A PVC or LSZH inner jacket is extruded on the stranded surface as a subunit, and the multi-core bundle subunit is twisted into a circle In its outer layer winding a layer of steel wire armor, steel wire armor applied a small amount of aramid, then extruded PVC or LSZH outer sheath.
Optical Characteristics:
| |
|
G.652 |
G.657 |
50/125um |
62.5/125um |
Attenuation
(+20 ) |
@850nm |
|
|
≤3.0 dB/km |
≤3.0 dB/km |
| @1300nm |
|
|
≤1.0 dB/km |
≤1.0 dB/km |
| @1310nm |
≤0.36 dB/km |
|
|
|
| @1550nm |
≤0.22 dB/km |
≤0.23 dB/km |
|
|
| Bandwidth |
@850nm |
|
|
≥500 Mhz.km |
≥500 Mhz.km |
| Class A 850nm |
@1300nm |
|
|
≥1000 Mhz.km |
≥600 Mhz.km |
| Numerical aperture |
|
|
0.200±0.015NA |
0.275±0.015NA |
| Cable Cutoff Wavelength |
≤1260nm |
≤1480nm |
|
|
Technical Parameters:
| Cable Type |
Fiber Count |
Subunit
Outer
Diameter
mm |
Cable
Diameter
mm |
Cable
Weight
Kg/km |
Tensile
Strength
Long/Short
Term N |
Crush
Resistance
Long/Short
Term N/100m |
Bending Radius
Static/Dynamic
mm |
| GJFJV+SV |
24 |
7 |
5 |
64 |
300/750 |
200/1000 |
20D/10D |
| GJFJV+SV |
48 |
10 |
6 |
100 |
300/750 |
200/1000 |
20D/10D |
Characteristics:
1.1 Miniature cable, high-strength aramid reinforced, high-performance jacket material protection.
1.2 Bending radius is small, light weight, soft, flexible, easy to follow.
1.3 Flat wire armored to improve the optical cable compression and anti-rat ability.
1.4 Has good mechanical and environmental performance.
1.5 Flame retardant or non-flame retardant outer jacket to provide good safety protection
Application:
2.1 Various conventional connector products. Pigtail, jumper.
2.2 Optical communication equipment, optical patch panels, fiber to the desktop and other light even.
2.3 Optical connection of optical equipment, instruments, etc.
2.4 Indoor horizontal wiring, vertical wiring within the building; LAN network, multi-information point connection.
2.5 Long-distance, outdoor, building wiring, trunking optical hybrid optical connection.
2.6 The backbone of the tail cable, access to the equipment inside the building.
2.7 Small installation space and occasional wiring.

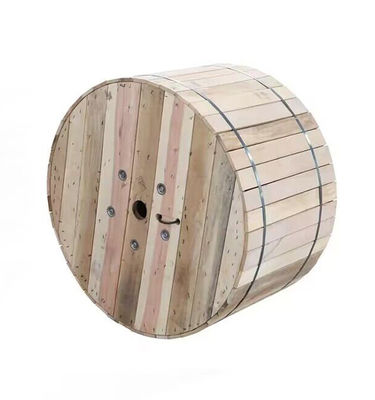

Our Package:
Prpduction Flow:
