Product Details:
|
| Fiber Type: | G652D/G657A | Attenuation: | @850nm @1300nm @1310nm @1550nm |
|---|---|---|---|
| Bandwidth: | @850nm @1300nm | Tight Buffer Fiber Diameter: | 900±50μm |

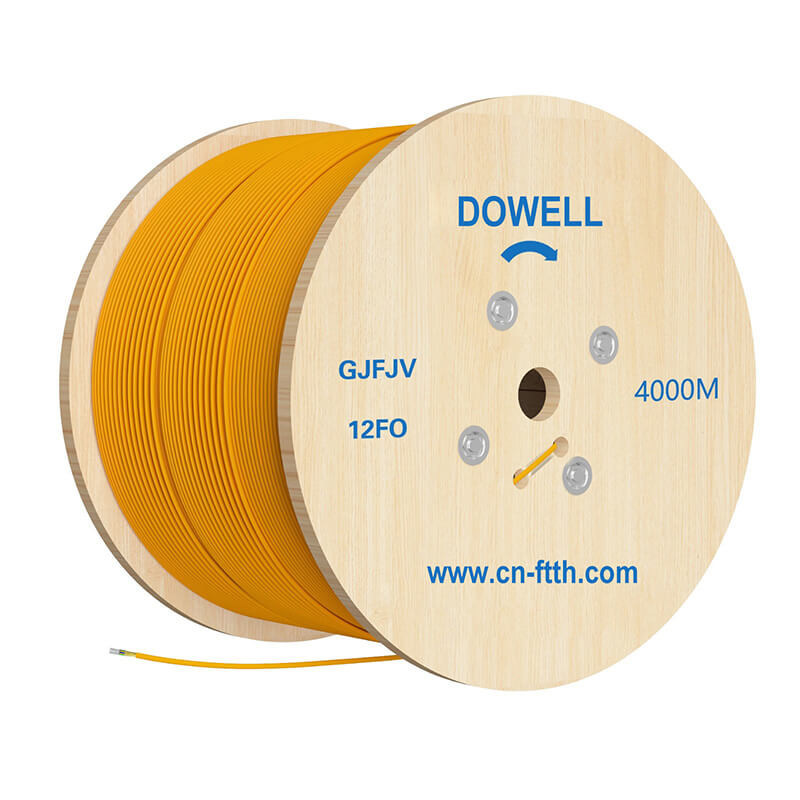

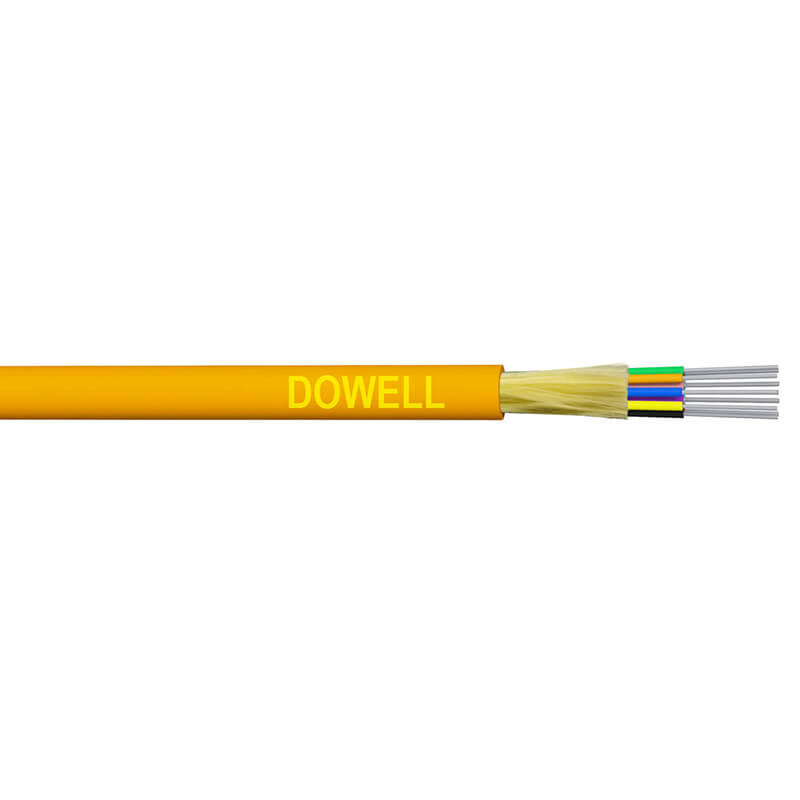

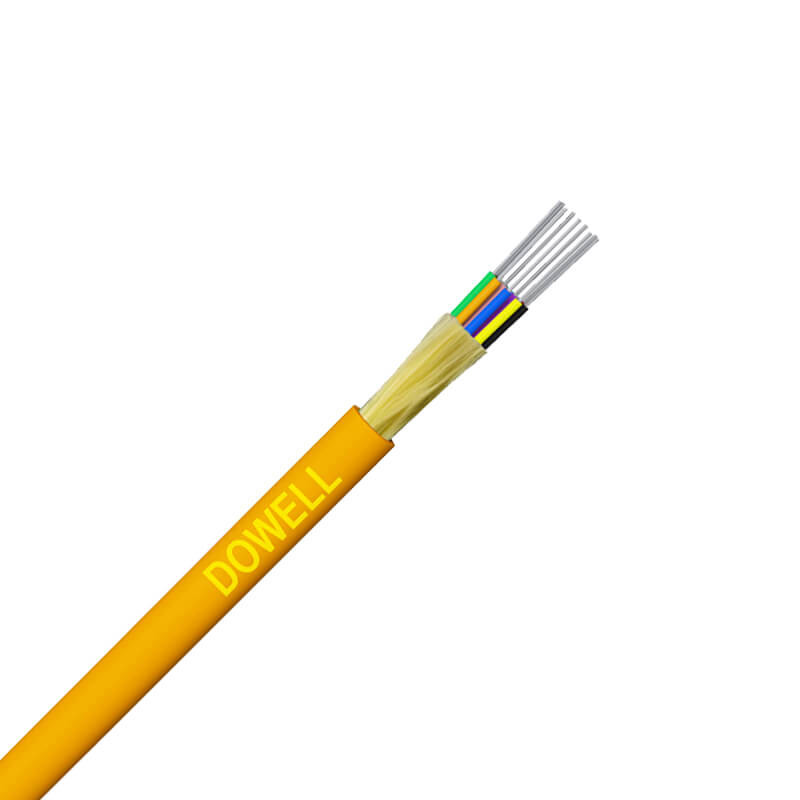

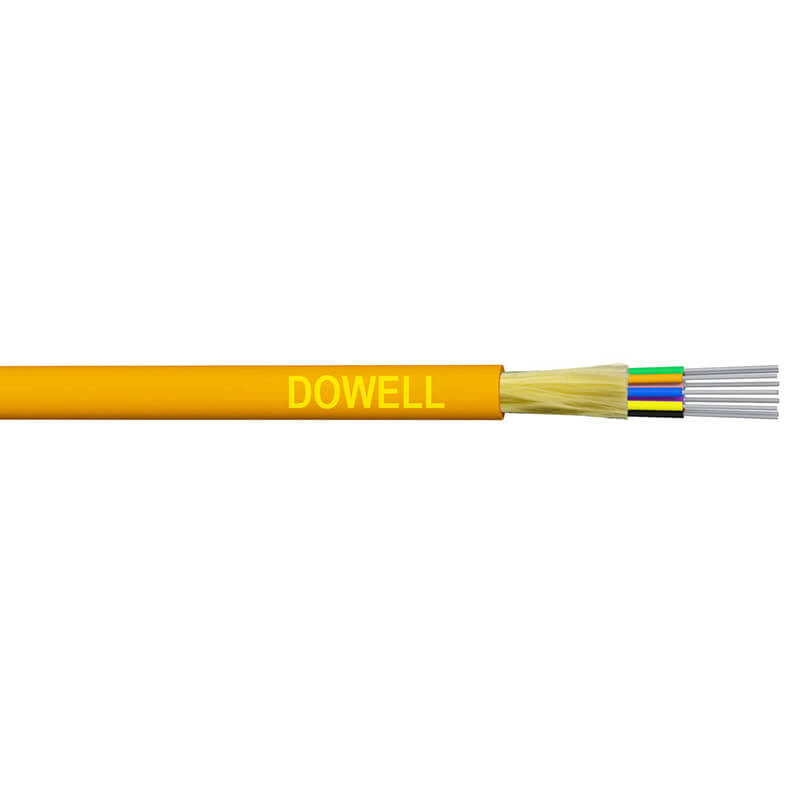

2-24 cores Tight Buffer Fiber Bundle Cable PVC LSZH Jacket For Indoor Distribution

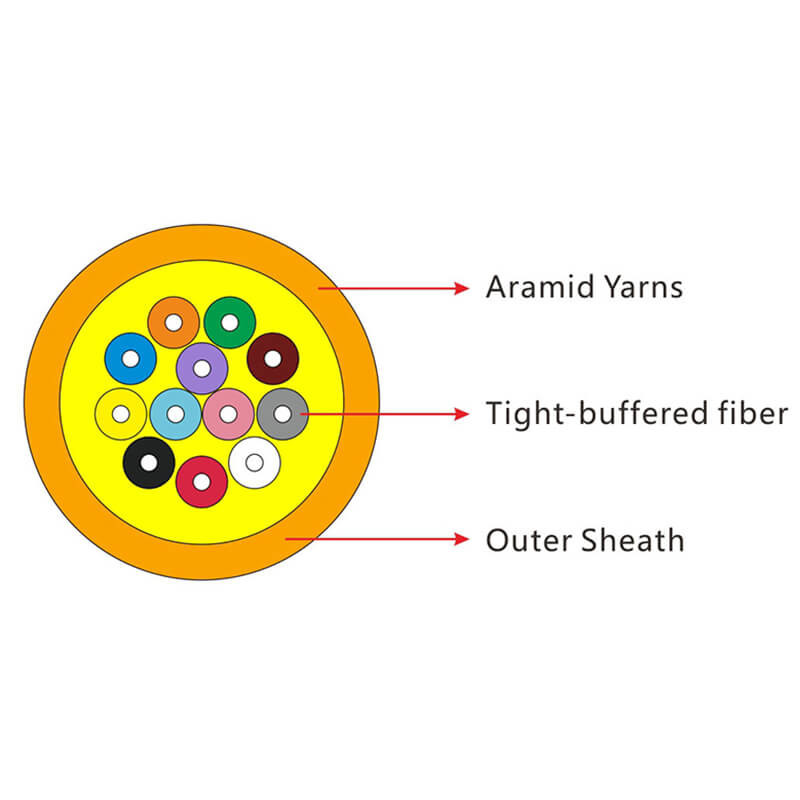

GJFJV Tight Buffer Fiber 2-24 cores Bundle Cable is made by evenly applying strands of Aramid yarns as the strength member over ф900μm or ф600μm tight buffer fibers and then is completed with PVC(LSZH)jacket.indoor cable is used in building wiring applications. Installed in walls, between floors, in plenum air handling ducts and under data center floors.
Cable Code
| MPC-02 | MPC-04 | MPC-06 | MPC-08 | MPC-10 | MPC-12 | |
| Cable Diameter(mm) | 4.1±0.25 | 4.8±0.25 | 5.1±0.25 | 6.2±0.25 | 6.5±0.25 | 6.8±0.25 |
| Cable Weight(kg/km) | 12 | 20 | 24 | 29 | 32 | 35 |
| Tight Buffer Fiber Diameter | 900±50μm | |||||
| G.652 | G.657 | 50/125um | 62.5/125um | ||
| Attenuation (+20 ) |
@850nm | ≤3.0 dB/km | ≤3.0 dB/km | ||
| @1300nm | ≤1.0 dB/km | ≤1.0 dB/km | |||
| @1310nm | ≤0.36 dB/km | ≤0.36 dB/km | |||
| @1550nm | ≤0.22 dB/km | ≤0.23 dB/km | |||
| Bandwidth | @850nm | ≥500 Mhz.km | ≥500 Mhz.km | ||
| Class A 850nm | @1300nm | ≥1000 Mhz.km | ≥600 Mhz.km | ||
| Numerical aperture | 0.200±0.015NA | 0.275±0.015NA | |||
| Cable Cutoff Wavelength | ≤1260nm | ≤1480nm | |||
| Tensile Strength | Long-term | 80N | 60N | 50N |
| Short-term | 150N | 120N | 100N | |
| Crush Resistance | Long-term | 100N/100mm | 100N/100mm | 100N/100mm |
| Short-term | 500N/100mm | 500N/100mm | 500N/100mm | |
| Bending Radius | Dynamic | 20xD | 20xD | 20xD |
| Static | 10xD | 10xD | 10xD |
