Multi Mode Single Mode Mini Bundle Fiber Optic Cable High Strength Ideal

Multi Mode Single Mode Mini Bundle Fiber Optic Cable High Strength Ideal
Multi Mode Single Mode Mini Bundle Fiber Optic Cable High Strength Ideal Multi Mode Single Mode Mini Bundle Fiber Optic Cable High Strength Ideal Multi Mode Single Mode Mini Bundle Fiber Optic Cable High Strength Ideal Multi Mode Single Mode Mini Bundle Fiber Optic Cable High Strength Ideal

Large Image :  Multi Mode Single Mode Mini Bundle Fiber Optic Cable High Strength Ideal

Product Details:
Place of Origin: Zhejiang, China
Brand Name: DOWELL
Model Number: GJFV
Payment & Shipping Terms:
Minimum Order Quantity: 4KM
Delivery Time: 7-15 Days
Payment Terms: T/T, Western Union, Paypal
Supply Ability: 100 Roll Per 7 Days
Contact Now

Multi Mode Single Mode Mini Bundle Fiber Optic Cable High Strength Ideal

Description
Fiber Type: G652D/G657A1/G657A2 Fiber Count: 2-24 Cores
Cable Diameter: 3.0mm Tensile Strength Long/Short Term N: 150/300
Operating Temperature: －20 ℃～＋60 ℃ Storage Temperature: －20 ℃～＋60 ℃
Highlight:

indoor fiber optic cable

,

indoor fiber optic drop cable

,

24 cores fiber optic cable

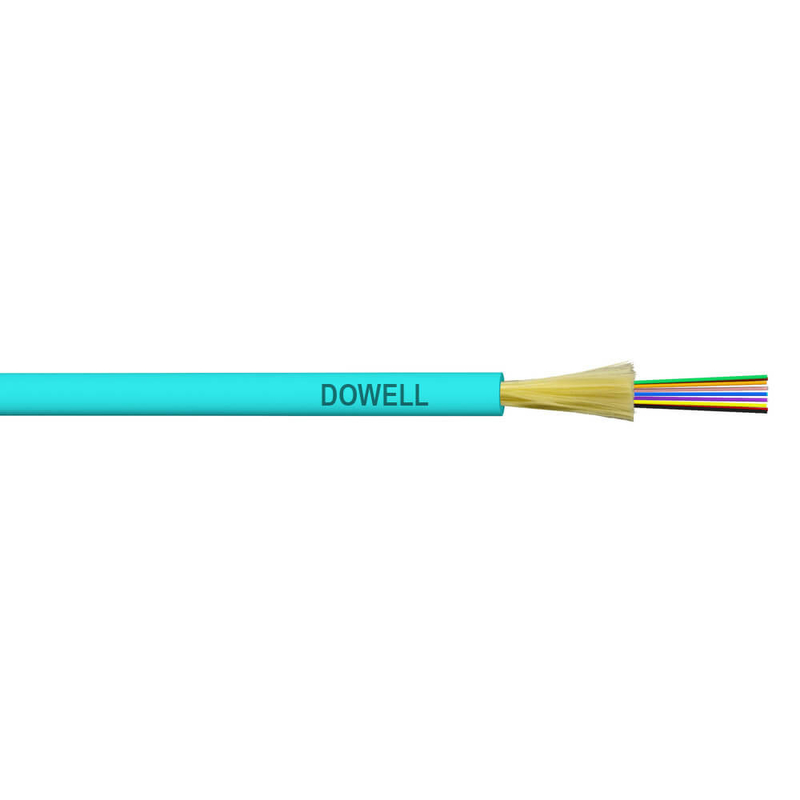

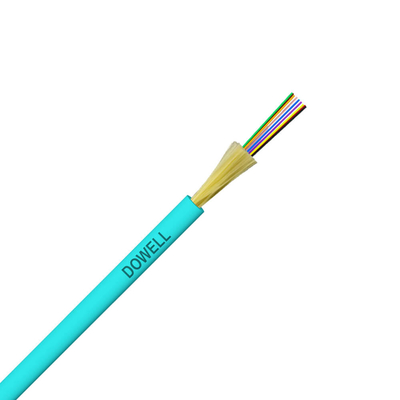

1KM 2KM Multi Mode Single Mode Mini Bundle Fiber Optic Cable High Strength Ideal for Indoor Applications

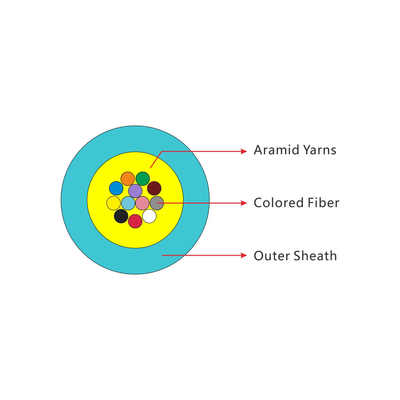

GJFV cable is made by evenly applying strands of Aramid yarns as the strength member over ф250μm fibers,twisting fibers with aramid yarn,then is completed.

GJFV cable complies with Standard YD/T1258.2-2009 ICEA-596 GR- 409 IEC794 etc; and meets with the requirements of UL approval for OFNR
Multi Mode:
Optical Type 62.5/125 m 50.0/125 m BIOM3
(850/1300nm) (850/1300nm) (850/1300nm)
Attenuation Typical 3.0/1.0dB/km 3.0/1.0dB/km 3.0/1.0dB/km
Max 3.5/1.5 dB/km 3.5/1.5 dB/km 3.5/1.5 dB/km
Bandwidth(Mhz.km) ≥200 /≥ 500 ≥500 /≥ 500 ≥1500 /≥ 500
Effectivemode bandwidth(Mhz.km)     >2000
Main Bending Radius(mm) 30 30 7.5
Cladding diameter 125 ±1.0 m 125 ±1.0 m 125 ±1.0 m

​Single Mode:

Optical Type G652D G657A1 G657A2
(1310/1550nm) (1310/1550nm) (1310/1550nm)
Attenuation Typical 0.36/0.22 dB/km 0.36/0.22 dB/km 0.36/0.22 dB/km
Max 0.50/0.40 dB/km 0.50/0.40 dB/km 0.50/0.40 dB/km
Zero dispersion slope ≤ 0.091ps/km nm² ≤ 0.092ps/km nm² ≤ 0.092ps/km nm²
MFD (@1310nm) 9.3 ± 0.4 μm 8.8 ± 0.4 μm 8.8 ± 0.4 μm
Cut-off wavelength ≤1260nm ≤1260nm ≤1260nm
Min bending Radius 16mm 10mm 7.5mm
Cladding diameter 125± 1.0 μm 125± 1.0 μm 125± 1.0 μm

Technical Parameters:

Cable Type Fiber Count Cable
Diameter
mm		 Cable
Weight
Kg/km		 Tensile
Strength
Long/Short
Term N		 Crush
Resistance
Long/Short
Term N/100m		 Bending Radius
Static/Dynamic
mm
GJFV 2-12 3 7.5 150/300 80/150 30D/15D
GJFJV 14-24 3 8 150/300 80/150 30D/15D

Features:

1.1 Mini bundle cable,high strength aramid yarn,high-performance jacket
1.2 Small bend radius, light weight,excellent strippability,easily strip and splice.
1.3 Good mechanical and environment performance
1.4 Flame retardant or stop fire jacket,Provide good security

Application:

2.1 Indoor horizontal wiring, vertical wiring in buildings, LAN network.
2.2 Standard core can be directly apply to connectors, to use for device connecting
2.3 Used as a backbone cable tail can access directly from the indoor and outdoor to save the junction box, isolated lightning, improve system reliability.
Multi Mode Single Mode Mini Bundle Fiber Optic Cable High Strength Ideal 0

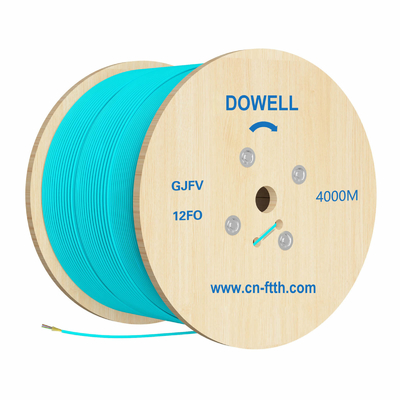

Our Package

Multi Mode Single Mode Mini Bundle Fiber Optic Cable High Strength Ideal 1

Production Flow

Multi Mode Single Mode Mini Bundle Fiber Optic Cable High Strength Ideal 2

Related Products

Multi Mode Single Mode Mini Bundle Fiber Optic Cable High Strength Ideal 3
