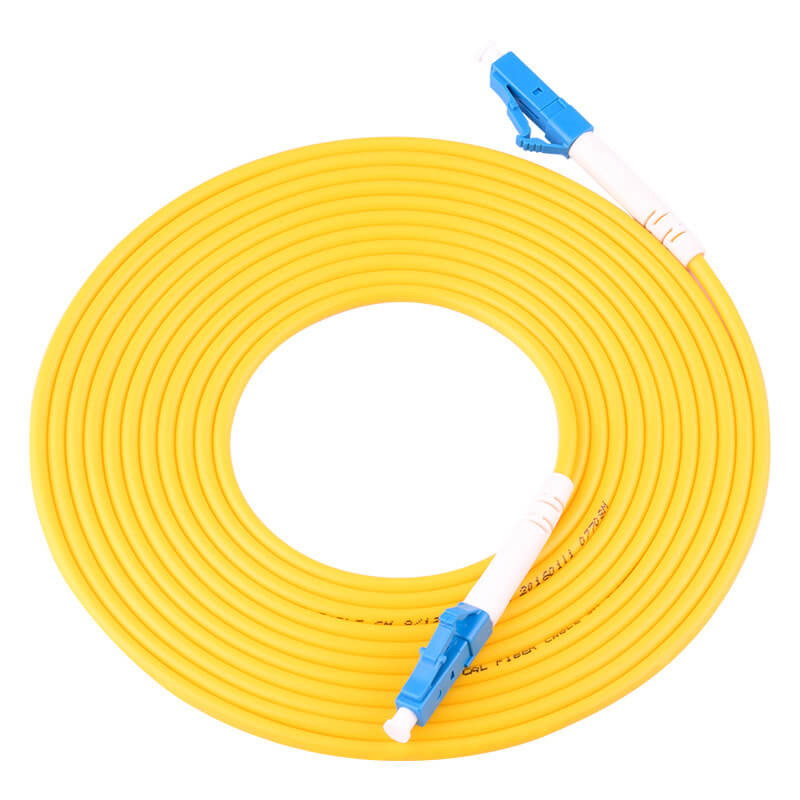

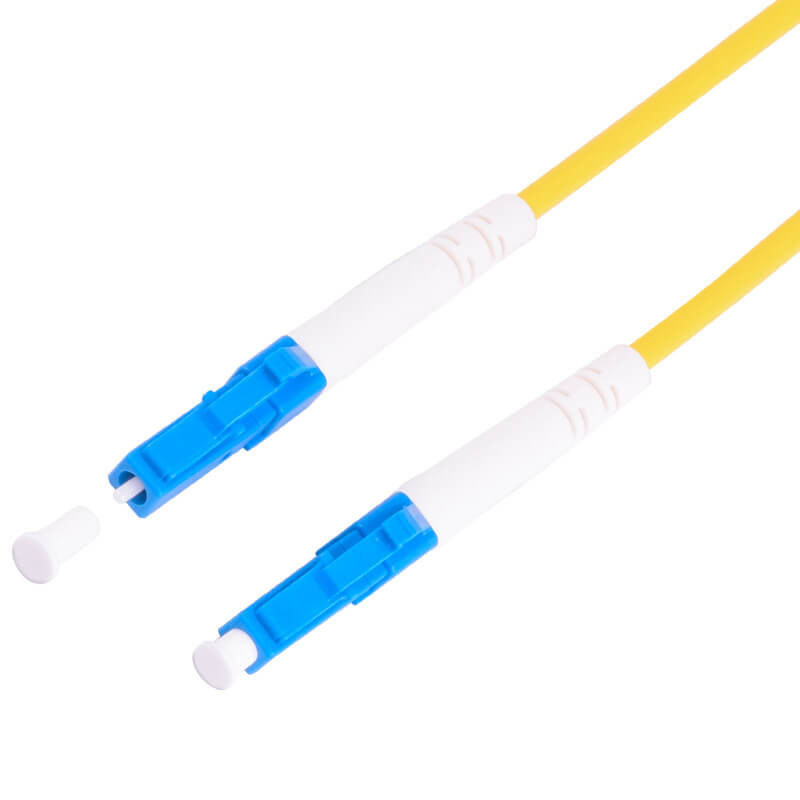

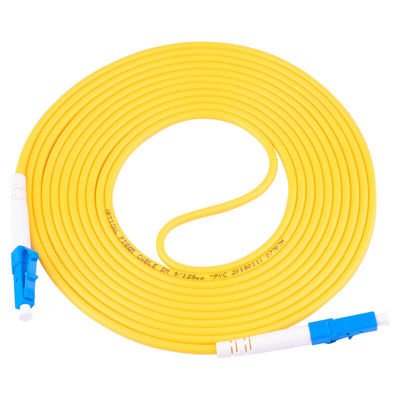

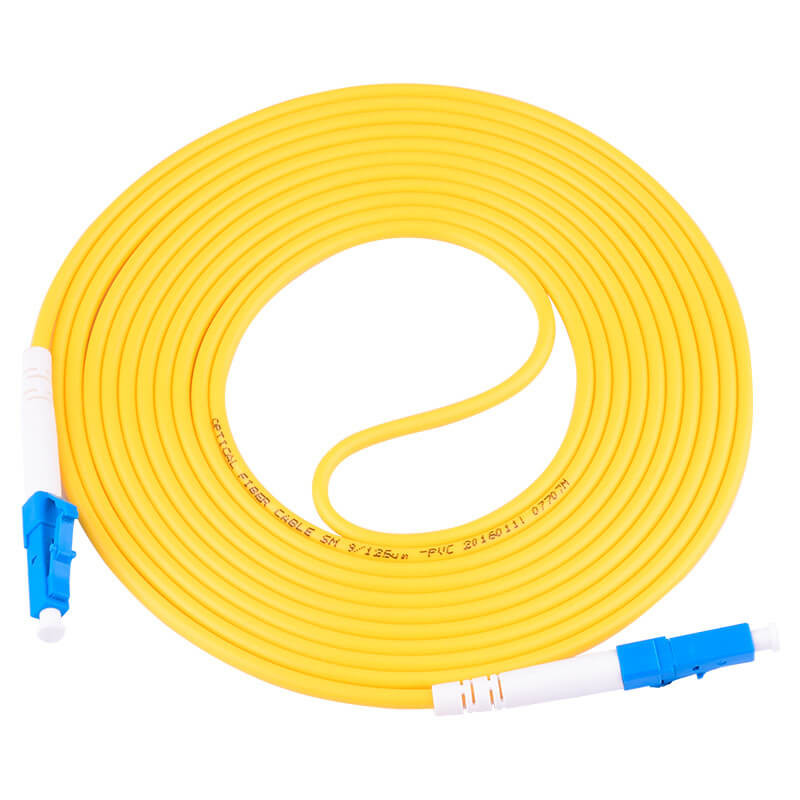

G657A2 LC To LC Simplex Fiber Optic Patch Cord Cable With 2.0mm Yellow PVC Jacket

G657A2 LC To LC Simplex Fiber Optic Patch Cord Cable With 2.0mm Yellow PVC Jacket

An LC fiber optic patch cord is a type of fiber optic cable used for high-speed data transmission in networking and telecommunications.

Specification:

Feature:

1.1 Connector Type:
      Uses LC (Lucent Connector) connectors, which are small form-factor, push-pull connectors.
      Ideal for high-density applications due to their compact size (half the size of SC connectors).
1.2 Fiber Types:
      Single-mode: Long-distance transmission (up to 10 km to 100+ km), low attenuation.
      Multimode (OM1/OM2/OM3/OM4/OM5): Short-distance transmission (up to 550m for 10G), higher bandwidth.
1.3 Polish Types:
      UPC (Ultra Physical Contact): Blue connectors, low insertion loss (~0.2dB).
      APC (Angled Physical Contact): Green connectors, angled 8° to reduce back reflection (~0.3dB loss).
1.4 Cable Jacket Options:
      Simplex: Single fiber, single connector per end.
      Duplex: Two fibers (LC-LC duplex for bidirectional communication).
      Armored: Reinforced for harsh environments.

Applications:
2.1 Data centers (high-density patching).
2.2 Telecommunication networks.
2.3 FTTH (Fiber-to-the-Home) connections.
2.4 Enterprise networks (LAN/WAN).
