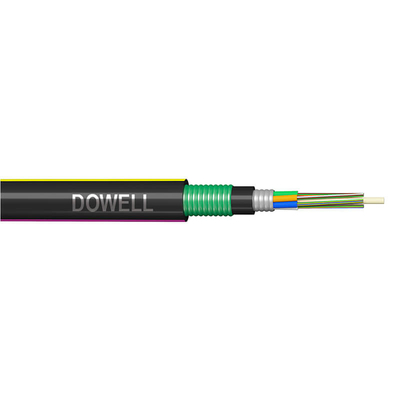

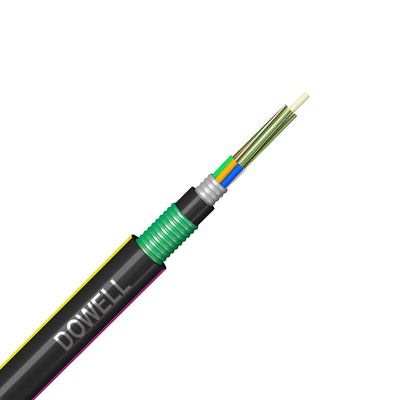

Armored Fiber Optic Cable Single Mode 8 Cores Underground Fiber Optic Cable

Armored Fiber Optic Cable Single Mode 8 Cores Underground Fiber Optic Cable
Armored Fiber Optic Cable Single Mode 8 Cores Underground Fiber Optic Cable Armored Fiber Optic Cable Single Mode 8 Cores Underground Fiber Optic Cable Armored Fiber Optic Cable Single Mode 8 Cores Underground Fiber Optic Cable Armored Fiber Optic Cable Single Mode 8 Cores Underground Fiber Optic Cable

Large Image :  Armored Fiber Optic Cable Single Mode 8 Cores Underground Fiber Optic Cable

Product Details:
Place of Origin: Zhejiang, China
Brand Name: DOWELL
Model Number: GYFTA53
Payment & Shipping Terms:
Minimum Order Quantity: 4KM
Delivery Time: 7- 15 Days
Payment Terms: T/T, Western Union, Paypal
Supply Ability: 100 Roll Per 7 Days
Contact Now

Armored Fiber Optic Cable Single Mode 8 Cores Underground Fiber Optic Cable

Description
Fiber Type: G652D/G657A Fiber Count: 2-144F
Highlight:

Armored 8 Core Fiber Cable

,

Armored Underground Fiber Optic Cable

,

Single Mode 8 Core Fiber Cable

GYFTA53 Armored Fiber Optic Cable
GYFTA53 Armored Fiber Optic Cable, The loose tubes are made of high modulus plastics (PBT) and filled with water resistant filling gel. Loose tubes are stranded around the FRP central strength member, cable core is filled with cable filing compound. The corrugated aluminum tape folding and polyethylene (PE) is extruded as inner sheath, then water swollen yarns and corrugated steel tape is longjitudinally applied over the inner sheath, and combined with a durable PE sheath.
Optical Characteristics​:
    G.652 G.657 50/125um 62.5/125um
Attenuation
(+20 )		 @850nm     ≤3.0 dB/km ≤3.0 dB/km
@1300nm     ≤1.0 dB/km ≤1.0 dB/km
@1310nm ≤0.36 dB/km ≤0.40 dB/km
@1550nm ≤0.22 dB/km ≤0.23 dB/km
Bandwidth @850nm     ≥500 Mhz.km ≥200 Mhz.km
Class A 850nm @1300nm     ≥1000 Mhz.km ≥500 Mhz.km
Numerical aperture     0.200±0.015NA 0.275±0.015NA
Cable Cutoff Wavelength ≤1260nm ≤1480nm
Technical Parameters:
Cable Type Fiber Count Tube Fillers Cable
Diameter
mm		 Cable
Weight
Kg/km		 Tensile
Strength
Long/Short
Term N		 Crush
Resistance
Long/Short
Term N/100m		 Bending Radius
Static/Dynamic mm
GYFTA53-2~6 2-6 1 7 16.8 255 1000/3000 1000/3000 10D/20D
GYFTA53-8~12 8-12 2 6 16.8 255 1000/3000 1000/3000 10D/20D
GYFTA53-14~18 14-18 3 5 16.8 255 1000/3000 1000/3000 10D/20D
GYFTA53-20~24 20-24 4 4 16.8 255 1000/3000 1000/3000 10D/20D
GYFTA53-26~30 26-30 5 3 16.8 255 1000/3000 1000/3000 10D/20D
GYFTA53-26~36 32-36 6 2 16.8 255 1000/3000 1000/3000 10D/20D
GYFTA53-38~42 38-42 7 1 16.8 255 1000/3000 1000/3000 10D/20D
GYFTA53-44~48 44-48 8 0 16.8 255 1000/3000 1000/3000 10D/20D
GYFTA53-50~60 50-60 5 3 19.2 320 1000/3000 1000/3000 10D/20D
GYFTA53-62~72 62-72 6 2 19.2 320 1000/3000 1000/3000 10D/20D
GYFTA53-74~84 74-84 7 1 19.2 320 1000/3000 1000/3000 10D/20D
GYFTA53-86~96 86-96 8 0 19.2 320 1000/3000 1000/3000 10D/20D
GYFTA53-98~108 98-108 9 1 21.2 380 1000/3000 1000/3000 10D/20D
GYFTA53-110~120 110-120 10 0 21.2 380 1000/3000 1000/3000 10D/20D
GYFTA53-122~132 122-132 11 1 22.3 415 1000/3000 1000/3000 10D/20D
GYFTA53-134~144 134-144 12 0 22.3 415 1000/3000 1000/3000 10D/20D
Standards:
1.1 GYFTA53 cable complies with Standard YD/T 901-2009 as well as IEC 60794-1
Application:
2.1 Good mechanical and temperature performance
2.2 High strength looes tube that is hydrolysis resistant
2.3 Special tube filling compound ensure a critical protection of fiber
2.4 Crush resistance and flexibility
2.5 The following measures are taken to ensure the cable watertight:
      Single Fiber Reinforced Plastic as the central strength member
      Loose tube filling compound
      100% cable core filling
      APL moisture barrier
Armored Fiber Optic Cable Single Mode 8 Cores Underground Fiber Optic Cable 0

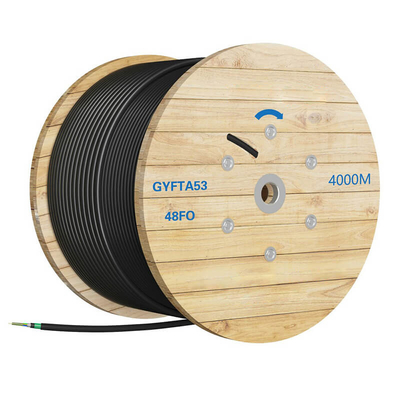

Package:

Armored Fiber Optic Cable Single Mode 8 Cores Underground Fiber Optic Cable 1

Production Flow:

Armored Fiber Optic Cable Single Mode 8 Cores Underground Fiber Optic Cable 2

Tag:

multimode fiber cable,

GYTS fiber cable,

fiber optic wire
