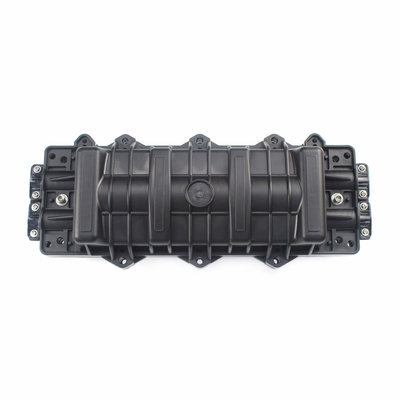

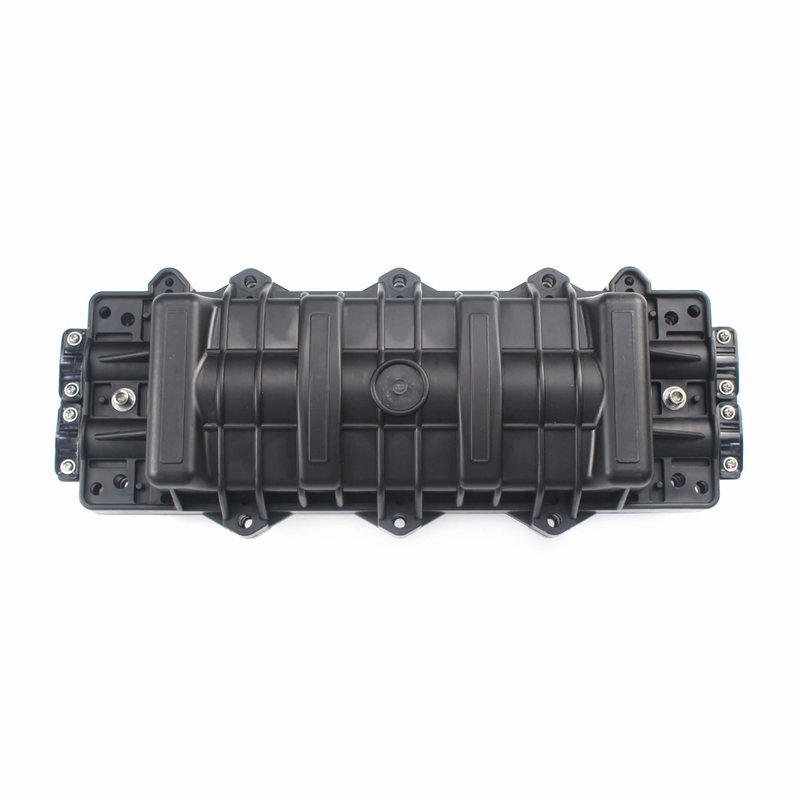

Wall Mounting 144F Fiber Optic Splice Closure PP PC Plastic With High Strength

Wall Mounting 144F Fiber Optic Splice Closure PP PC Plastic With High Strength
Wall Mounting 144F Fiber Optic Splice Closure PP PC Plastic With High Strength
Wall Mounting 144F Fiber Optic Splice Closure PP PC Plastic With High Strength Wall Mounting 144F Fiber Optic Splice Closure PP PC Plastic With High Strength Wall Mounting 144F Fiber Optic Splice Closure PP PC Plastic With High Strength Wall Mounting 144F Fiber Optic Splice Closure PP PC Plastic With High Strength Wall Mounting 144F Fiber Optic Splice Closure PP PC Plastic With High Strength

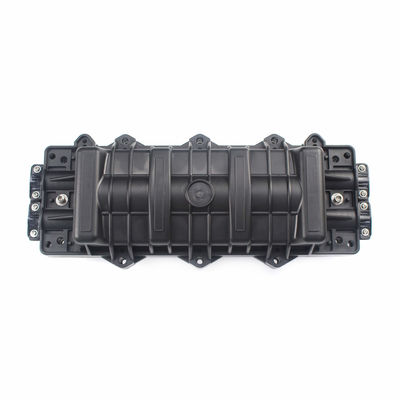

Large Image :  Wall Mounting 144F Fiber Optic Splice Closure PP PC Plastic With High Strength

Product Details:
Place of Origin: Zhejiang, China
Brand Name: DOWELL
Model Number: FOSC-H2D
Payment & Shipping Terms:
Minimum Order Quantity: 100 pieces
Delivery Time: 7-15 Days
Payment Terms: T/T, Western Union, Paypal
Supply Ability: 1000 PCS Per 7 Days
Contact Now

Wall Mounting 144F Fiber Optic Splice Closure PP PC Plastic With High Strength

Description
Colour: Black Accessories: Splice Trays, Cable Ties, Mounting Brackets
Cable Entry Ports: 4 Pieces Fixed Method: Thermal Shrinkage
Capacity: Up To 288 Fibers Fiber Cores: 12 Cores To 288 Cores
Highlight:

High Strength Fiber Optic Splice Closure

,

High Strength underground fiber splice enclosure

,

PP Fiber Optic Splice Closure

Wall-mounting Fiber Optic Splice Closure Max 144F PP PC Plastic With High-Strength

The Fiber Optic Splice Closure (Hereafter abbreviated as FOSC), application is: aerial, underground, wall-mounting, duct-mounting, handhole-mounting. The ambient temperature ranges from -40℃ to +65℃. These closures are used to protect and connect fiber optic cables for use in harsh environments. Suitable for bunchy & ribbon fibers Aerial, underground, wall-mounting, hand hole-mounting pole-mounting and duct-mounting.

Dimension and capacity

Number of inlet/outlet ports 2 In 2 Out (total 4 pieces)
Diameter of fiber cable Φ5—Φ20 (mm)
Capacity Bunchy: 12—96(Cores)
Ribbon: max. 144(Cores)
Weight (excluding outside box) 2300g-2500g
Outside dimension (LxWxH) 460×182×120 (mm)

Main components

No. Name of components Quantity Usage Remarks
1 Housing 1 set Protecting fiber cable splices in whole Internal diameter:
460×182×60 (mm)
2 Fiber optic splice tray
(FOST)		 max. 4 pcs (bunchy)
max.4 pcs (ribbon)		 Fixing heat shrinkable protective sleeve and holding fibers Suitable for:
Bunchy:12,24(cores) Ribbon:6 (pieces)
3 Foundation 1 set Fixing reinforced core of fiber- cable and FOST
4 Seal fitting 1 set Sealing between FOSC cover and FOSC bottom
5 Port plug 4 pieces Sealing empty ports
6 Earthing deriving device 1 set Deriving metallic components of fiber cable in FOSC for earthing connection Configuration as per requirement

Main accessories and special tools

No. Name of accessories Quantity Usage Remarks
1 Heat shrinkable protective sleeve   Protecting fiber splices Configuration as per capacity
2 Nylon tie
3 Insulation tape 1 roll Enlarging diameter of fiber cable for easy fixing
4 Seal tape 1 roll Enlarging diameter of fiber cable which fits in with seal fitting Configuration as per specification
5 Hanging hook 1 set For aerial use
6 Earthing wire 1 piece Putting through between earthing devices Configuration as per requirement
7 Abrasive cloth 1 piece Scratching fiber cable
8 Labeling paper 1 piece Labeling fiber
9 Special wrench 2 pieces Fixing bolts, tightening nut of reinforced core
10 Buffer tube 1 piece Hitched to fibers and fixed with FOST, managing buffer Configuration as per requirement
11 Desiccant 1 bag Put into FOSC before sealing for desiccating air. Configuration as per requirement

Application​

Commonly used in telecommunications, CATV networks, and enterprise networks.
Ideal for fiber-to-the-home (FTTH), fiber-to-the-building (FTTB), and other fiber optic deployment scenarios

More details Show

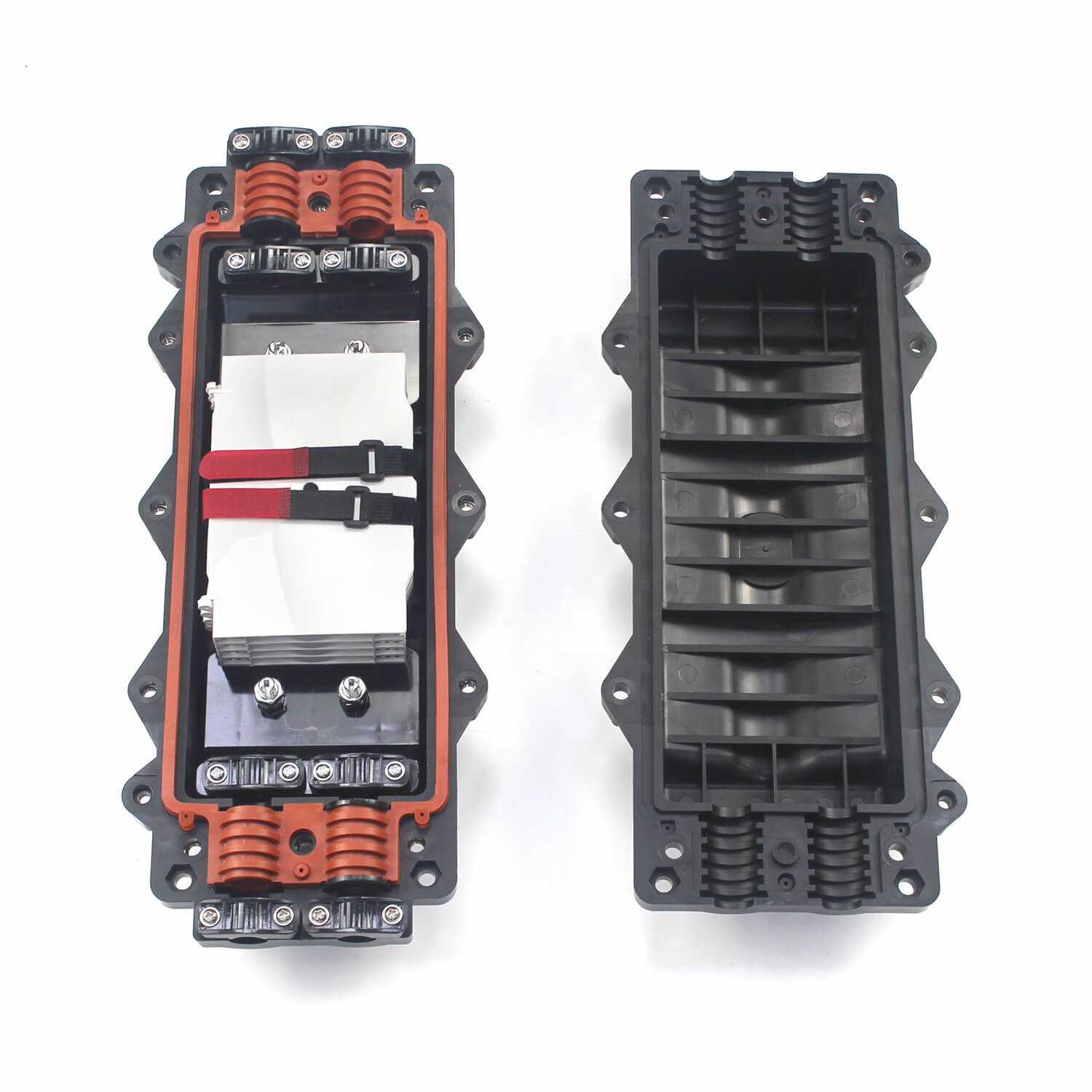

Wall Mounting 144F Fiber Optic Splice Closure PP PC Plastic With High Strength 0Wall Mounting 144F Fiber Optic Splice Closure PP PC Plastic With High Strength 1

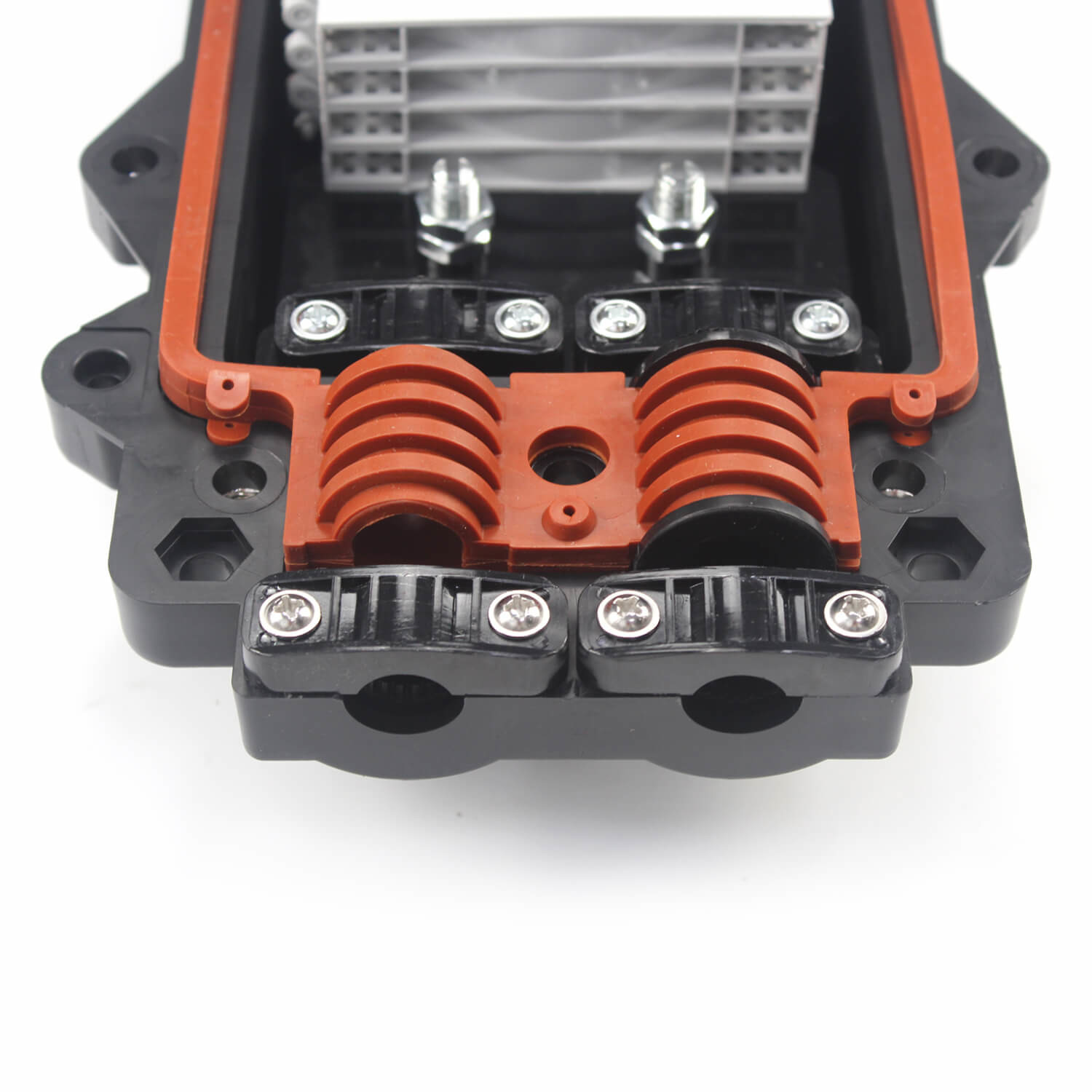

Wall Mounting 144F Fiber Optic Splice Closure PP PC Plastic With High Strength 2

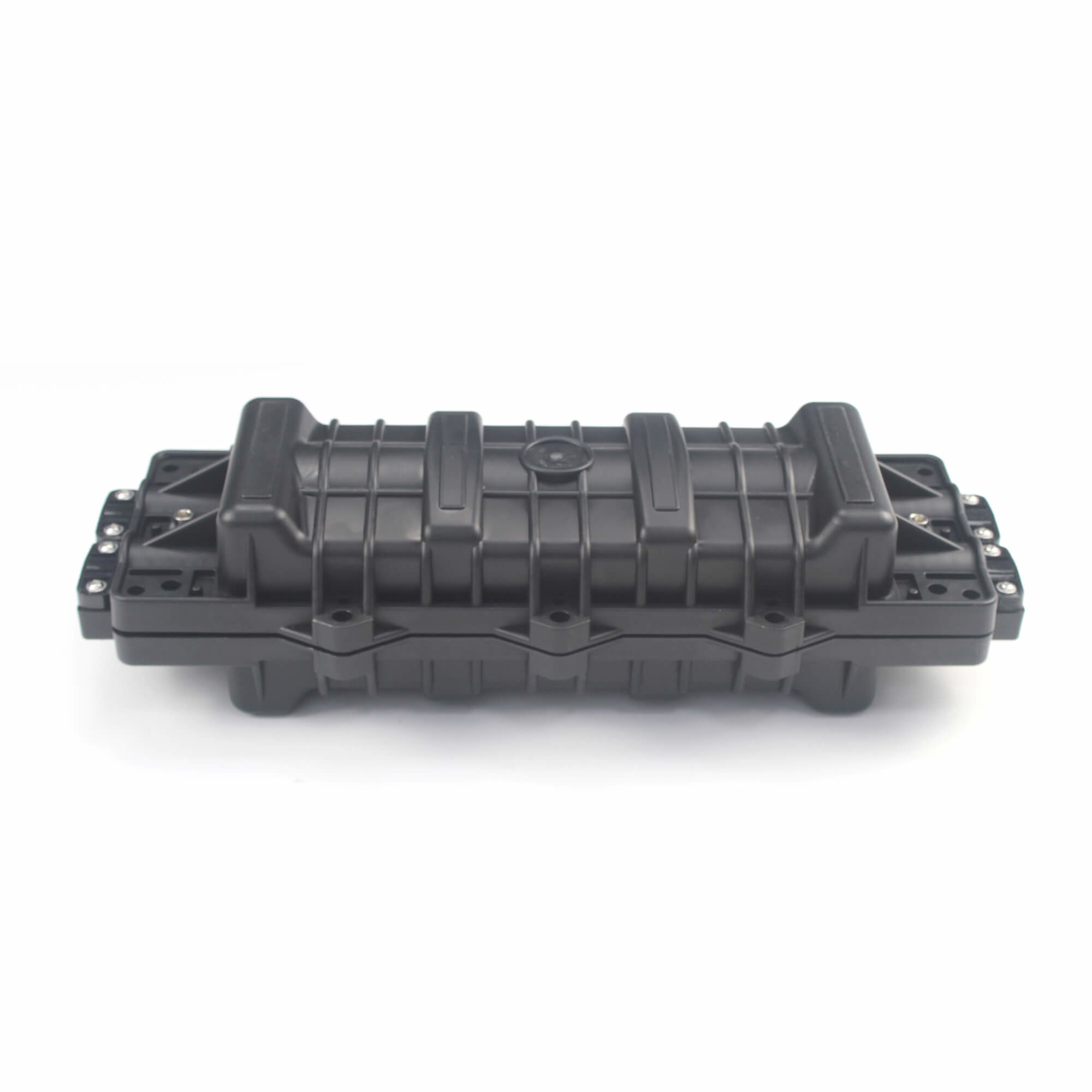

Wall Mounting 144F Fiber Optic Splice Closure PP PC Plastic With High Strength 3
