Water Resistant Fiber Optic Cable Crush Resistant With Double Jacket

Water Resistant Fiber Optic Cable Crush Resistant With Double Jacket
Water Resistant Fiber Optic Cable Crush Resistant With Double Jacket Water Resistant Fiber Optic Cable Crush Resistant With Double Jacket Water Resistant Fiber Optic Cable Crush Resistant With Double Jacket Water Resistant Fiber Optic Cable Crush Resistant With Double Jacket

Large Image :  Water Resistant Fiber Optic Cable Crush Resistant With Double Jacket

Product Details:
Place of Origin: Zhejiang, China
Brand Name: DOWELL
Model Number: GYFTA
Payment & Shipping Terms:
Minimum Order Quantity: 4KM
Delivery Time: 7- 15 Days
Payment Terms: T/T, Western Union, Paypal
Supply Ability: 100 Roll Per 7 Days
Contact Now

Water Resistant Fiber Optic Cable Crush Resistant With Double Jacket

Description
Fiber Type: G652D/G657A Fiber Count: 2-144F
Highlight:

Water Resistant Fiber Optic Cable

,

Crush Resistant Fiber Optic Cable

,

Crush Resistant custom fiber optic cables

G652D G675A1 G657A2 Fiber Optic Cable Outdoor Non-armored 2F 36F 72F 144F

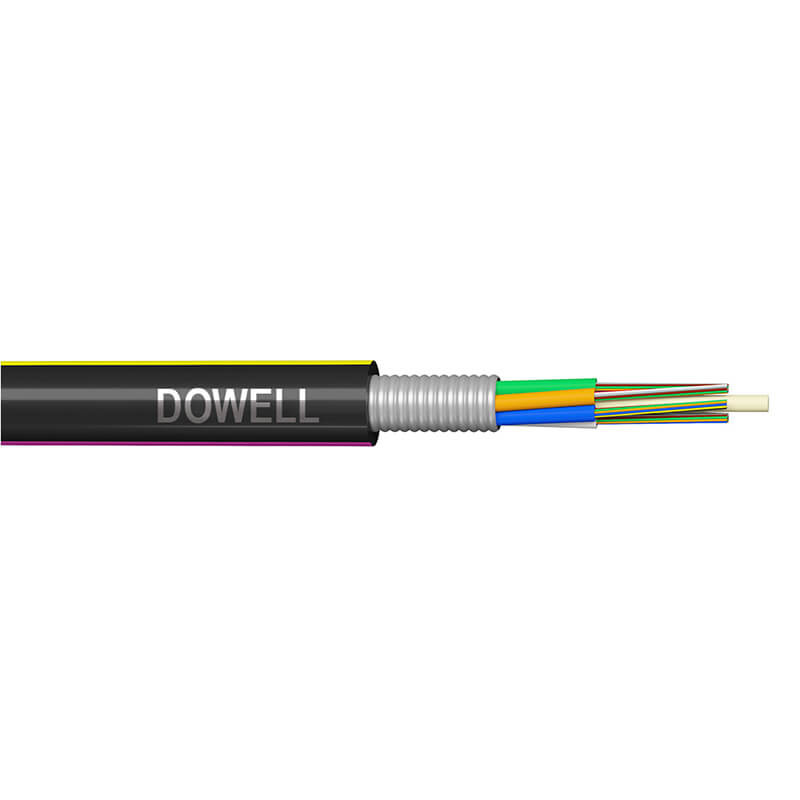

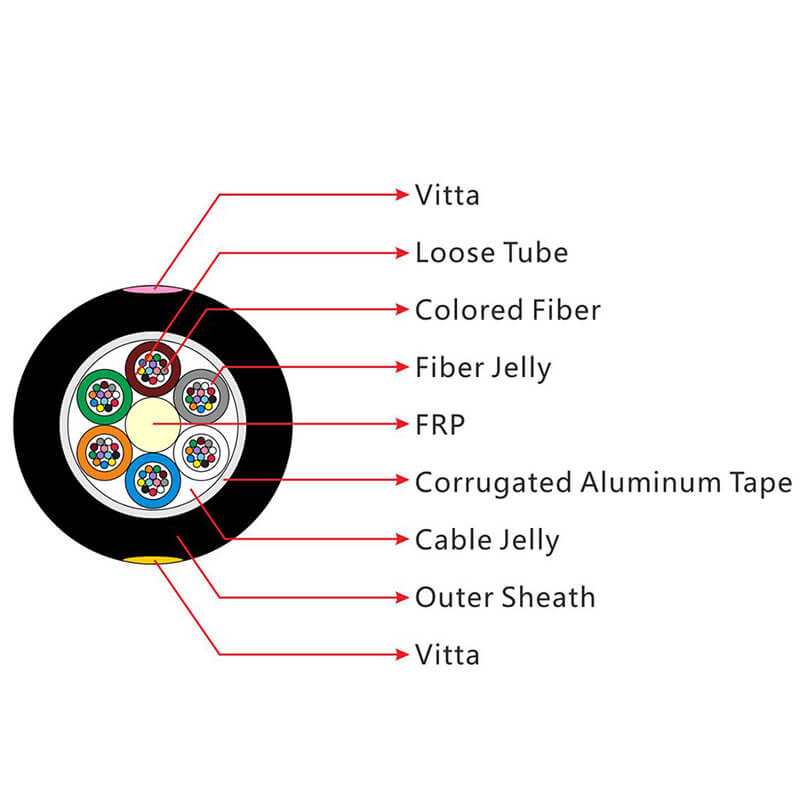

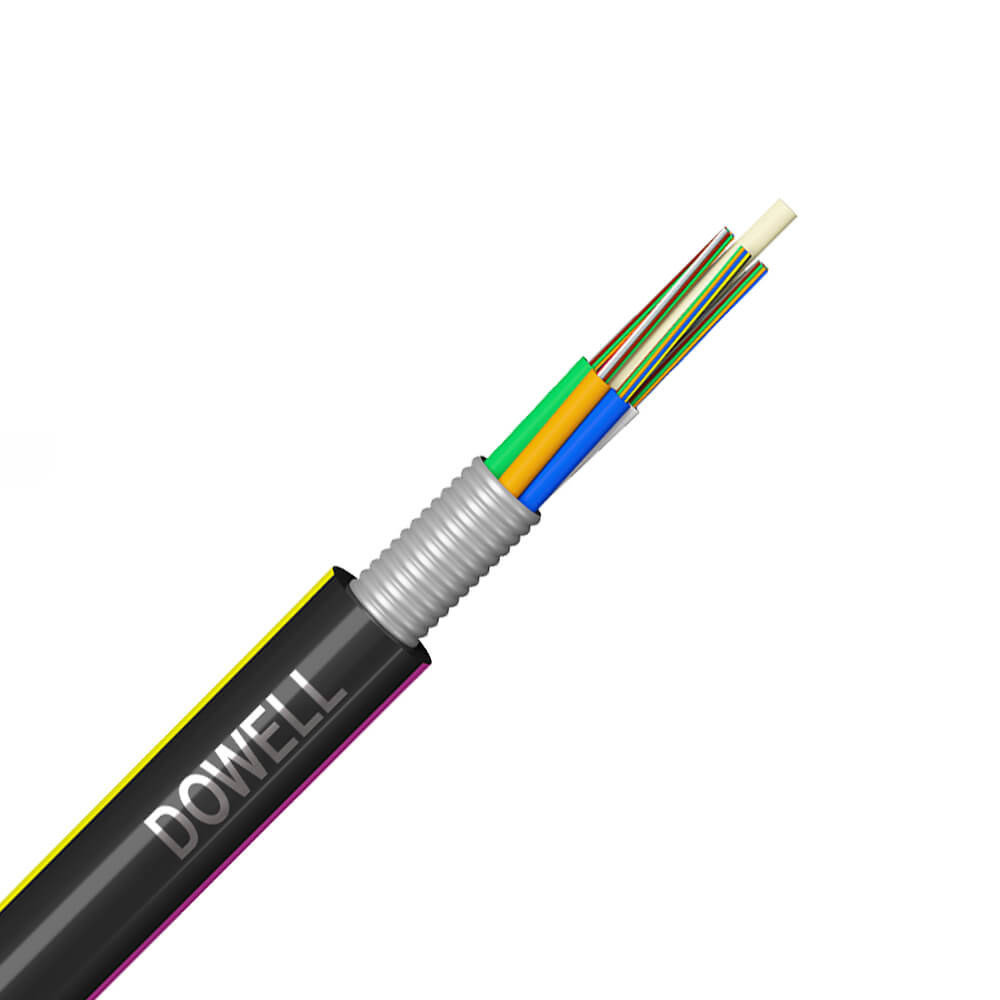

GYFTA Non-metallic Strength Member Non-armored Cable, are positioned in a loose tube made of a high modulus plastic. The tubes are filled with a water-resistant filling compound. A Fiber Reinforced Plastic(FRP),locates in the center of core as a non-metallic strength member. Tubes (and fillers) are stranded around the strength member into a compact and circular cable core. After an Aluminum Polyethylene Laminate (APL) moisture barrier is applied around the cable core, the cable is completed with a PE outer sheath.

Optical Characteristics:

  G.652 G.657 50/125um 62.5/125um
Attenuation
(+20 )		 @850nm     ≤3.0 dB/km ≤3.0 dB/km
@1300nm     ≤1.0 dB/km ≤1.0 dB/km
@1310nm ≤0.36 dB/km ≤0.36 dB/km
@1550nm ≤0.22 dB/km ≤0.23 dB/km
Bandwidth @850nm     ≥500 Mhz.km ≥500 Mhz.km
Class A 850nm @1300nm     ≥1000 Mhz.km ≥600 Mhz.km
Numerical aperture     0.200±0.015NA 0.275±0.015NA
Cable Cutoff Wavelength ≤1260nm ≤1480nm

Technical Parameters:

Cable Type Fiber Count Tube Fillers Cable
Diameter
mm		 Cable
Weight
Kg/km		 Tensile
Strength
Long/Short
Term N		 Crush
Resistance
Long/Short
Term N/100m		 Bending Radius
Static/Dynamic
mm
GYFTA-2~6 2-6 1 5 11.4 108 400/1000 300/1000 10D/20D
GYFTA-8~12 8-12 2 4 11.4 108 400/1000 300/1000 10D/20D
GYFTA-14~18 14-18 3 3 11.4 108 400/1000 300/1000 10D/20D
GYFTA-20~24 20-24 4 2 11.4 108 400/1000 300/1000 10D/20D
GYFTA-26~30 26-30 5 1 11.4 108 400/1000 300/1000 10D/20D
GYFTA-32~36 32-36 6 0 11.4 108 400/1000 300/1000 10D/20D
GYFTA-2~12 2-12 1 5 12.8 134 600/1500 300/1000 10D/20D
GYFTA-14~24 14-24 2 4 12.8 134 600/1500 300/1000 10D/20D
GYFTA-26~36 26-36 3 3 12.8 134 600/1500 300/1000 10D/20D
GYFTA-38~48 38-48 4 2 12.8 134 600/1500 300/1000 10D/20D
GYFTA-50~60 50-60 5 1 12.8 134 600/1500 300/1000 10D/20D
GYFTA-62~72 62-72 6 0 12.8 134 600/1500 300/1000 10D/20D
GYFTA-2~6 2-6 1 7 12.8 140 1000/3000 300/1000 10D/20D
GYFTA-8~12 8-12 2 6 12.8 140 1000/3000 300/1000 10D/20D
GYFTA-14~18 14-18 3 5 12.8 140 1000/3000 300/1000 10D/20D
GYFTA-20~24 20-24 4 4 12.8 140 1000/3000 300/1000 10D/20D
GYFTA-26~30 26-30 5 3 12.8 140 1000/3000 300/1000 10D/20D
GYFTA-32~36 32-36 6 2 12.8 140 1000/3000 300/1000 10D/20D
GYFTA-38~42 38-42 7 1 12.8 140 1000/3000 300/1000 10D/20D
GYFTA-44~48 44-48 8 0 12.8 140 1000/3000 300/1000 10D/20D
GYFTA-50~60 50-60 5 3 14.8 176 1000/3000 300/1000 10D/20D
GYFTA-62~72 62-72 6 2 14.8 176 1000/3000 300/1000 10D/20D
GYFTA-74~84 74-84 7 1 14.8 176 1000/3000 300/1000 10D/20D
GYFTA-86~96 86-96 8 0 14.8 176 1000/3000 300/1000 10D/20D
GYFTA-98~108 98-108 9 1 17.1 226 1000/3000 300/1000 10D/20D
GYFTA-110~120 110-120 10 0 17.1 226 1000/3000 300/1000 10D/20D
GYFTA-122~132 122-132 11 1 19.2 279 1000/3000 300/1000 10D/20D
GYFTA-134~144 134-144 12 0 19.2 279 1000/3000 300/1000 10D/20D
Characteristics:
1.1 Good mechanical and temperature performance
1.2 High strength loose tube that is hydrolysis resistant
1.3 Special tube filling compound ensure a critical protection of fiber
1.4 Specially designed compact structure is good at preventing loose tubes from shrinking
1.5 PE sheath protects cable from ultraviolet radiation
1.6 The following measures are taken to ensure the cable watertight:
- Single Fiber Reinforced Plastic as the central strength member
- Loose tube filling compound
- 100% cable core filling
- APL moisture barrier

Application:

Water Resistant Fiber Optic Cable Crush Resistant With Double Jacket 0

Package:

Water Resistant Fiber Optic Cable Crush Resistant With Double Jacket 1

Production Flow:

Water Resistant Fiber Optic Cable Crush Resistant With Double Jacket 2

Tag:

multimode fiber cable,

GYTS fiber cable,

fiber optic wire
