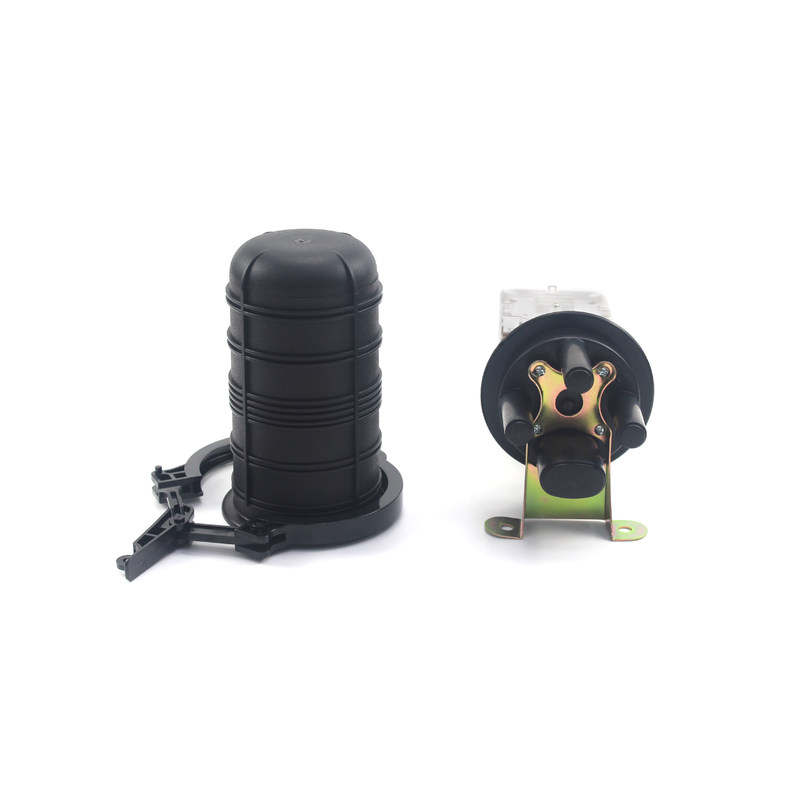

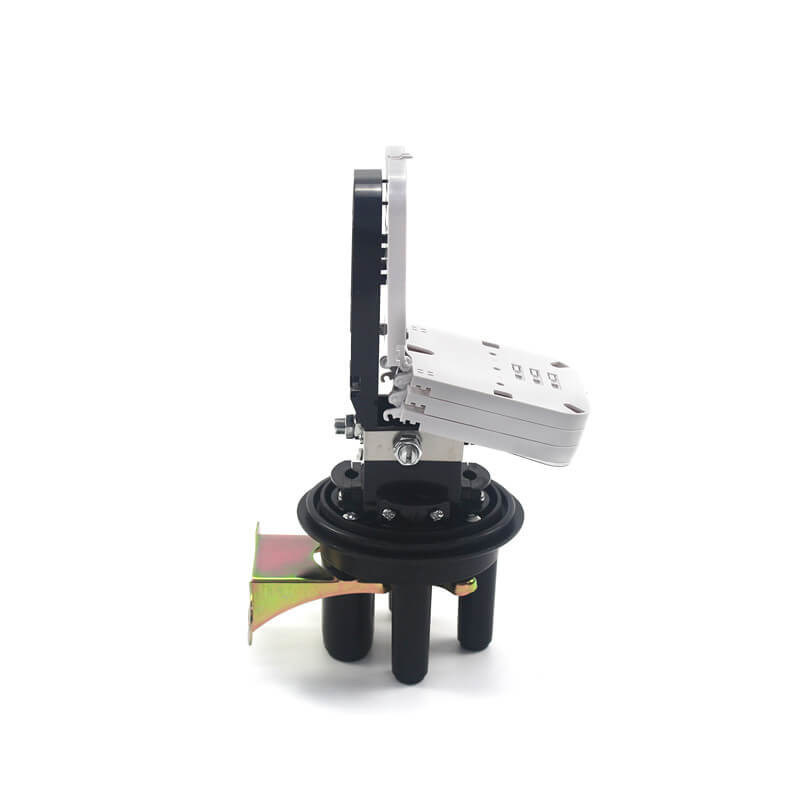

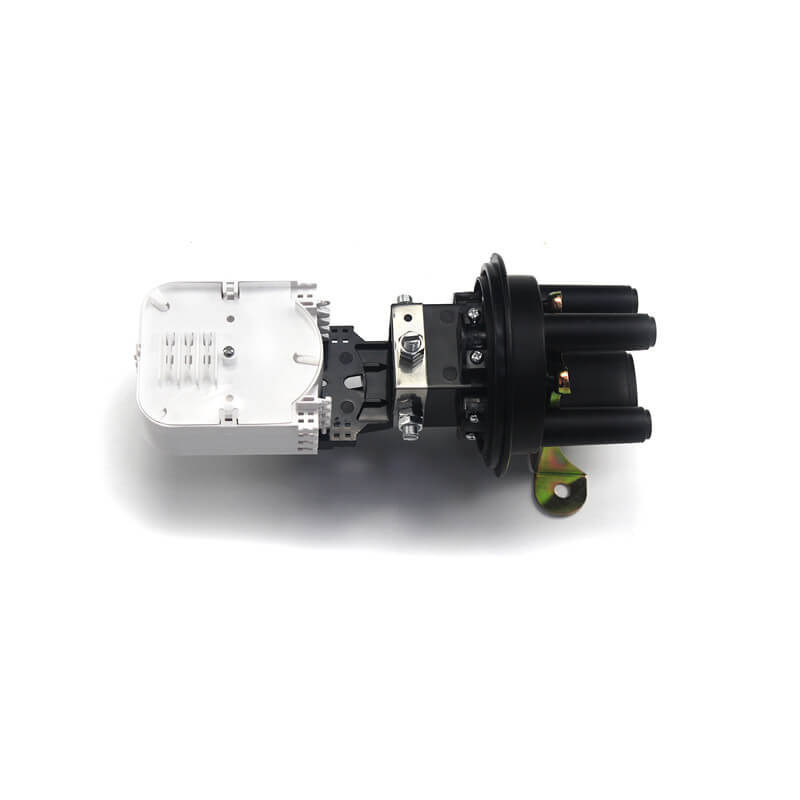

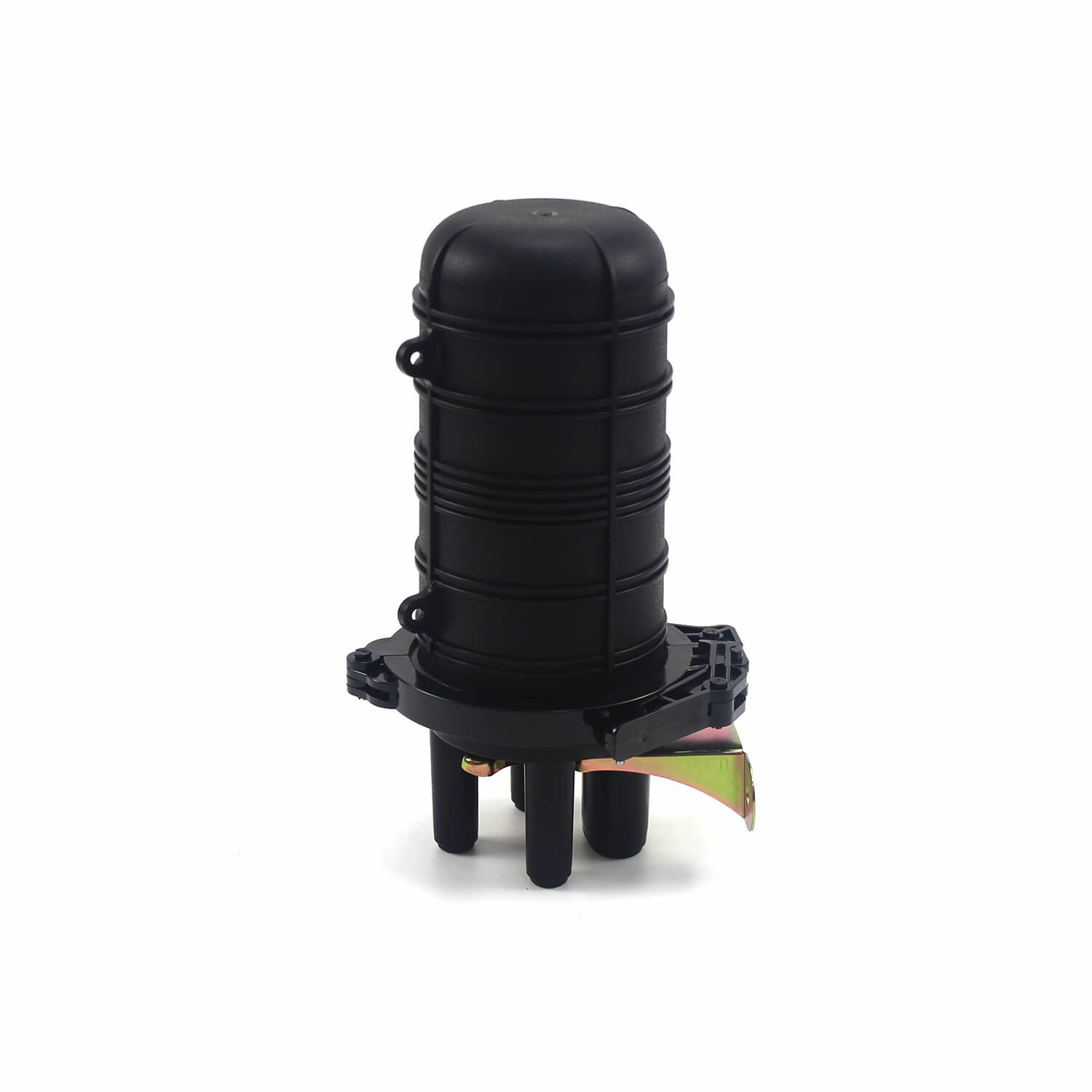

48FO Optical Splice Closure Fiber Dome Enclosure 1 In 3 Out Dustproof Waterproof

Large Image : 48FO Optical Splice Closure Fiber Dome Enclosure 1 In 3 Out Dustproof Waterproof

Product Details:

Place of Origin:	Zhejiang, China
Brand Name:	DOWELL
Model Number:	FOSC-D3-H

Payment & Shipping Terms:

Minimum Order Quantity:	200pieces
Delivery Time:	7-15 Days
Payment Terms:	T/T, Western Union, Paypal
Supply Ability:	1000 PCS Per 7 Days

Contact Now

48FO Optical Splice Closure Fiber Dome Enclosure 1 In 3 Out Dustproof Waterproof

Description

Splice Tray:	4pcs	Total Splice:	48 FO
Splice Capacity For Each Tray:	6/12FO	Oval Port Can Cable Dia. (max.):	1×Ø25 Or 2×Ø21
Color:	Black	Ip Rating:	IP65、IP67、IP68
Highlight:	Dustproof Optical Splice Closure , Dustproof Fiber Dome Enclosure , Waterproof Optical Splice Closure

48FO Optical Fibre Cable Joint Closure 1 In 3 Out Dustproof Waterproof

The Closure provides perfect solutions for the protection of fiber splice points from the environment, especially from the permeation of water. Suitable for aerial, cable duct, direct buried, pedestal. Reliable gasket sealing system rated to IP68. Compact size but with full function. Dome type heat shrinkable seal ports.

Specifications

Outside Dimensions	300×Ø180mm
Circular ports and cable dia, (max.)	3×Ø16mm
Oval port can cable dia. (max.)	1×Ø25 or 2×Ø21
Splice tray count	4pcs
Splice capacity for each tray	6/12FO
Total Splice	48 FO

Features & Benefits:

1. Compact size but with full function.

2. Dome type heat shrinkable seal ports.

3. Reliable gasket sealing system rated to IP68.

Application:

1. FTTH access network
2. Telecommunication Networks
3. CATV Networks
4. Data communications Networks
5.Local Area Networks
