Detail Information

Insertion Lose:	0.2 DB (Zr. Ceramic)	Durability:	0.2 DB (500 Cycle Passed)
Storage Temp.:	- 40°C To +85°C	Humidity:	95% RH (Non Packaging)
Loading Test:	≥ 70 N	Insert And Draw Frequency:	≥ 500 Times
Highlight:	sc adsl vdsl tester , sc network cable crimping tools , apc adsl vdsl tester

Product Description

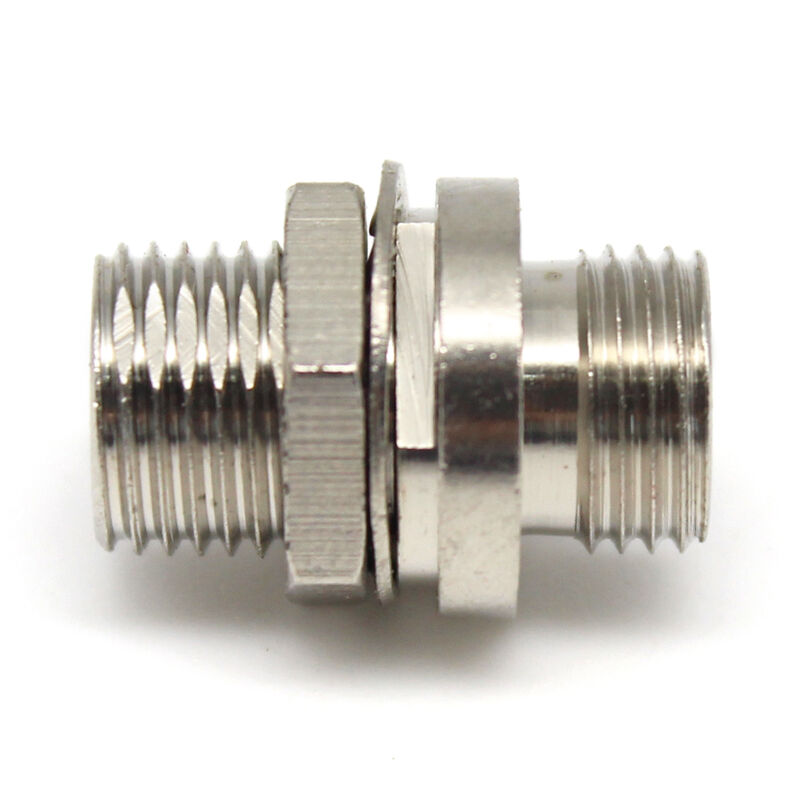

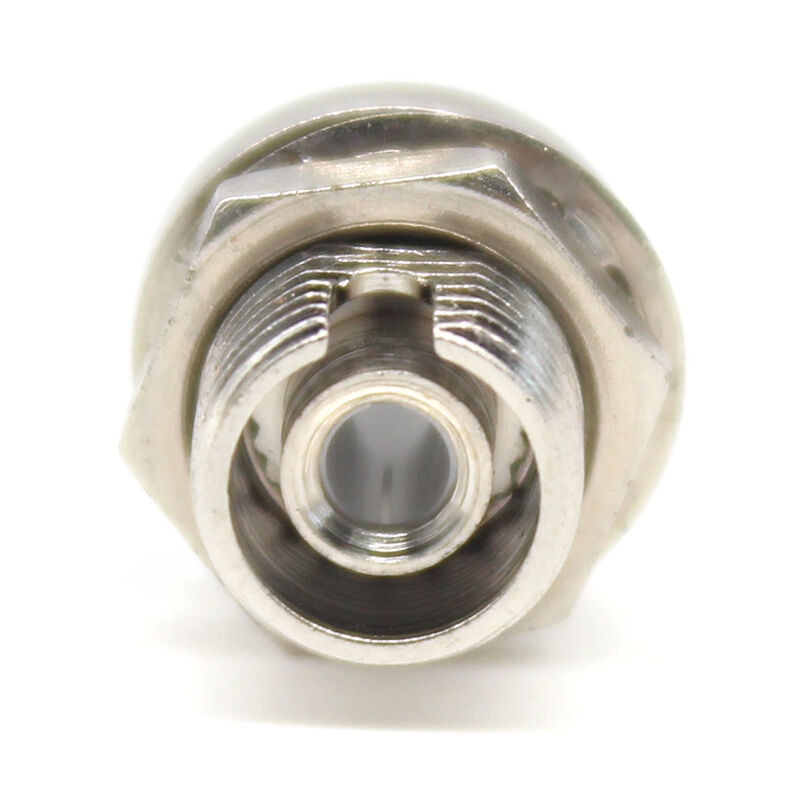

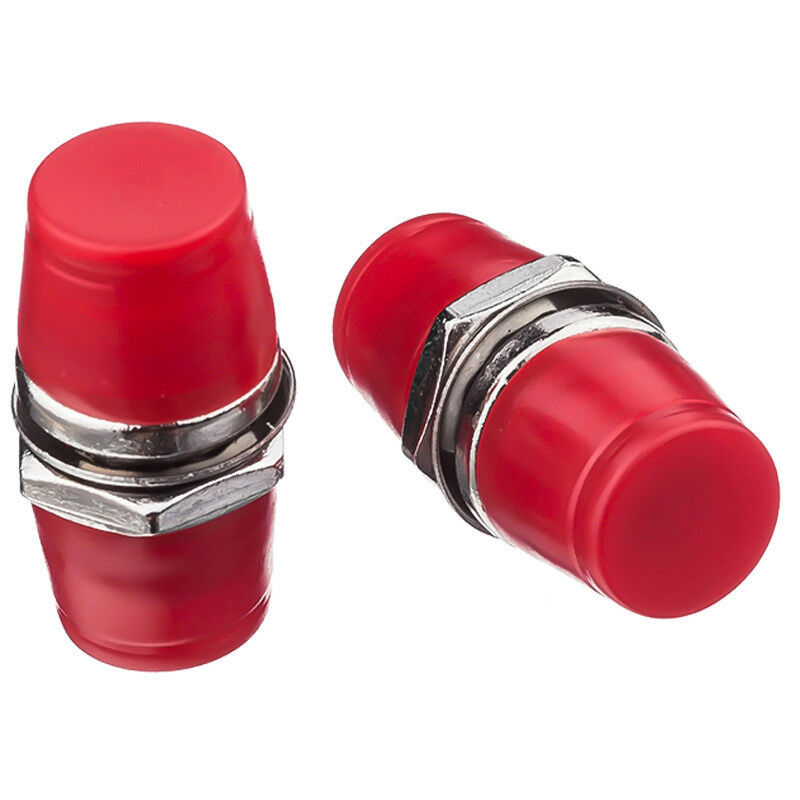

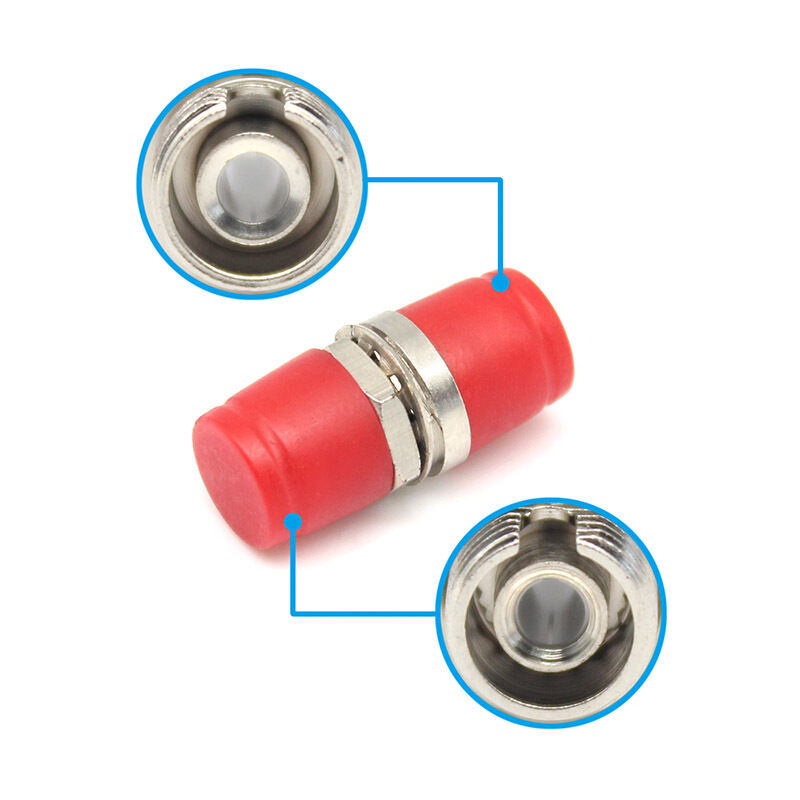

Insertion Loss 0.2 dB Singlemode Coupler D Type FC UPC Fiber Optic Adapter

A fiber optic adapter is a passive hardware component used to connect two fiber optic connectors together, enabling the optical signal to pass from one cable to the other with minimal loss. They serve as the connection interface that allows fiber optic connectors to plug in securely.

Specifications

Insertion Loss	0.2 dB (Zr. Ceramic)
Durability	0.2 dB (500 Cycle Passed)
Storage Temperature	-40°C to +85°C
Humidity	95% RH (Non Packaging)
Loading Test	≥ 70 N
Insert and Draw Frequency	≥ 500 times

Key Features

Polish Type

PC (Physical Contact): Slight dome for minimal air gap. Common for multimode applications.
UPC (Ultra Physical Contact): Higher grade polish with lower loss and low back reflection (-50dB+). Standard for most modern single-mode systems.
APC (Angled Physical Contact): 8-degree angled endface with very low back reflection (-65dB+). Crucial for RF video and high-speed PON applications.

Important: APC connectors (green) can ONLY mate with other APC connectors. Mating APC with UPC will damage the endfaces.

Alignment Sleeve Material

Ceramic (Zirconia): The gold standard - extremely hard, precise, durable, and provides the lowest loss. Used in almost all single-mode and high-quality multimode adapters.
Phosphor Bronze: Metal sleeve, less expensive. Used primarily for multimode applications. Less durable over many mating cycles.
Polymer: Plastic sleeve, lowest cost. For less critical, short-distance multimode use.

Performance Characteristics

Insertion Loss (IL): The amount of signal power lost at the connection. Typically < 0.2 dB for high-quality adapters with matched connectors.
Return Loss (RL): The amount of light reflected back toward the source. Higher (more negative) numbers are better (e.g., -50dB for UPC, -65dB for APC).
Flange Type: How the adapter is mounted - Square Flange (most common for SC and LC) or Round Flange (often used for ST adapters).

Applications

CATV Systems
Telecommunications Networks
Optical Network Infrastructure
Testing and Measurement Instruments
Fiber To The Home (FTTH) Installations

Tag:

Place of Origin:	Zhejiang, China
Brand Name:	DOWELL
Model Number:	DW-FUS-D

Minimum Order Quantity:	1000 pieces
Delivery Time:	7-15 days
Payment Terms:	T/T
Supply Ability:	10000pcs per 7 days

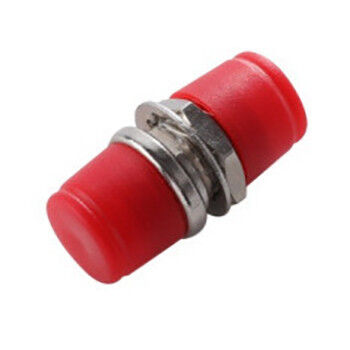

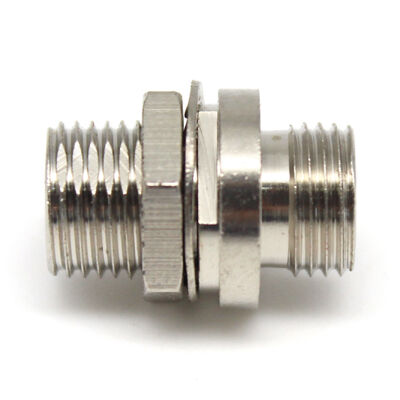

0.2 dB Insertion Loss FC UPC Fiber Optic Adapter with Zr. Ceramic Sleeve and 500 Cycle Durability
