Product Details:
|
| Outside Dimension: | 472mm×193mm | Weight: | 3000 G— 3600g |
|---|---|---|---|
| Capacity: | Bunchy:24-96 (cores), Ribbon: Up To384 (cores) | Number Ofinlet/out Ports: | 4+1 Pieces In General |

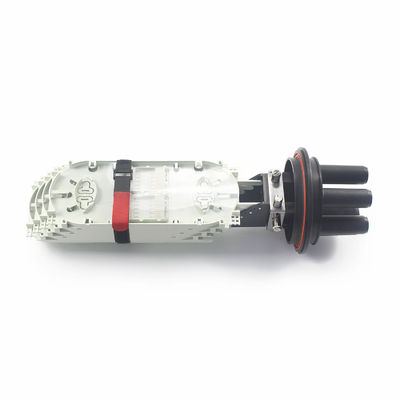

Heat Shrinkable Fiber Dome Closure 1 In 4 Out 24FO To 96FO 4pcs Fost

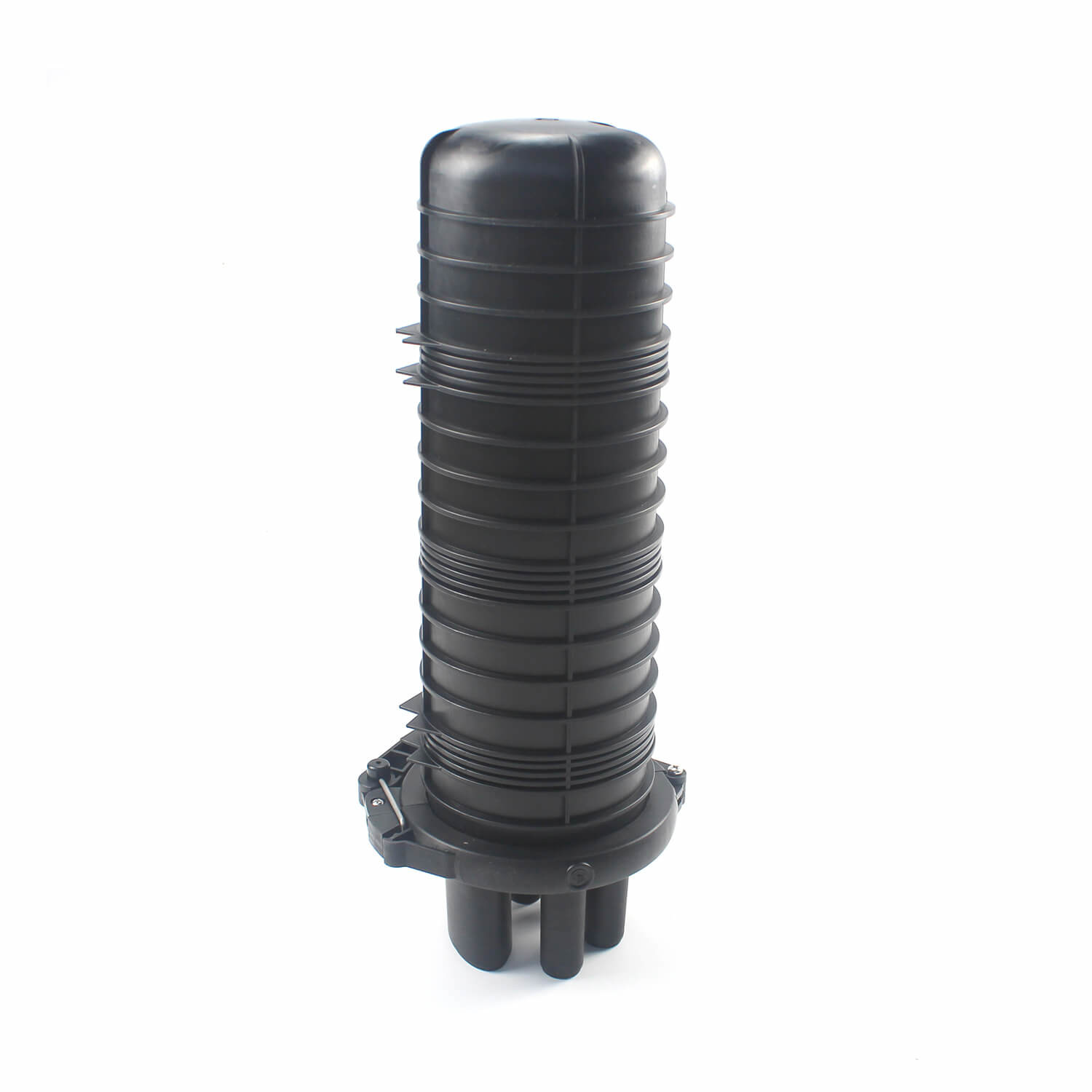

Vertical fiber optic closure looks like a dome, thus it is also called dome fiber optic splice closure or fiber dome closure. The dome shape makes it easy to be buried in many applications, though it also can be used above-ground as well. Due to the growing network demands, there is a wide range of models and configurations of vertical fiber optic splice closures. High-capacity versions and variations in the number of splicing trays are also available in the market to meet the complex needs of today’s fiber-optic networks.
Specification
| Capacity of FOSC | Bunchy:24-96 (cores) |
| Ribbon: up to384 (cores) | |
| Diameter offiber cable | Φ8mm~Φ20mm |
| Number ofinlet/out ports | 4+1 pieces in general |
| Weight (excluding outside box) | 3000g— 3600g |
| Outside dimension (Height x Diameter) | 472mm×193mm |
| Name of accessories | Quantity | Usage | Remarks |

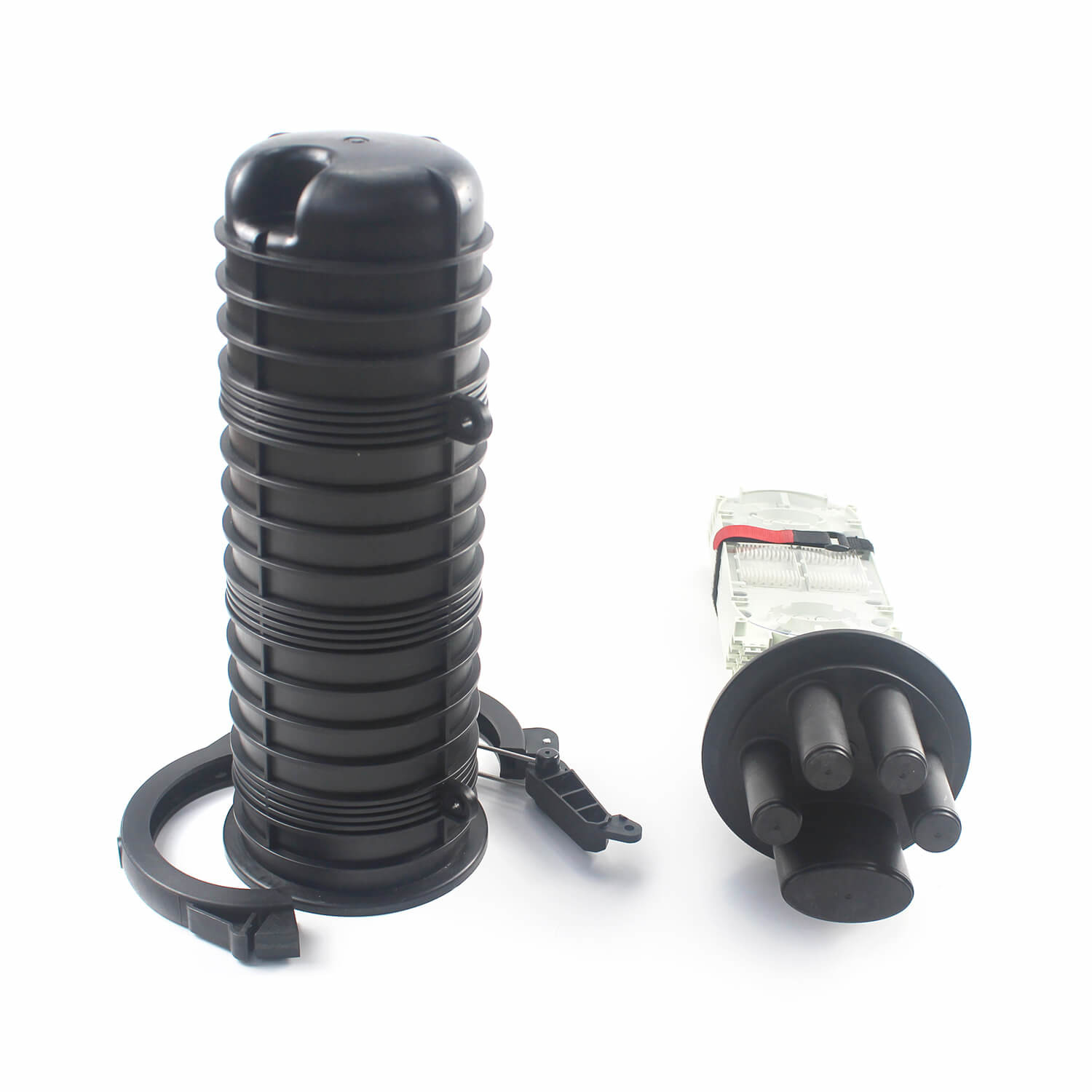

| FOSC cover | 1 piece | Protecting fiber cable splices in whole |
Height x Diameter: 385mm x 147mm |

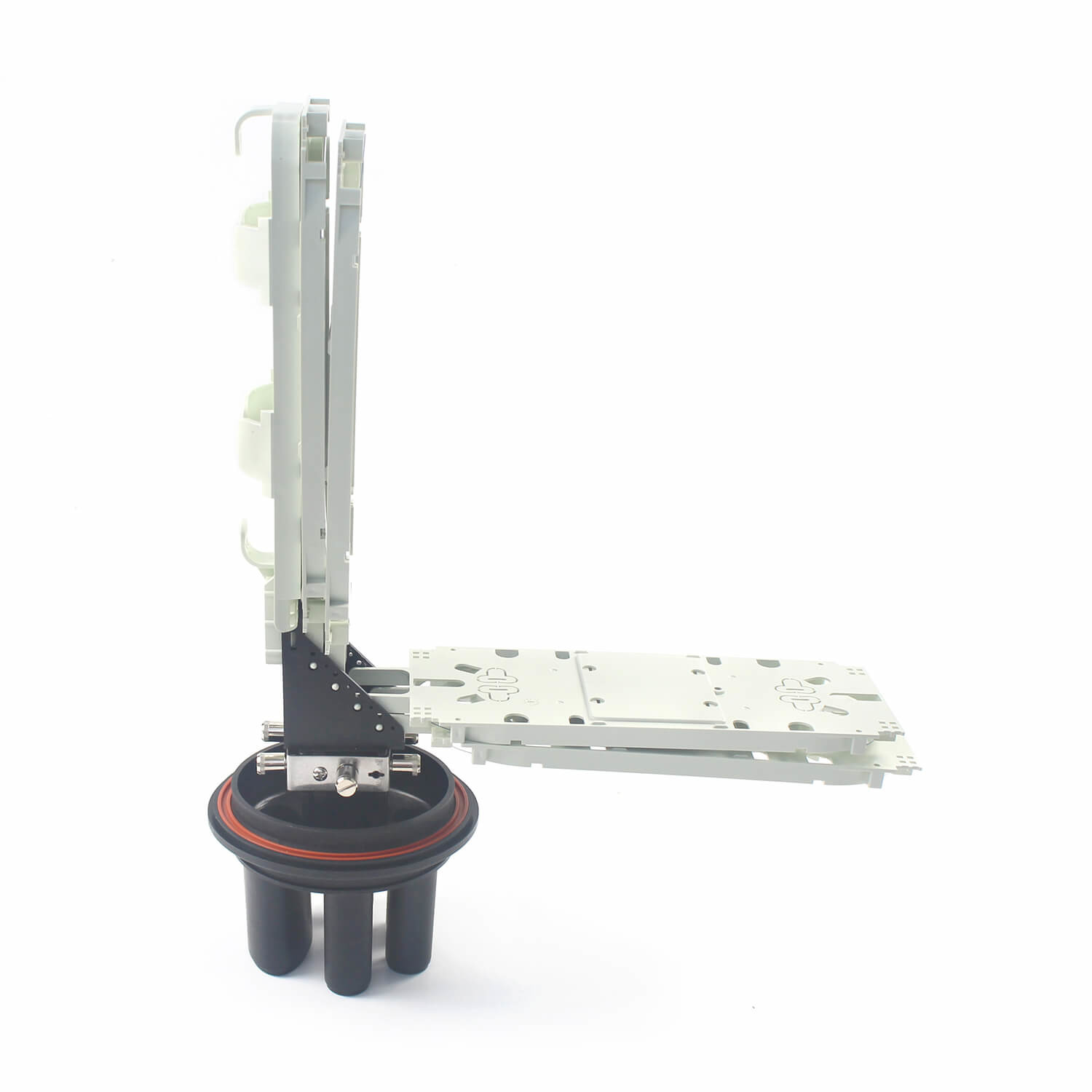

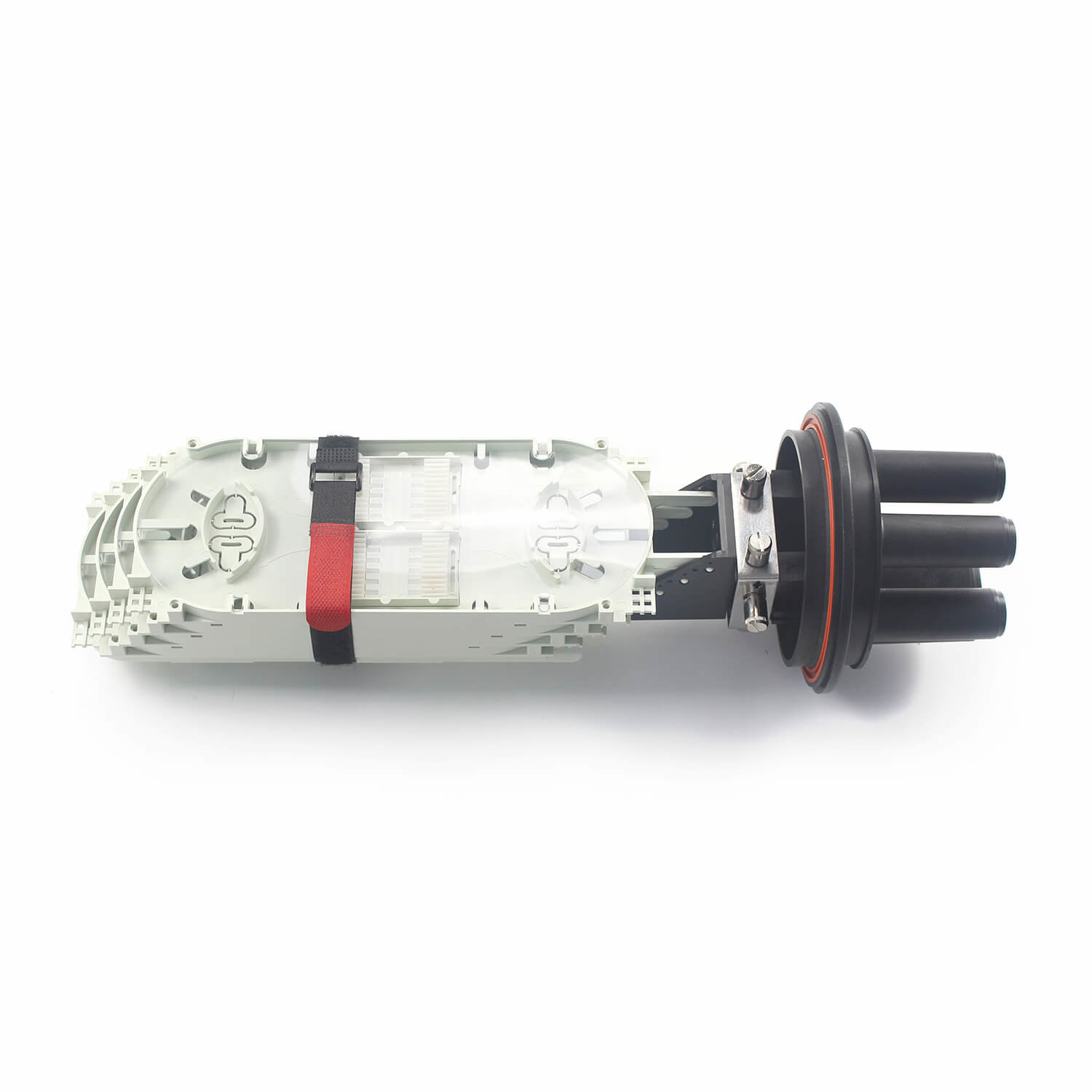

| Fiber optic splice tray (FOST) | Max. 4 trays (bunchy) Ribbon 1pcs |
Fixing heat shrinkable protective sleeve and holding fibers |
Suitable for: Bunchy:24(cores) Ribbon:12 (pieces) |
| Fiber holding tray | Holding fibers with protective coat | ||
| Base | 1set | Fixing internal and external structure | |
| Plastic hoop | 1 set | Fixing between FOSC cover and base | |
| Seal fitting | 1 piece | Sealing between FOSC cover and base | |
| Pressure testing valve | 1 set | After inject air, it is used for pressure testing and sealing testing |
Configuration as per requirement |
| Earthing deriving device |
1 set | Deriving metal parts of fiber cables in FOSC for earthing connection | Configuration as per requirement |
