96 Cores Fiber Optic Splice Closure Outdoor Reinforced Plastic For Data Center

96 Cores Fiber Optic Splice Closure Outdoor Reinforced Plastic For Data Center
96 Cores Fiber Optic Splice Closure Outdoor Reinforced Plastic For Data Center
96 Cores Fiber Optic Splice Closure Outdoor Reinforced Plastic For Data Center 96 Cores Fiber Optic Splice Closure Outdoor Reinforced Plastic For Data Center 96 Cores Fiber Optic Splice Closure Outdoor Reinforced Plastic For Data Center 96 Cores Fiber Optic Splice Closure Outdoor Reinforced Plastic For Data Center 96 Cores Fiber Optic Splice Closure Outdoor Reinforced Plastic For Data Center

Large Image :  96 Cores Fiber Optic Splice Closure Outdoor Reinforced Plastic For Data Center

Product Details:
Place of Origin: Zhejiang, China
Brand Name: DOWELL
Model Number: FOSC-D4B-H
Payment & Shipping Terms:
Minimum Order Quantity: 200 pieces
Delivery Time: 7-15 Days
Payment Terms: T/T, Western Union, Paypal
Supply Ability: 1000 PCS Per 7 Days
Contact Now

96 Cores Fiber Optic Splice Closure Outdoor Reinforced Plastic For Data Center

Description
Material: PC, ABS, SMC, PC+ABS Or SPCC Color: Black, OEM
Outside Dimension: 472mm×193mm Weight: 3000 G— 3600g
Number Ofinlet/out Ports: 4+1 Pieces In General Capacity: Bunchy:24-96 (cores), Ribbon: Up To384 (cores)
Highlight:

Outdoor Fiber Optic Splice Closure

,

Outdoor fiber joint closure

,

Reinforced Plastic Fiber Optic Splice Closure

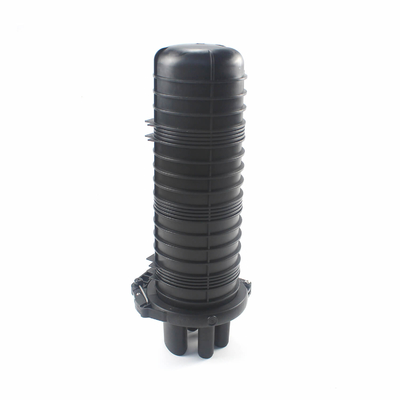

96 Cores Outdoor Dome Fiber Enclosure Reinforced Plastic For Data Center

Vertical fiber optic closure looks like a dome, thus it is also called dome fiber optic splice closure or fiber dome closure. The dome shape makes it easy to be buried in many applications, though it also can be used above-ground as well. Due to the growing network demands, there is a wide range of models and configurations of vertical fiber optic splice closures. High-capacity versions and variations in the number of splicing trays are also available in the market to meet the complex needs of today’s fiber-optic networks.

Specification:

Capacity of FOSC Bunchy:24-96 (cores)
Ribbon: up to384 (cores)
Diameter offiber cable Φ8mm~Φ20mm
Number ofinlet/out ports 4+1 pieces in general
Weight (excluding outside box) 3000g— 3600g
Outside dimension (Height x Diameter) 472mm×193mm

Main components:

Name of accessories Quantity Usage Remarks
FOSC cover 1 piece Protecting fiber cable splices in whole

Height x Diameter:

385mm x 147mm
Fiber optic splice tray (FOST) Max. 4 trays
(bunchy)
Ribbon 1pcs		 Fixing heat shrinkable
protective sleeve and holding fibers		 Suitable for:
Bunchy:24(cores)
Ribbon:12 (pieces)
Fiber holding tray Holding fibers with protective coat
Base 1set Fixing internal and external structure
Plastic hoop 1 set Fixing between FOSC cover and base
Seal fitting 1 piece Sealing between FOSC cover and base
Pressure testing valve 1 set After inject air, it is used for pressure testing and sealing
testing		 Configuration as per
requirement
Earthing deriving
device		 1 set Deriving metal parts of fiber cables in FOSC for earthing connection Configuration as per
requirement
Installation flow chart:
① Open the closure
② Determine length of fiber cable to be fixed and stripped inside FOSC
③ Strip off protective coats of fiber cable and fiber
④ Separate fiber cores and prepare work prior to fixing fiber cable
⑤ Fix reinforced core, and pyrocondense, fix and seal fiber cable
⑥ Splice fibers
⑦ Install heat shrinkable protective sleeve and house fibers
⑧ Check up comprehensively
⑨ Assemble FOSC housing and fix FOSC

Application:

The Closure provides perfect solutions for the protection of fiber splice points from the environment, especially from the permeation of water. Suitable for aerial, cable duct, direct buried, pedestal.

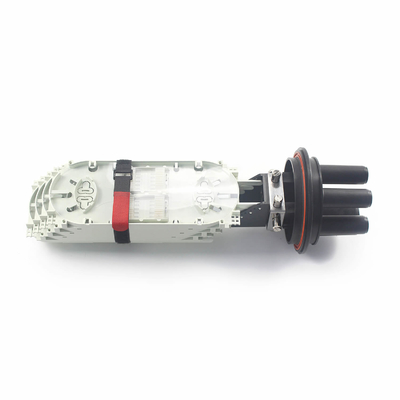

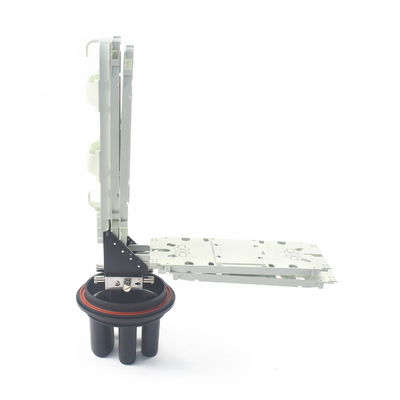

More Details Show:

96 Cores Fiber Optic Splice Closure Outdoor Reinforced Plastic For Data Center 0

96 Cores Fiber Optic Splice Closure Outdoor Reinforced Plastic For Data Center 196 Cores Fiber Optic Splice Closure Outdoor Reinforced Plastic For Data Center 2

Related Products:

96 Cores Fiber Optic Splice Closure Outdoor Reinforced Plastic For Data Center 3
