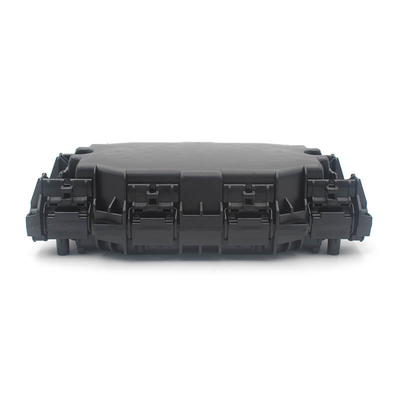

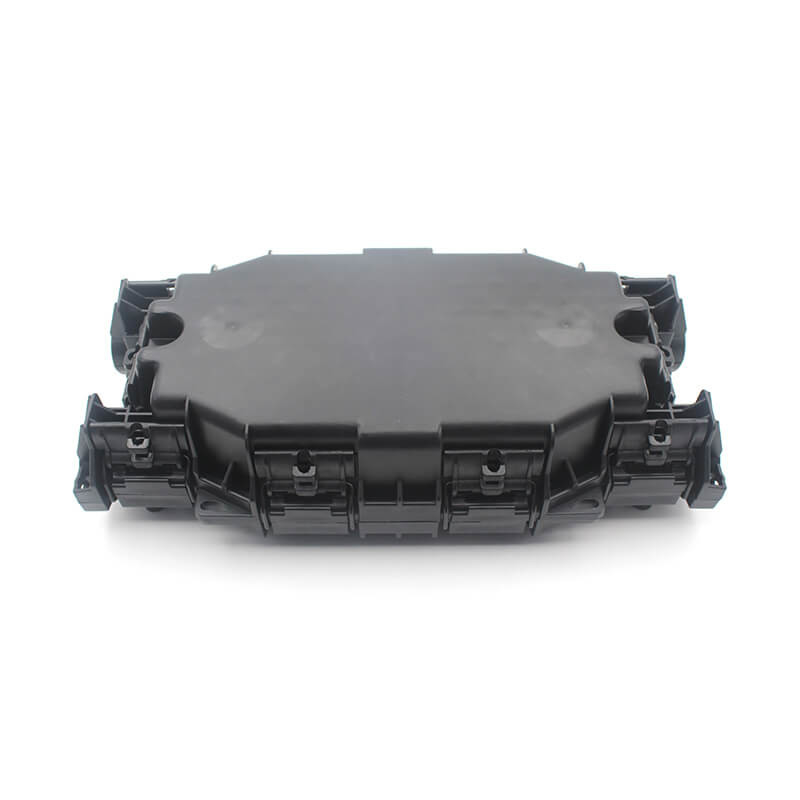

Horizontal Fiber Optic Splice Closure 2 In 2 Out Underground Wall Mounting

Horizontal Fiber Optic Splice Closure 2 In 2 Out Underground wall-mounting​

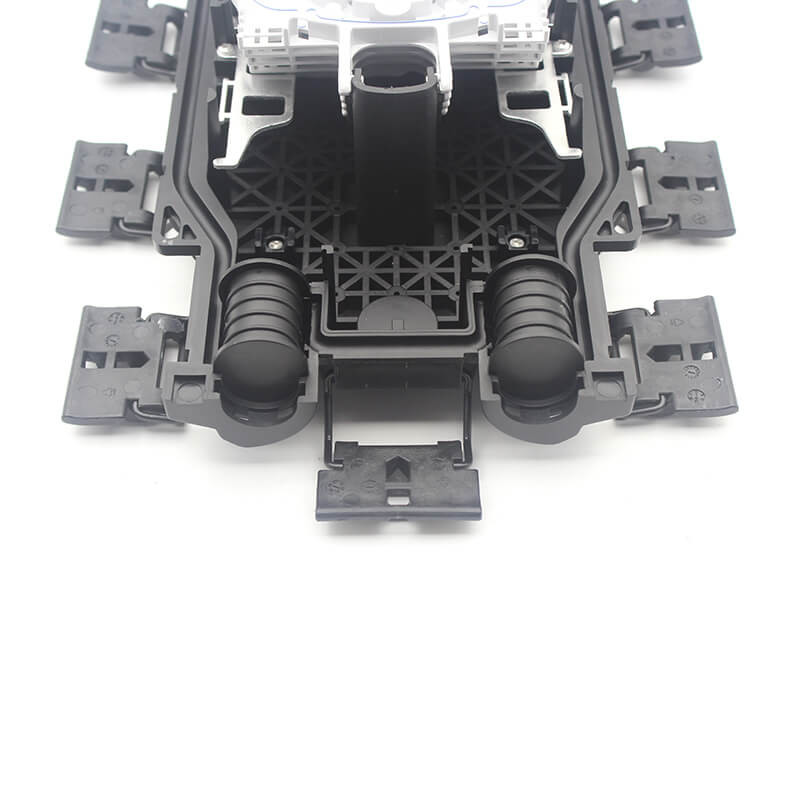

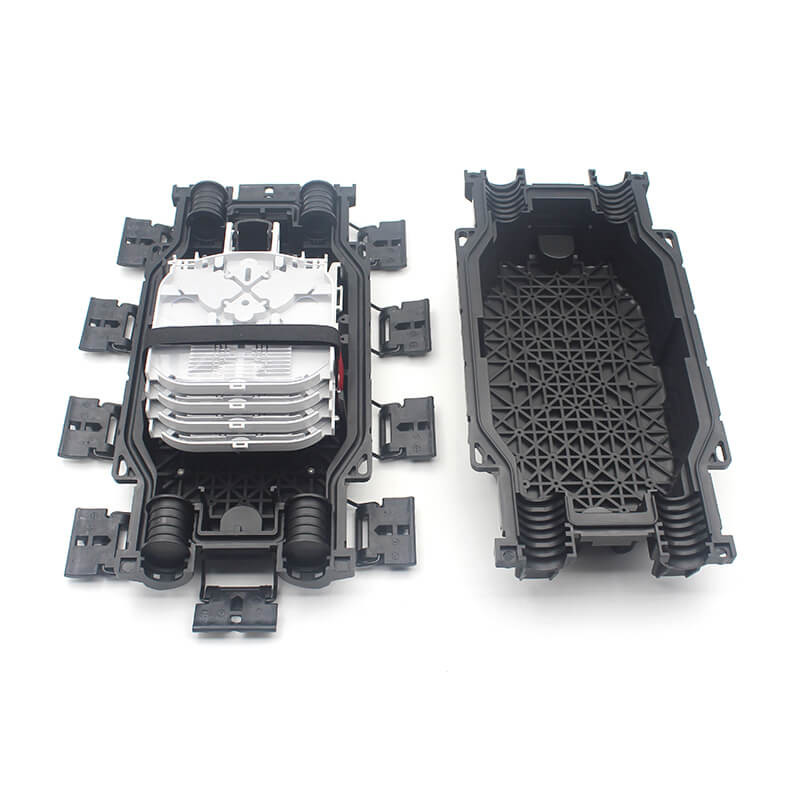

Horizontal type fiber closure is like a flat or cyclindrical. This type of fiber splice closure is the most commonly used one in mounted aerials or buried underground. Usually contains one or more fiber splice trays to provide space and protection for fiber optic splices. The scope of application is: aerial, underground, wall-mounting, duct-mounting, handhole-mounting. The ambient temperature ranges from -45℃ to +65℃.

Dimension And Capacity

Necessary Tools For Installation

The process of installing FOSC

Type 1. In the optical cable opening of the end of the 50mm to keep the strengthening of the reinforcement bar.

Type 2. Will need to be fused to disconnect the cable from the middle

Type3. Install and lock the cable in the cable sheath and attach the cable to the cable.​

Type 4. With electrical tape to the optical cable hoop protruding part of the tight.

Type 5. Select the outer diameter of the cable slightly larger than the sealing clip ring to cut off. Place the end part of the rubber strip in the middle of the two sealing ring and use the finger to put the glue on the cable. To maintain the natural state of the adhesive tape or a slight force, in order to make the wrapped layers of adhesive layers of clothing, no obvious gap.
