Product Details:
|
| Number Of Inlet/out Ports: | 5 Pieces In General | Capacity Of FOSC: | Bunchy: 24-96(cores), Ribbon: Up To 288(cores) |
|---|---|---|---|
| Weight: | 2350g-3500g | Dimension: | 460mm×205mm |

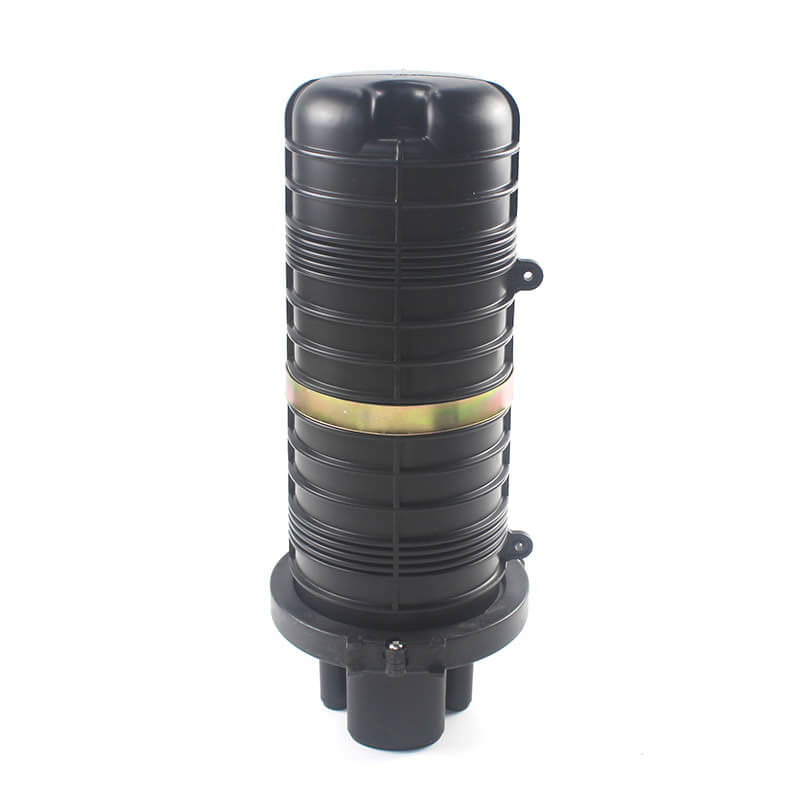

5 Ports 1 In 4 Out Fiber Optic Cable Junction Box Closure 24F 48 Cores 96 Cores
There is a wide variety of fiber optic splice closures. Some closures are designed for connecting several smaller cables to a larger one for breaking out the larger cable to several destinations.
Some are designed for concatenation of long distance cables where two identical cables are spliced together. Closures can be used for midspan sccessories, where the cable jacket is stripped but most of the buffer tubes are coiled inside without opening, while one or more tubes will be opened and fibers spliced to other cables. Closures for FTTH preterminated cables (plug & play) may have connector mating adapters inside the closure to create a patch panel for the factory made drop cables.
Specification
| Outside dimension (Height x Diameter) | 460mm×205mm |
| Weight (excluding outside box) | 2350g-3500g |
| Number of inlet/out ports | 5 pieces in general |
| Diameter of fiber cable | Φ8mm～Φ25 mm |
| Capacity of FOSC | Bunchy: 24-96(cores) |
| Ribbon: up to288(cores) |

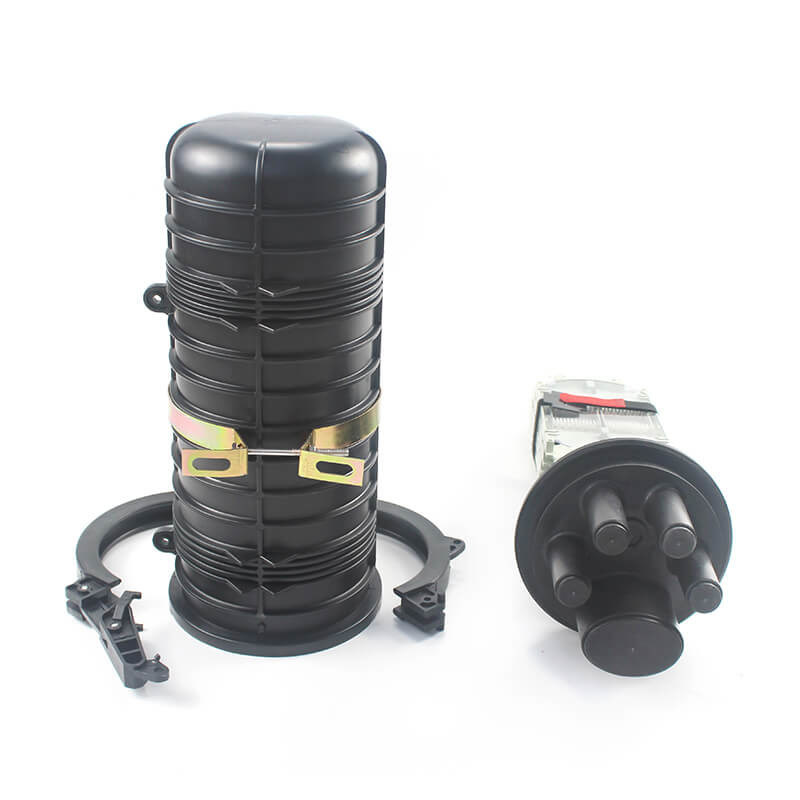

| Name of components | Quantity | Usage | Remarks |
| FOSC cover | 1 piece | Protecting fiber cable splices in whole |
Height x Diameter 355mm x 150mm |

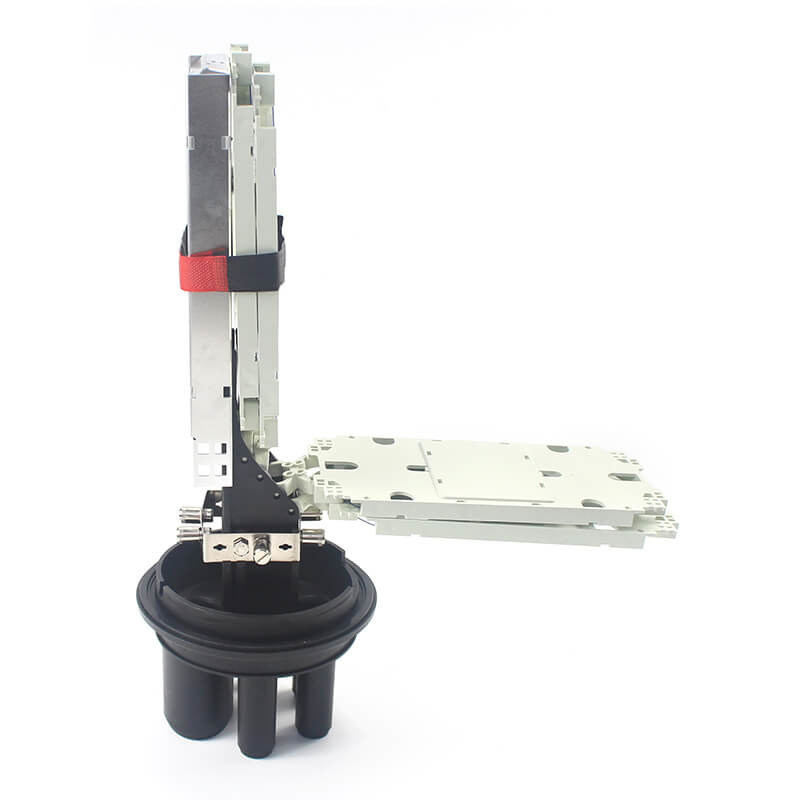

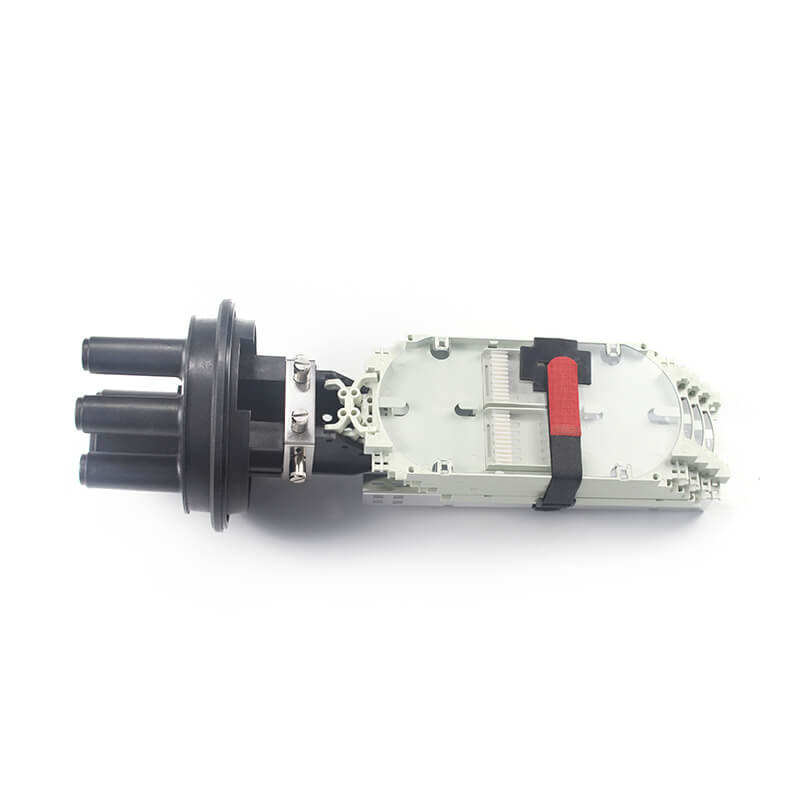

| Fiber optic splice tray (FOST) |
Max. 4 trays (bunchy) Max. 4 trays (ribbon) |
Fixing heat shrinkable protective sleeve and holding fibers |
Suitable for: Bunchy:24(cores) Ribbon:12(pieces) |
| Base | 1set | Fixing internal and external structure |
|
| Plastic hoop | 1set | Fixing between FOSC cover and base | |
| Seal fitting | 1 piece | Sealing between FOSC cover and base | |
| Pressure testing valve | 1 set | After inject air, it is used for pressure testing and sealing testing | Configuration as per requirement |
| Earthing deriving device | 1 set | Deriving metal parts of fiber cables in FOSC for earthing connection |
Configuration as per requirement |
