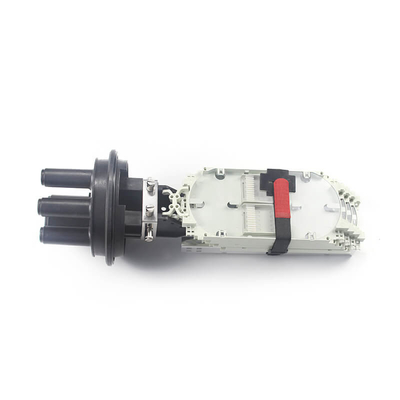

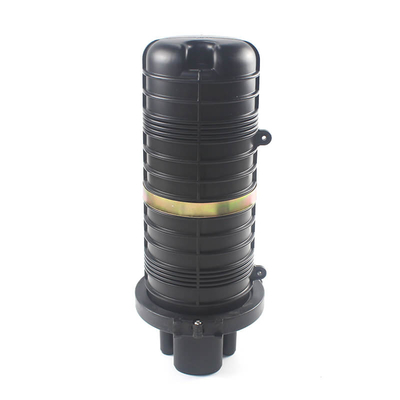

5 Ports External Fibre Splice Enclosure Flame Retardant 1 In 4 Out 24F-96F

Large Image : 5 Ports External Fibre Splice Enclosure Flame Retardant 1 In 4 Out 24F-96F

Product Details:

Place of Origin:	Zhejiang, China
Brand Name:	DOWELL
Model Number:	FOSC-D4C-H

Payment & Shipping Terms:

Minimum Order Quantity:	200pieces
Delivery Time:	7-15 Days
Payment Terms:	T/T, Western Union, Paypal
Supply Ability:	1000 PCS Per 7 Days

Contact Now

5 Ports External Fibre Splice Enclosure Flame Retardant 1 In 4 Out 24F-96F

Description

Material:	PC, ABS, SMC, PC+ABS Or SPCC	Color:	Black, OEM
NO. Of Ports:	5 Pieces In General	Capacity Of FOSC:	Bunchy: 24-96(cores), Ribbon: Up To 288(cores)
Dimension:	460mm×205mm	Weight:	2350g-3500g
Highlight:	5 Ports External Fibre Splice Enclosure , 5 Ports fiber optic joint closure , Flame Retardant External Fibre Splice Enclosure

5 Ports Flame Retardant Fiber Optic Cable Junction Box Closure 1 In 4 Out 24F-96F

There is a wide variety of fiber optic splice closures. Some closures are designed for connecting several smaller cables to a larger one for breaking out the larger cable to several destinations. Some are designed for concatenation of long distance cables where two identical cables are spliced together. Closures can be used for midspan sccessories, where the cable jacket is stripped but most of the buffer tubes are coiled inside without opening, while one or more tubes will be opened and fibers spliced to other cables. Closures for FTTH preterminated cables (plug & play) may have connector mating adapters inside the closure to create a patch panel for the factory made drop cables.

Specification:

Outside dimension (Height x Diameter)	460mm×205mm
Weight (excluding outside box)	2350g-3500g
Number of inlet/out ports	5 pieces in general
Diameter of fiber cable	Φ8mm～Φ25 mm
Capacity of FOSC	Bunchy: 24-96(cores)
Capacity of FOSC	Ribbon: up to288(cores)

Features:

① Advanced internal structure design

② Easy to re-enter, it never requires re-entry tool kit

③ The closure is spacious enough for winding and storing fibers

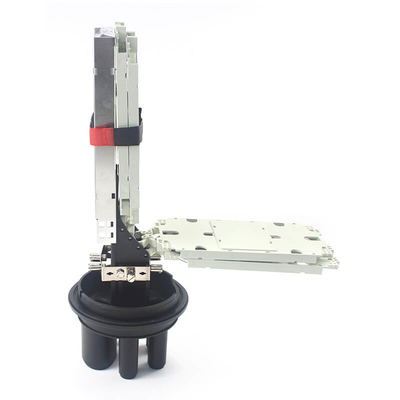

④ Fiber Optic Splice Trays(FOSTs) are design in SLIDE-IN

⑤ LOCK and its opening angle is about 90°

⑥ The curved diameter meets with international standard

⑦ Easy and fast to increase and reduce FOSTs

⑧ Innovative elastic intergrated seal fitting

⑨ The FOST base is provided with an oval inlet/outlet port

Application:

1. Suitable for bunchy fibers

2. Aerial, underground, wall-mounting, hand hole-mounting,

3. Pole-mounting and duct-mounting

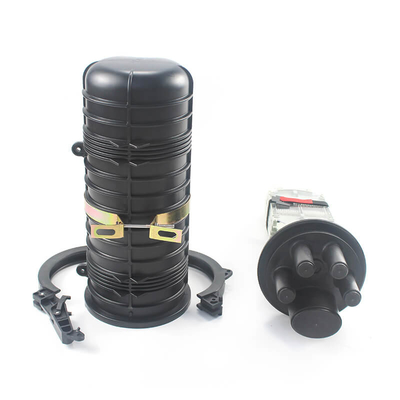

Main components

Name of components	Quantity	Usage	Remarks
FOSC cover	1 piece	Protecting fiber cable splices in whole	Height x Diameter 355mm x 150mm
Fiber optic splice tray (FOST)	Max. 4 trays (bunchy) Max. 4 trays (ribbon)	Fixing heat shrinkable protective sleeve and holding fibers	Suitable for: Bunchy:24(cores) Ribbon:12(pieces)
Base	1set	Fixing internal and external structure
Plastic hoop	1set	Fixing between FOSC cover and base
Seal fitting	1 piece	Sealing between FOSC cover and base
Pressure testing valve	1 set	After inject air, it is used for pressure testing and sealing testing	Configuration as per requirement
Earthing deriving device	1 set	Deriving metal parts of fiber cables in FOSC for earthing connection	Configuration as per requirement
