Product Details:
|
| Cable Diameter: | Φ7~Φ22 | Capacity Of Splice: | 24 Single Fiber |
|---|---|---|---|
| Max. Number: | 6 | Max Capacity: | 144 Single Fiber |

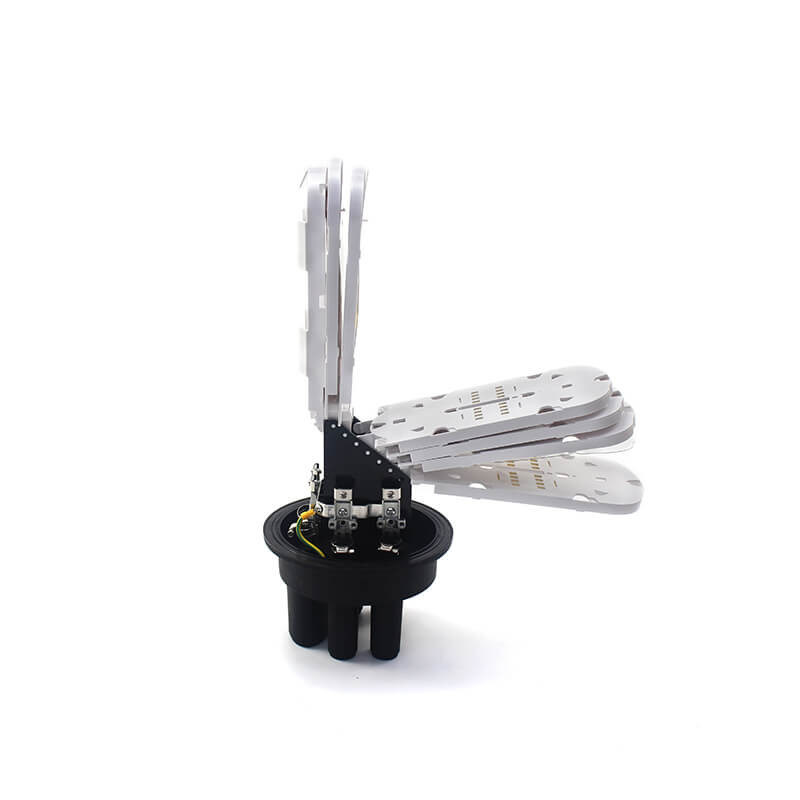

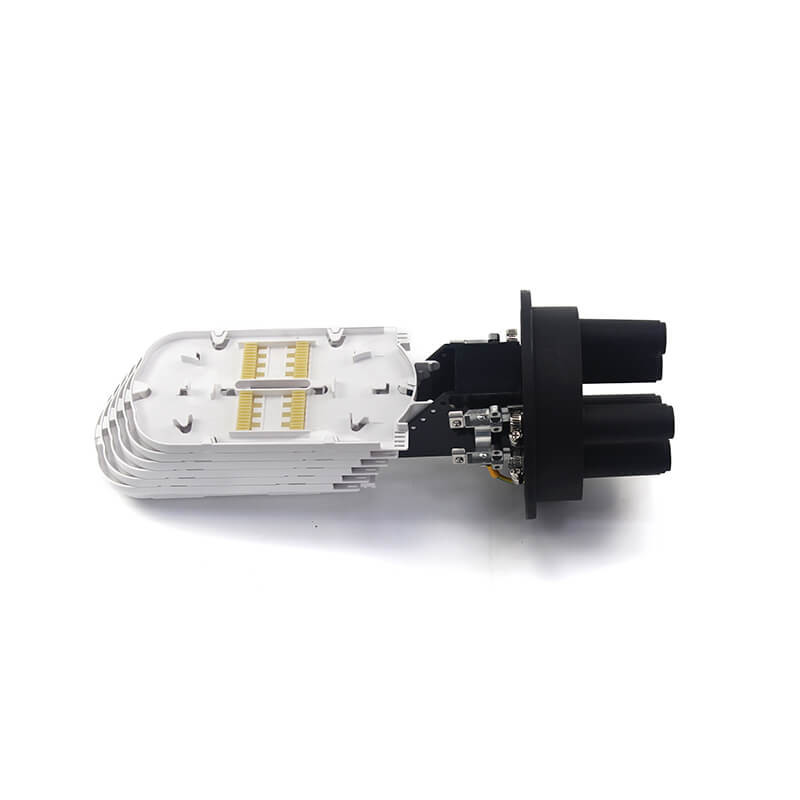

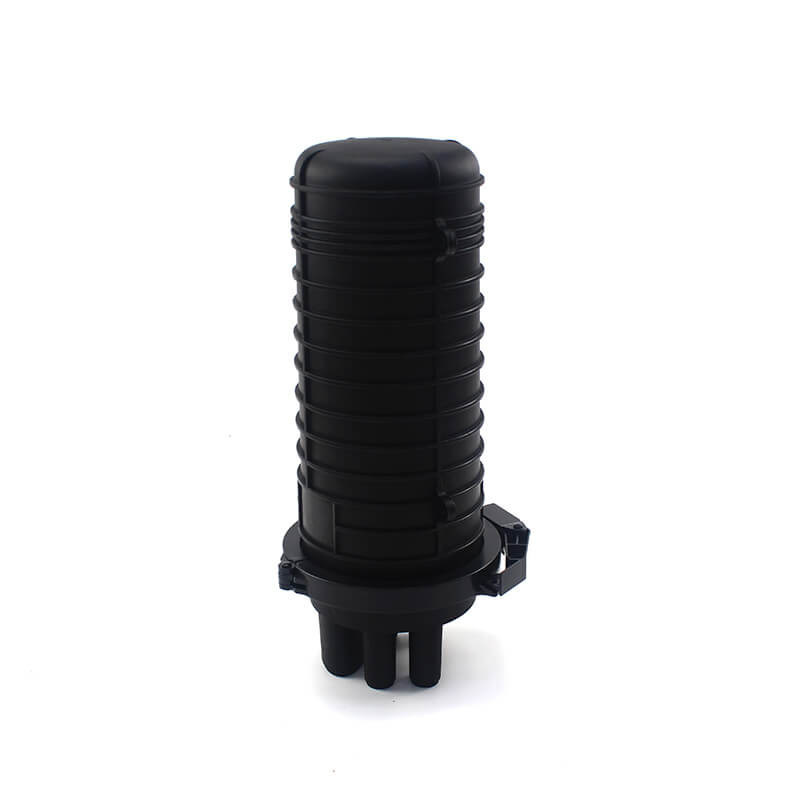

72 Cores 96 Cores Joint Box Fiber Optic Heat Sealing Cap Type 3 In 3 Out

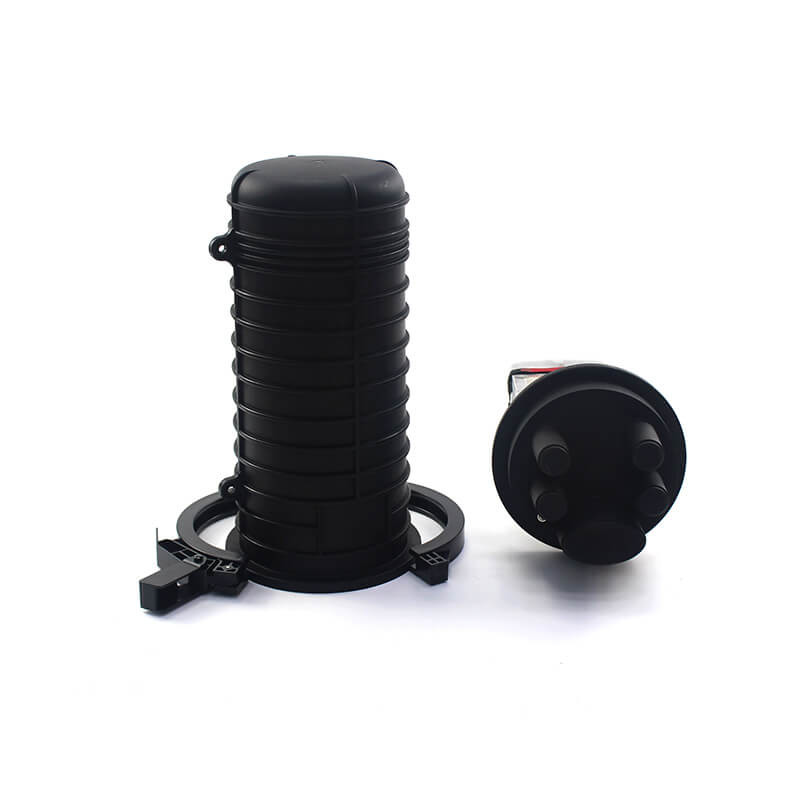

This is a into four out type heat sealing cap type optical fiber cable connector box, suitable for Ф 7 -Ф 22 cable in and out, is suitable for aerial, wall-mounting applications, Pole-mounting ,differences in place.The box body and the base are sealed with the silicone rubber. The cable seal is sealed with a heat shrinkable tube. The case body is made from imported high-intensity engineering plastics(PP) and formed the shape with mould plastics under high pressure. With the advantages of less weight, high mechanical intensity, corrosive-resistance, anti-thunderstruck and long service life.
Specification
| Cable diameter | Φ7~Φ22 | Net weight | 3.2kg |
| Capacity of splice | 24 single fiber | Cable ports | One elliptical port and 4 round ports |
| Max. Number of | 6 | Way to install | Pole-mounting /Wall-mounting/Aerial installation |
| Max Capacity | 144 single fiber | Sealing structure | Heat shrinkable sealing structure silicon gum material |
More Details Show
Application
Pole-mounting /Wall-mounting/Aerial installation
