144F Capacity Fiber Optic Splice Closure Black Heat Sealing Cap Type 3 In 3 Out

Large Image : 144F Capacity Fiber Optic Splice Closure Black Heat Sealing Cap Type 3 In 3 Out

Product Details:

Place of Origin:	Zhejiang, China
Brand Name:	DOWELL
Model Number:	FOSC-D4-H

Payment & Shipping Terms:

Minimum Order Quantity:	200 pieces
Delivery Time:	7-15 Days
Payment Terms:	T/T, Western Union, Paypal
Supply Ability:	1000 PCS Per 7 Days

Contact Now

144F Capacity Fiber Optic Splice Closure Black Heat Sealing Cap Type 3 In 3 Out

Description

Material:	PC, ABS, SMC, PC+ABS Or SPCC	Color:	Black, OEM
Cable Diameter:	Φ7~Φ22	Capacity Of Splice:	24 Single Fiber
Max. No.:	6	Max Capacity:	144 Single Fiber
Highlight:	144F Capacity Fiber Optic Splice Closure , 144F Capacity dome type closure , Black Fiber Optic Splice Closure

Max 144F Heat Sealing Cap Type Fiber Optic Joint Closure 3 In 3 Out

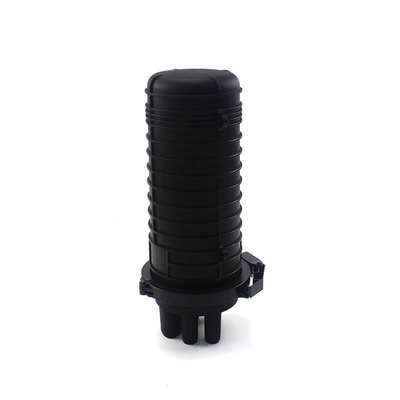

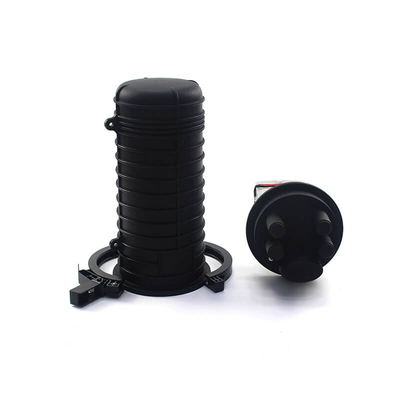

This is a into four out type heat sealing cap type optical fiber cable connector box, suitable for Ф 7 -Ф 22 cable in and out, is suitable for aerial, wall-mounting applications, Pole-mounting ,differences in place.The box body and the base are sealed with the silicone rubber. The cable seal is sealed with a heat shrinkable tube. The case body is made from imported high-intensity engineering plastics(PP) and formed the shape with mould plastics under high pressure. With the advantages of less weight, high mechanical intensity, corrosive-resistance, anti-thunderstruck and long service life.

Specification:

Cable diameter	Φ7~Φ22	Net weight	3.2kg
Capacity of splice	24 single fiber	Cable ports	One elliptical port and 4 round ports
Max. Number of	6	Way to install	Pole-mounting /Wall-mounting/Aerial installation
Max Capacity	144 single fiber	Sealing structure	Heat shrinkable sealing structure silicon gum material

Features:

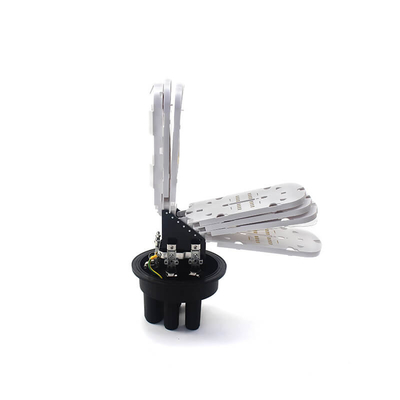

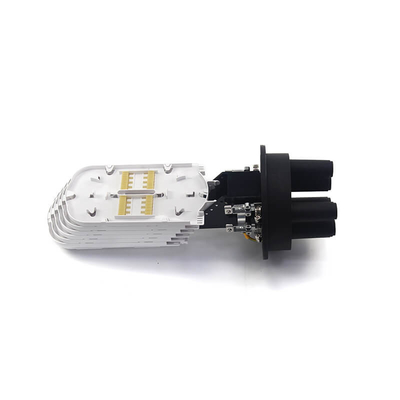

① The fiber optic splice closure consists of cover,pedestal,splice tray,hoop,optical cable storage box.

② The cable entry ports are sealed with heat shrinkable tube.

③ This is single fiber splice closure, it provide with one elliptical port and 4 round ports.The elliptical port, which can hold two stick optical cables.

④ The case body is made from imported high-intensity engineering plastics(PP) and formed the shape with mould plastics under high pressure. With the advantages of less weight, high mechanical intensity, corrosive-resistance, anti-thunderstruck and long service life.

⑤ Equipped with air - core and installation

Application:

1. Pole-mounting /Wall-mounting/Aerial installation.
