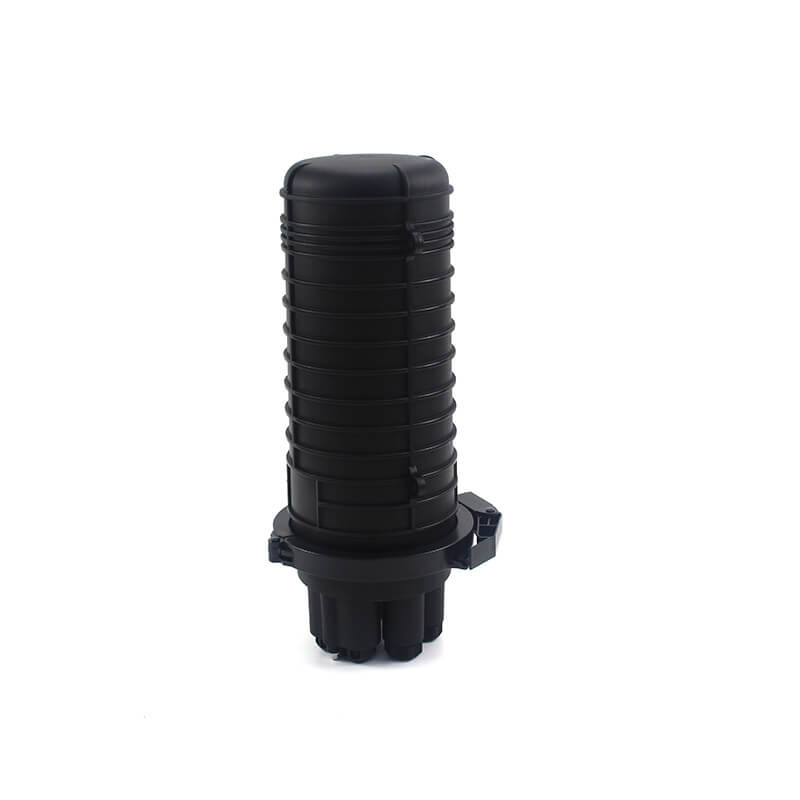

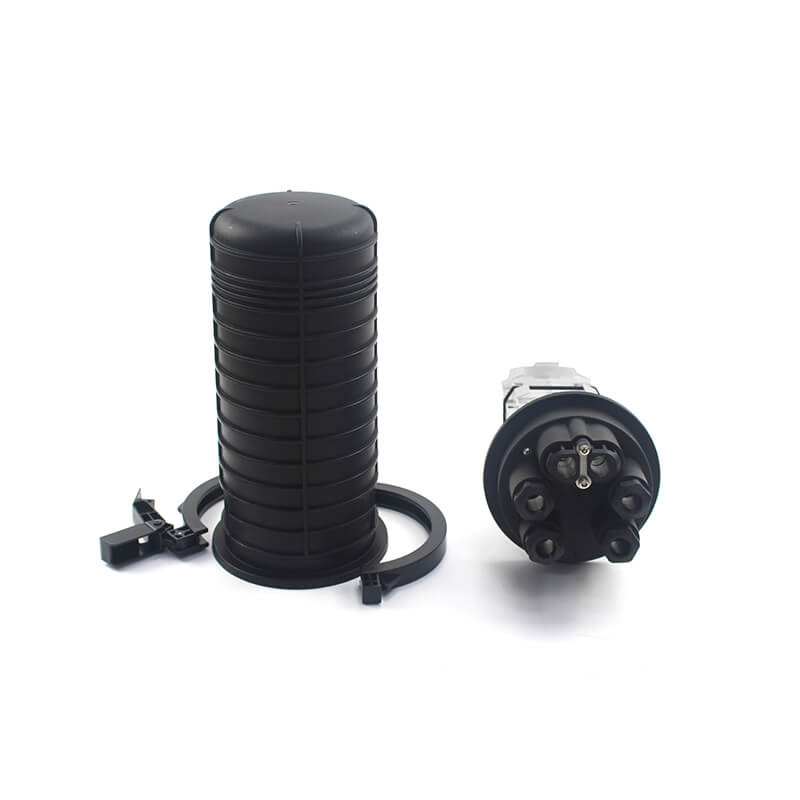

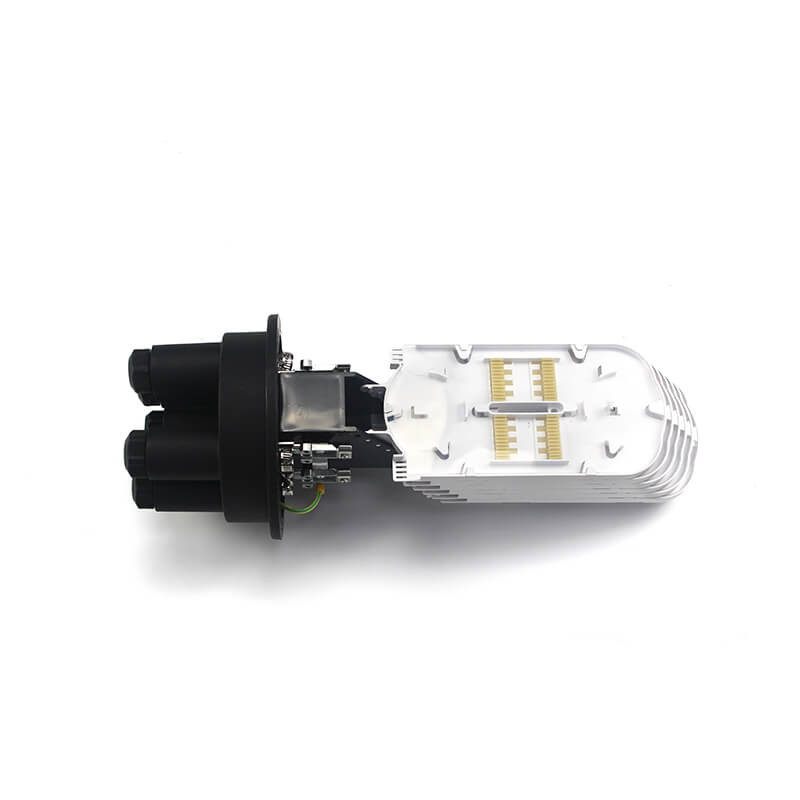

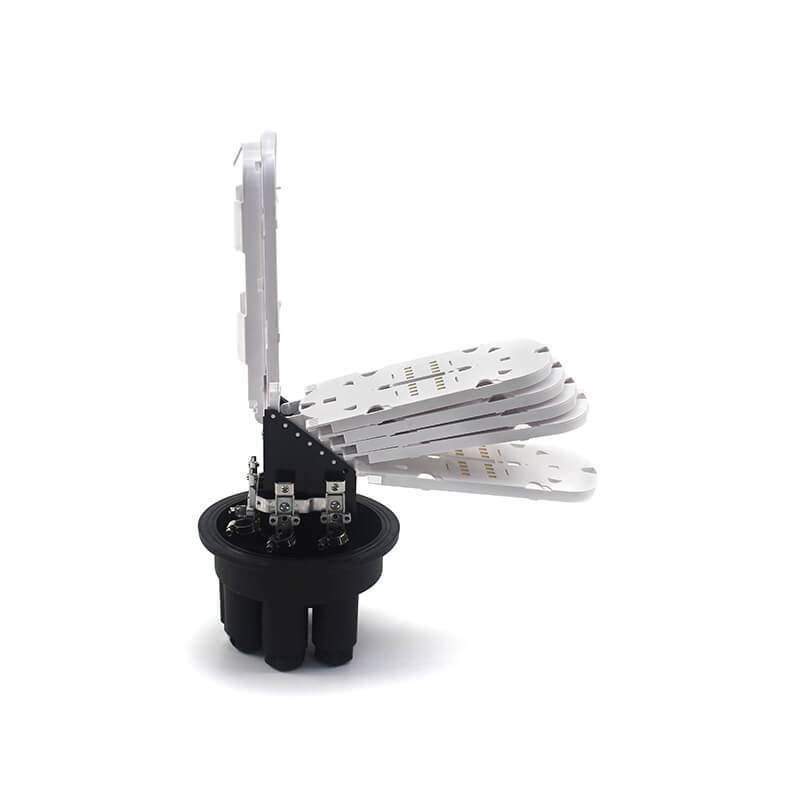

Aluminum Alloy Fiber Optic Splice Closure Underground Installation

Large Image : Aluminum Alloy Fiber Optic Splice Closure Underground Installation

Product Details:

Place of Origin:	Zhejiang, China
Brand Name:	DOWELL
Model Number:	FOSC-D4-M

Payment & Shipping Terms:

Minimum Order Quantity:	200 pieces
Delivery Time:	7-15 Days
Payment Terms:	T/T, Western Union, Paypal
Supply Ability:	100 Roll Per 7 Days

Contact Now

Aluminum Alloy Fiber Optic Splice Closure Underground Installation

Description

Material:	PC	Color:	Black
Splitter Capacity:	1 Of 1:2 Or 1:4	Maximum Trays:	4 Trays
Splice Tray:	6 Or 12 Fiber	Demention:	420150110mm
Highlight:	Aluminum Alloy Fiber Optic Splice Closure , Aluminum Alloy fiber splice case , Underground Fiber Optic Splice Closure

144FO Fiber Optic Splice Closure Aluminum Alloy Underground Installation

Whether your fiber to the home (FTTH) network design has closures in a buried or aerial environment, one thing remains the same: you need assured environmental protection and quick, incremental subscriber drops. From our experience in the field, we know that not all closures are the same. Our closures are designed with your needs in mind. It could save the installation time and improve work efficiently.

Specification:

Dimensions (mm)	460×Ø 230
Numbers of Cable ports	1+4
Cable diameter (Max.)	Ø 18mm
Splice tray capacity	24 FO
Maximum numbers of the splice tray	6pcs
Splice capacity in total	144 FO
Mounted way	aerial, wall, pole, underground, manhole

Features & Benefits

① The closure adopts mechanical and heat shrinkable sealing structure. There is one oval shaped cable port entrances in base. The oval entrance is used for the sealing of uncut straight-through fiber cable, the small ports are used for branch fiber cable and drop cable. To adopt engineering PP plastic with high-strength to make.

② the closure has longer life time and excellent sealing performance. It can be installed more splitter trays and 1:8 Blockless or bare PLC Splitters.

③ There are different drop cable elements to be chosen (Φ8-Φ18). Max. 6 pcs drop cable input/output (special type can be customized). The patented sealing structure keep good sealing performance after re-entry and re-using.

④ It could save the installation time and improve work efficiently.

Application:

Suitable for aerial, cable duct, direct buried, pedestal and provides the perfect solutions for the protection of fiber splice points from the environment. Suitable for multi-customer cables export, give a better solution for FTTH project.

Aluminum Alloy Fiber Optic Splice Closure Underground Installation 0
