Product Details:
|
| Type: | Feeder Clamp | Use: | Feeder Cable Clamp |
|---|---|---|---|
| Warranty Time: | 1 Year | Network: | Wired LAN, FTTH |
| Product Name: | Fiber Optic Cable Suspension Clamp | Application: | Telecom Cable Installation |
| Usage: | Electric Power Accessories | Operation Temp: | -50 °C ~ 85 °C |
| Warranty: | 1 Year | Color: | Black |
| Material: | 304 Stainless Steel | Certificate: | CE ROHS ISO9001 |
| Cable Capacity: | 2,4,6,8,10,12 Etc | Size: | Customize Accept |
Clamp type | European standard | Cable Type | Power (hybrid) cable and fiber cable |

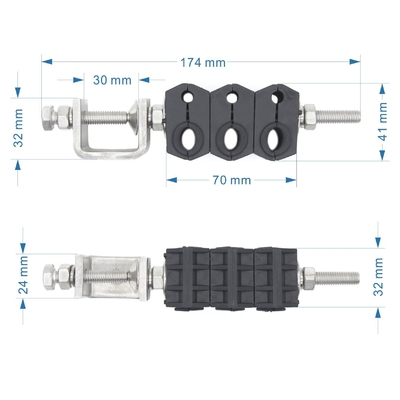

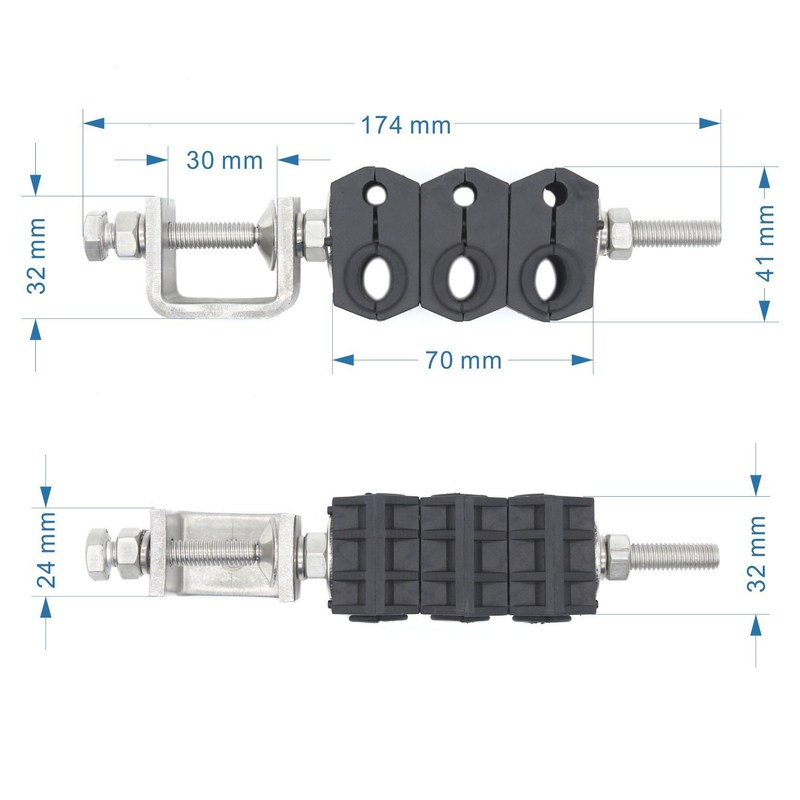

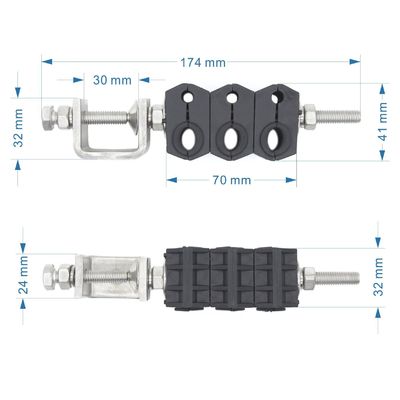

Size | OD 12-22mm DC power cable OD 7-8mm fiber cable | Number of Cables | 3 power cable + 3 fiber cable |
Operation Temp | -50 °C ~ 85 °C | UV Resistance | ≥1000 hours |
CompatibleMax Diameter | 19-25mm | Compatible Min Diameter | 5-7mm |
Twin Plastic Clamps Material | Fiberglass reinforced PP,Black | Metal Material | Stainless steel 304 or hot galvanized |
Mounting On | Steel wire cable tray | Max Stack Height | 3 |
Vibration Survival | ≥4 hours at resonant frequency | Environmental Strength Cap | Double cable weight |
