Black Underground Splice Enclosure Flame Retardant For Data Center

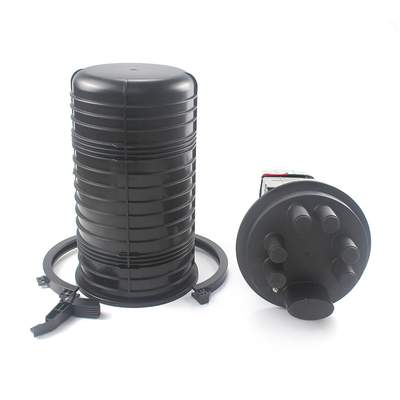

Large Image : Black Underground Splice Enclosure Flame Retardant For Data Center

Product Details:

Place of Origin:	Zhejiang, China
Brand Name:	DOWELL
Model Number:	FOSC-D6B-H

Payment & Shipping Terms:

Minimum Order Quantity:	100pieces
Delivery Time:	7-15 Days
Payment Terms:	T/T, Western Union, Paypal
Supply Ability:	1000 PCS Per 7 Days

Contact Now

Black Underground Splice Enclosure Flame Retardant For Data Center

Description

Single Fiber Splicing:	144f	Ip Rating:	IP68
Maximum Cores:	96(singlel Core)	Type:	Vertical, Dome
Color:	Black	Ip Rating:	IP65、IP67、IP68
Highlight:	Black Underground Splice Enclosure , Black fusion splice enclosure , Flame Retardant Underground Splice Enclosure

288Cores Black Optical Fiber Cable Joint Closure 1 In 6 Out Outdoor FOSC

Fiber optic closures are critical components in fiber optic networks, providing protection and organization for fiber optic connections. By choosing the right closure and maintaining it properly, you can ensure the reliability and longevity of your fiber optic infrastructure.

Specification

Specification	515mm×310mm
Weight (excluding outside box)	3000 g— 4600g
Number of inlet/out ports	7 pieces in general
Diameter of fiber cable	Φ5mm～Φ38 mm
Capacity of FOSC	Bunchy: 24-288(cores), Ribbon: up to864(cores)

Main components

Name of components	Quantity	Usage	Remarks
FOSC cover	1 pcs	Protecting fiber cable splices in whole	Height x Diameter 360mm x 177mm
Fiber optic splice tray (FOST)	Max. 12 trays (bunchy) Max. 12 trays (ribbon)	Fixing heat shrinkable protective sleeve and holding fibers	uitable for: Bunchy:12,24(cores) Ribbon:6 (pieces)
Fiber holding tray	1 pcs	Holding fibers with protective coat
Base	1set	Fixing internal and external structure
Plastic hoop	1 set	Fixing between FOSC cover and base
Seal fitting	1 pcs	Sealing between FOSC cover and base
Pressure testing valve	1 set	After inject air, it is used for pressure testing and sealing testing	Configuration as per requirement
Earthing deriving device	1 set	Deriving metal parts of fiber cables in FOSC for earthing connection	Configuration as per requirement

Application

Aerial, underground, wall-mounting, duct-mounting and handhole- mounting.

The ambient temperature ranges from –40℃ to +65℃.

Black Underground Splice Enclosure Flame Retardant For Data Center 0
