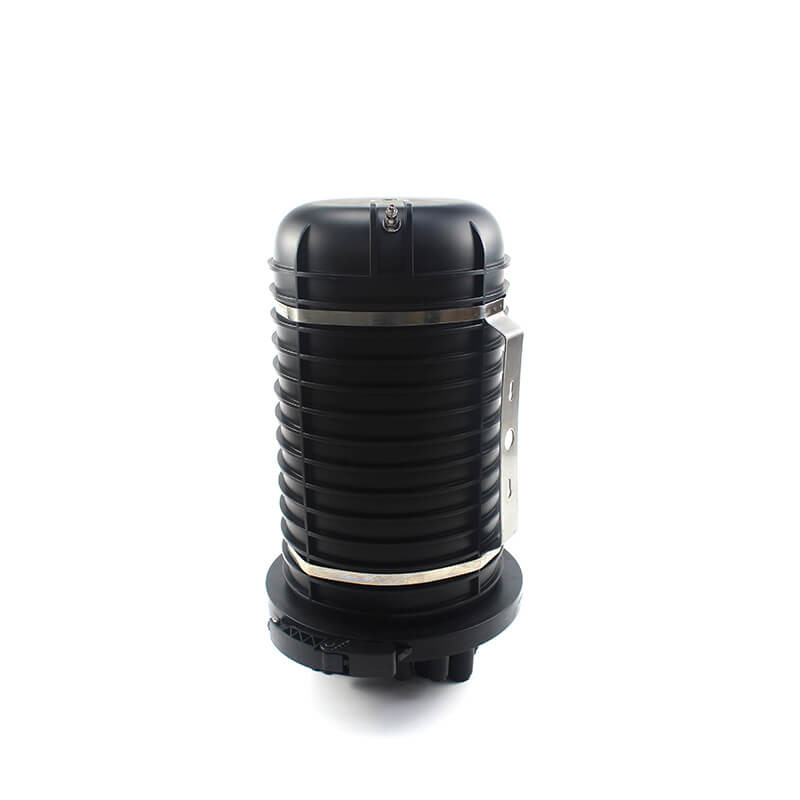

192FO Waterproof Fiber Optic Splice Closure

ABS Waterproof Fiber Optic Splice Closure

ABS Aerial Splice Enclosure

Product Description

192FO 288FO ABS Optical Fiber Closure 1 In 16 Out For Aerial Pole mounting Wall mounting

This product is used to connect the distribution cable and the incoming cable, is widely applied in communication, network systems, CATV cable TV and so on. It adopts scientifically formulated engineering plastic and be shaped by injection molding, with anti-aging, anti-corrosion, flame retardant, waterproof, anti-vibration and anti-shock effects. Can effectively prevent the optic fibers from the influence of outdoor environment.

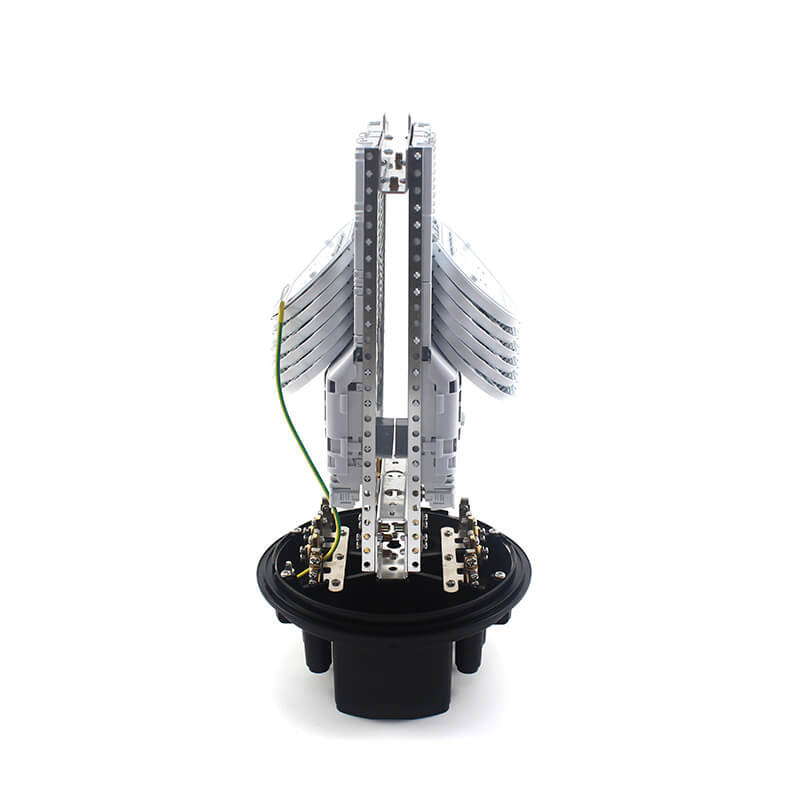

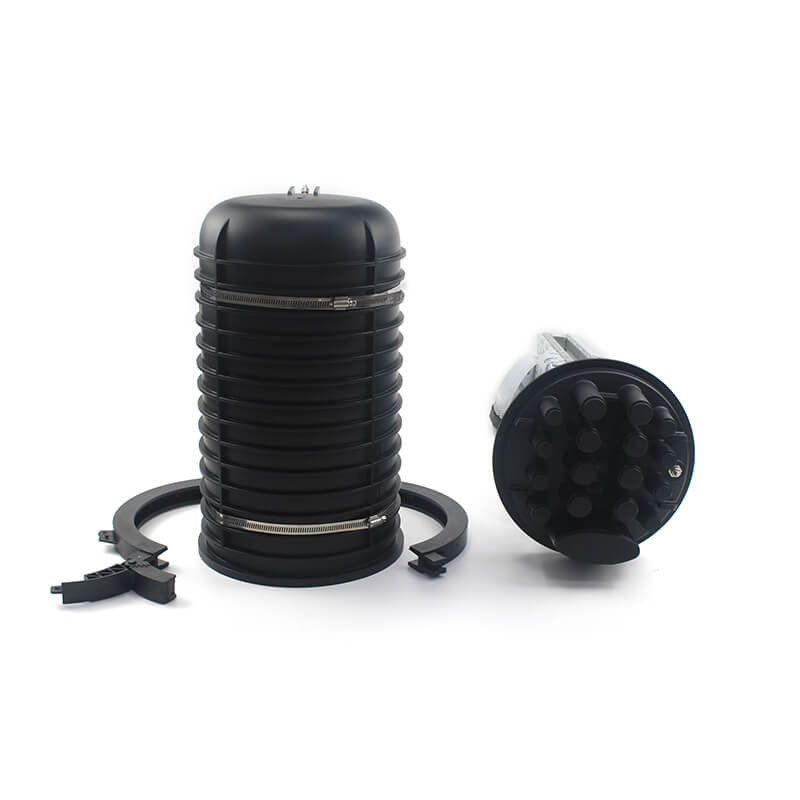

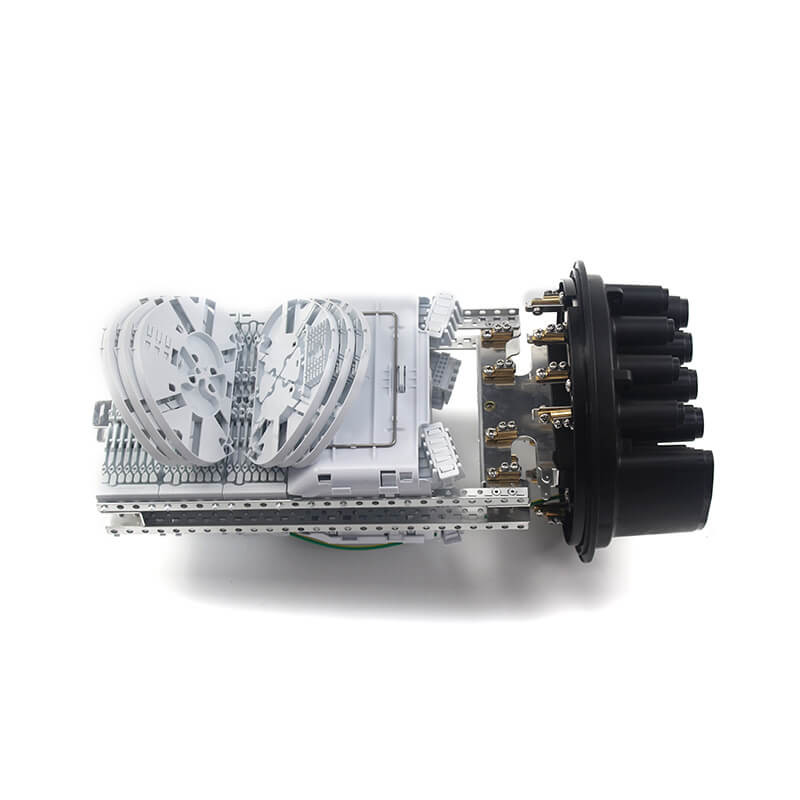

Dome-to-base design; sealed with clamp and O-ring system. With two types of optional trays can hinge for access of any splice, without disturbing others trays; Fast and reliable sealing performance, easy to package multiple times. With lightning protection grounding device, it can be applied in overhead, pole/ wall mounting or directly buried.

Specification

Entry ports number	1 oval port, 8 middle size round ports, 8 small size round ports
Tray capacity	RQP-15-12c: 12F/tray RQP-26-4c: 4F/tray
Tray capacity	RQP-15-12c: 12F/tray RQP-26-4c: 4F/tray
Max. closure splice capacity	288F ( if with 12F tray, total 24 pcs) 192F ( if with 4F tray, total 48 pcs)
Available cable dia.	1 oval port for 2 pcs 10~30mm cable 8 middle round ports each for 1 pc 6~21mm cable 8 small round ports each for 1 pc 6-16mm cable
Raw material	Dome, Base: modified PP, clamp:Nylon +GF Tray: ABS Metal parts:Stainless steel
Base sealing method	Heat-shrink
IPgrade	68

Application

Aerial, Pole mounting, directly buried, Wall mounting

192FO 288FO ABS Waterproof Fiber Optic Splice Closure Aerial Splice Enclosure 0

More Details Show

Related Products

Tag:

Place of Origin:	Zhejiang, China
Brand Name:	DOWELL
Model Number:	FOSC-D16-H

Minimum Order Quantity:	100 pieces
Delivery Time:	7-15 Days
Payment Terms:	T/T, Western Union, Paypal
Supply Ability:	1000 PCS Per 7 Days
