Detail Information

Material:	High‑carbon Steel, PVC	Size:	1863cm
Weight:	350g	Color:	Green
Applicable Plugs:	4P/6P/8P (RJ11/RJ12/RJ45)	Core Functions:	Crimping, Stripping, Cutting Network/Telephone Cables
Highlight:	ftth adsl vdsl tester , ftth network cable crimping tools

Product Description

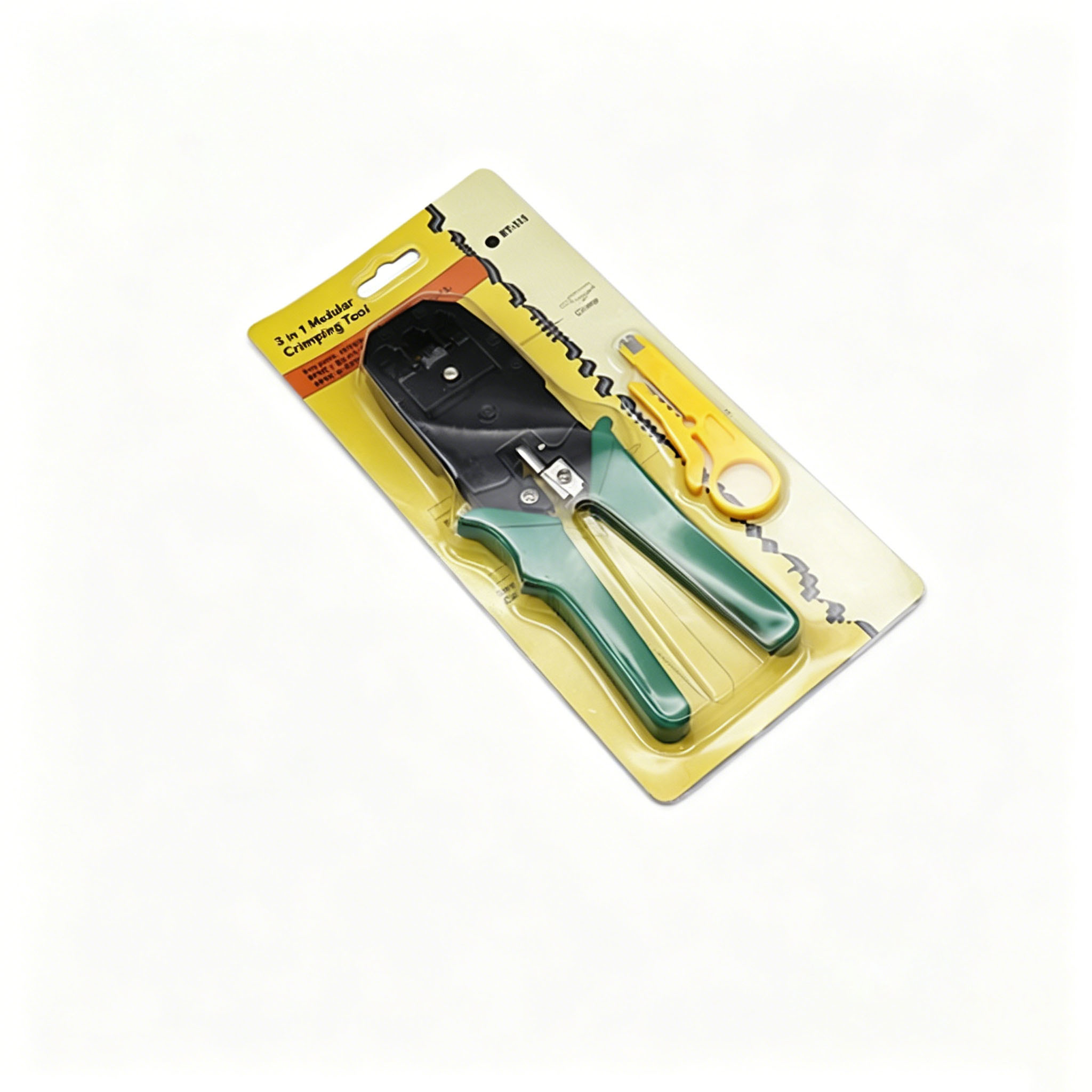

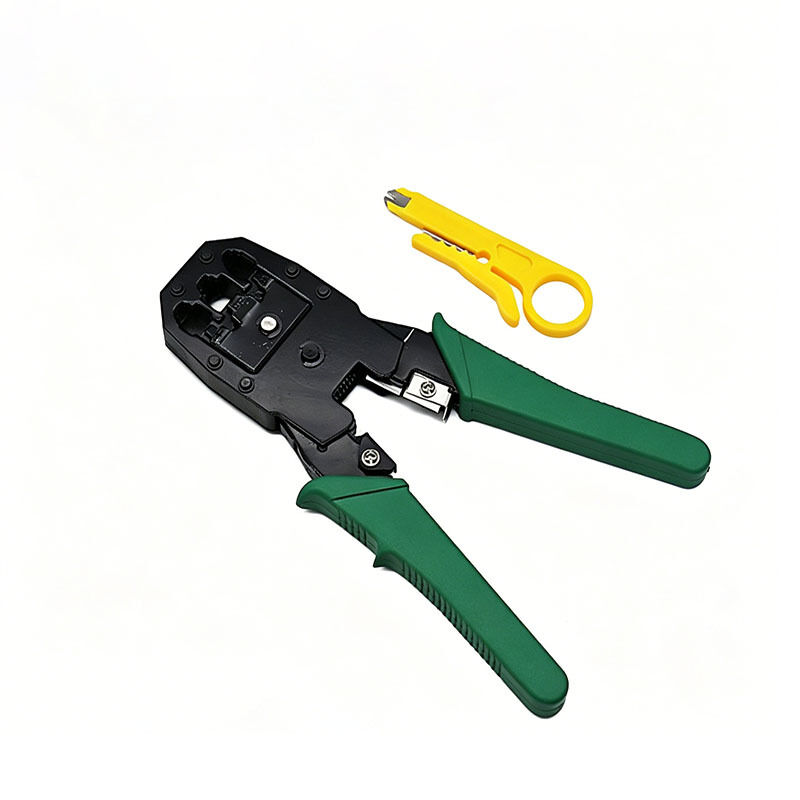

High‑carbon steel 3-in-1 Modular RJ11/RJ12/RJ45 Network Crimping Tool

Specification:

Material	High‑carbon steel (main body), PVC non‑slip handle
Applicable Plugs	4P/6P/8P (RJ11/RJ12/RJ45)
Product Name	3-in-1 Modular Network Crimping Tool
Core Functions	Crimping, Stripping, Cutting Network/Telephone Cables

Features:

1.1 Integrates cable stripping, cutting and crimping functions, matching with a small yellow wire stripper. It can process 4‑pin telephone plugs, 6‑pin telephone plugs and 8‑pin Ethernet (RJ45) plugs.
1.2 The main body is made of high‑strength carbon steel with high hardness and wear resistance. The green handle is ergonomically designed with non‑slip texture, saving labor during operation.

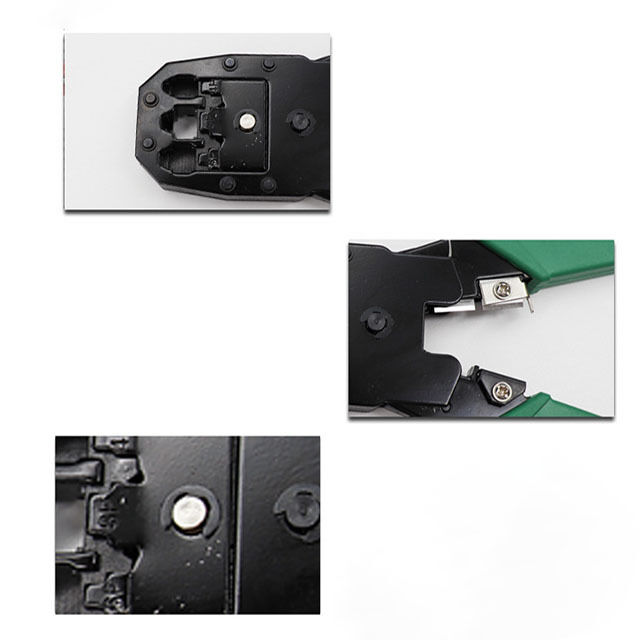

1.3 Precise mold slots ensure tight connection between metal shrapnel of crystal heads and cable cores, stable signal transmission and long service life.
1.4 Suitable for Cat5, Cat5e, Cat6 Ethernet cables and ordinary telephone cables, widely used in home, office and data center wiring projects

Usages:

2.1 Strip the Cable: Use the small wire stripper or the stripping slot of the crimping tool to strip about 2‑3cm of the outer insulation layer of the network cable, and do not damage the internal copper cores.
2.2 Arrange Cable Cores: Straighten and sort the 8 internal copper cores of the network cable according to the standard sequence, cut them flat to keep the length consistent.
2.3 Insert Crystal Head: Insert the sorted cable cores into the RJ45 crystal head, ensure all copper cores reach the top of the crystal head, and the outer sheath of the cable enters the crystal head appropriately.
2.4 Crimp Firmly: Put the crystal head into the 8P crimping slot of the tool, hold the handle tightly until it is locked, and complete the crimping.
2.5 Check Connection: Use a network tester to check the continuity of each core to confirm normal communication.

FAQ:

1. Q : Are you trading company or manufacturer?
A : 70% of our products we manufactured and 30% do trading for customer service
2. Q : How can you ensure the quality?
A : Good question! We are a one-stop manufacturer. We have complete facilities and over-15- years manufacturing experience to ensure product quality. And we have already passed ISO 9001 Quality Management System.
3. Q : Can you provide samples ? Is it free or extra?
A : Yes, After price confirmation , we could offer the free sample, but the shipping cost need pay for by your side.
4. Q : How long is your delivery time ?
A : In stock: In 7 days; No in stock: 15~20 days, depend on your QTY.
5. Q: Can you do OEM?
A: Yes , we can
6. Q: What is your payment term ?
A: Payment <=4000USD,100% in advance. Payment>= 4000USD, 30% TT in advance, balance before shipment.
7. Q: How we can pay?
A: TT, Western Union , Paypal ,Credit Card and LC
8. Q: Transportation?
A: Transported by DHL, UPS, EMS, Fedex, Air freight, Boat and Train
