Adjustable blade Armored Cable Slitter for 4~10 mm Cable

I'm Online Chat Now

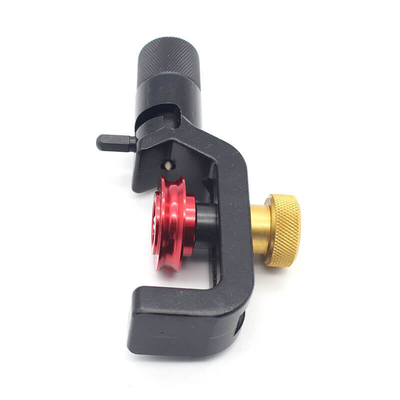

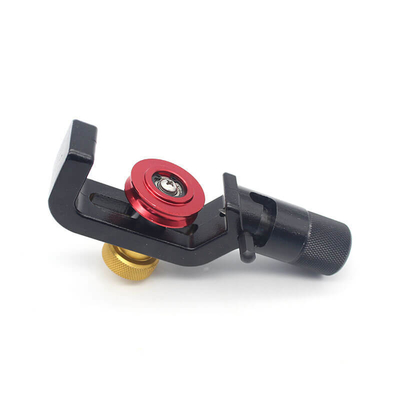

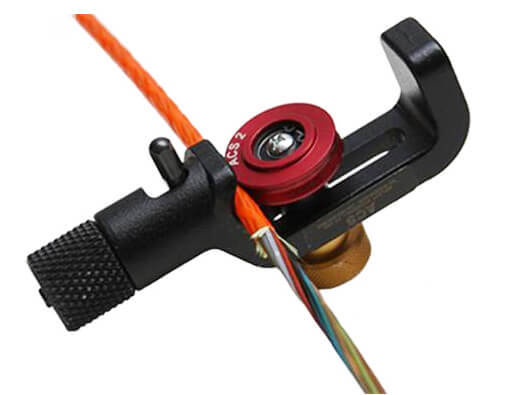

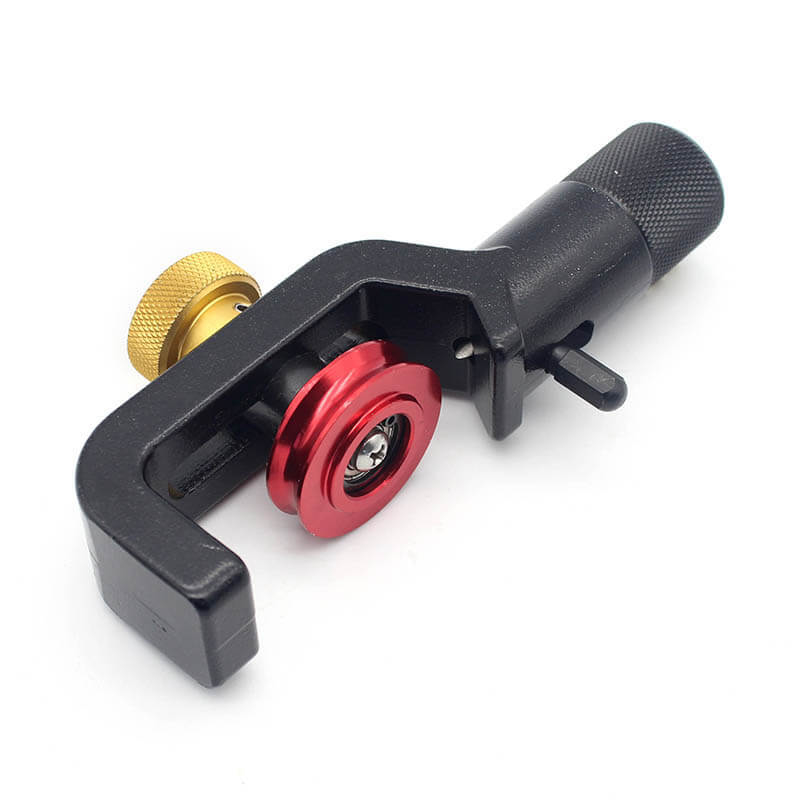

Adjustable blade Armored Cable Slitter for 4~10 mm Cable

Adjustable blade Armored Cable Slitter for 4~10 mm Cable
Adjustable blade Armored Cable Slitter for 4~10 mm Cable Adjustable blade Armored Cable Slitter for 4~10 mm Cable Adjustable blade Armored Cable Slitter for 4~10 mm Cable Adjustable blade Armored Cable Slitter for 4~10 mm Cable

Large Image :  Adjustable blade Armored Cable Slitter for 4~10 mm Cable

Product Details:
Place of Origin: Zhejiang, China
Brand Name: DOWELL
Model Number: DW-ACS2
Payment & Shipping Terms:
Minimum Order Quantity: 100 pieces
Delivery Time: 7-15 Days
Payment Terms: T/T, Western Union, Paypal
Supply Ability: 500 PCS Per 7 Days

Adjustable blade Armored Cable Slitter for 4~10 mm Cable

Description
Cable Size: 4~10 Mm O.D. Material: Rugged Anodized Aluminum And Steel
Use: FTTH Type: Fiber Optic Tools
Weight: 283 G Port: Ningbo
Highlight:

ftth adsl vdsl tester

,

ftth network cable crimping tools

Adjustable blade Armored Cable Slitter for 4~10 mm Cable

Professional grade tool ideal for slitting the corrugated copper, steel or aluminum armorlayer on Fiber Feeder, Central Tube, Stranded
Loose Tube fiber optic cables and other armored cables. Versatile design allows jacket or shield slitting on non-fiber optic cables as well. Tool
slits outer polyethylene jacket and armor in one operation.
Specification:
Material Rugged anodized aluminum and steel
ACS Cable Size 4~10 mm O.D.
Blade Depth 5.5 mm Max.
Size 130x58x26 mm
ACS Weight 271 g

Features:

1.1Professional grade tool ideal for slitting the corrugated copper, steel or aluminum armor layer on Fiber Feeder, Central Tube, Stranded Loose Tube fiber optic cables and other armored cables

1.2 Versatile design allows jacket or shield slitting on non-fiber optic cables as well

1.3 Tool slits outer polyethylene jacket and armor in one operation
1.4 Performs longitudinal slitting and circumferential (ringing) for end stripping
1.5 Blade rotates 90 degrees by activating blade lever, allowing easy mid-span preparation (ringing and slitting)

Application:

2.1 For fiber feeder, central tube and other armored cables

2.2 For mid-span or end slitting loose tube micro cable
Use Way:
3.1 Transverse cut to lengthwise cut
3.2 Lengthwise cut to transverse cut
3.3 How to get transverse cut
3.4 How to get lengthwise cut
Adjustable blade Armored Cable Slitter for 4~10 mm Cable 0
