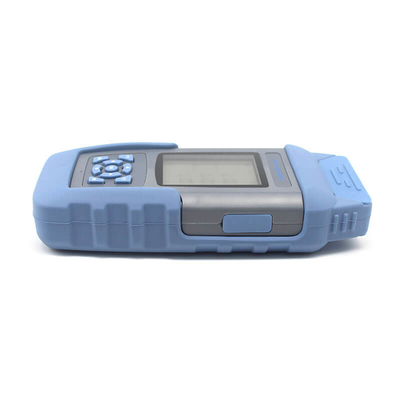

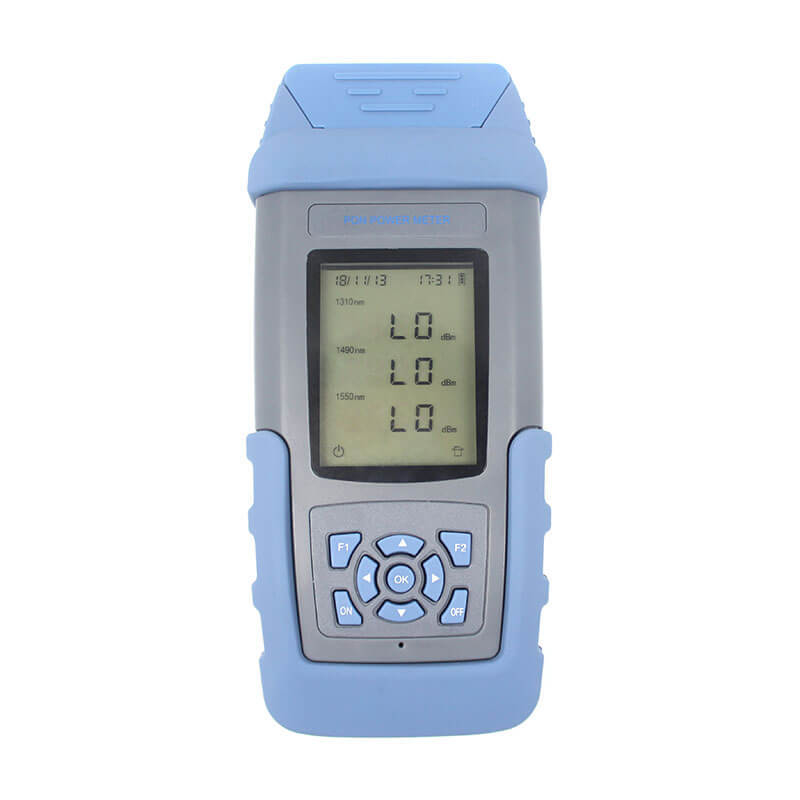

1310/1490/1550nm Fiber Optical Pon Power Meter for FTTX and FTTH

1310/1490/1550nm Fiber Optical Pon Power Meter for FTTX and FTTH
1310/1490/1550nm Fiber Optical Pon Power Meter for FTTX and FTTH 1310/1490/1550nm Fiber Optical Pon Power Meter for FTTX and FTTH 1310/1490/1550nm Fiber Optical Pon Power Meter for FTTX and FTTH 1310/1490/1550nm Fiber Optical Pon Power Meter for FTTX and FTTH

Large Image :  1310/1490/1550nm Fiber Optical Pon Power Meter for FTTX and FTTH

Product Details:
Place of Origin: Zhejiang, China
Brand Name: DOWELL
Model Number: DW-16805
Payment & Shipping Terms:
Minimum Order Quantity: 1 pieces
Delivery Time: 7-15 Days
Payment Terms: T/T, Western Union, Paypal
Supply Ability: 10 PCS Per 7 Days
Contact Now

1310/1490/1550nm Fiber Optical Pon Power Meter for FTTX and FTTH

Description
Wavelength: 1310/1490/1550nm Network: FTTH
Working Temperature: -10~60℃ Storage Temperature: -25~70℃
Dimension (mm): 200*90*43 Weight (g): About 330
Highlight:

fttx adsl vdsl tester

,

fttx network cable crimping tools

,

ftth adsl vdsl tester

1310/1490/1550nm Fiber Optical Pon Power Meter for FTTX and FTTH

PON Power Meter is specifically designed for the PON network construction and maintenance. It’s a useful site test tool for the engineers and maintenance operators of PON network of FTTX.

It can perform in-service testing of all PON signals (1310/1490/1550nm) on any spot of the network. Pass/fail analysis is conveniently realized through users’ adjustable threshold of every wavelength.

Specification:

Standard wavelengths

1310

(upstream)

1490

(downstream)

1550

(downstream)
Pass zone(nm) 1260～1360 1470～1505 1535～1570
Range(dBm) -40～+10 -45～+10 -45～+23
Isolation @1310nm(dB)   >40 >40
Isolation @1490nm(dB) >40   >40
Isolation @1550nm(dB) >40 >40
Accuracy
Uncertainty(dB) ±0.5
Polarization Dependent Loss (dB) <±0.25
Linearity(dB) ±0.1
Through Insertion Loss(dB) <1.5
Resolution 0.01dB
Unit dBm / xW
General Specifications
Storage number 99 items
Auto backlight off time 30 30 seconds without any operation
Auto power off time 10 minutes without any operation
Battery

7.4V 1000mAH rechargeable Lithium battery or

dry battery
Continuous working

18 hours for Lithium battery; about 18 hours for

dry battery too, but different for different battery brands
Working temperature -10~60℃
Storage Temperature -25~70℃
Dimension (mm) 200*90*43
Weight (g) About 330

Features:

1.1 Test 3 wavelengths’ power of PON system synchronously: 1490nm, 1550nm, 1310nm

1.2 Suitable for all PON network (APON, BPON, GPON, EPON)

1.3 User-defined Threshold Sets

1.4 Supply 3 groups of threshold values; analyze and display pass/fail status

1.5 Relative value (differential loss)

1.6 Save and upload the records to computer

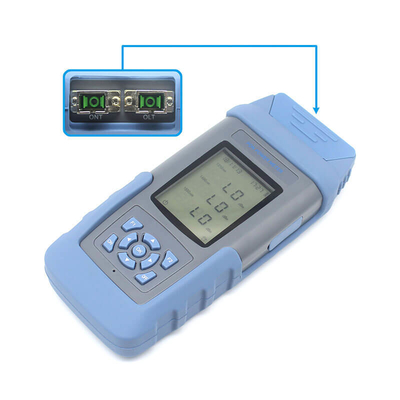

Ports:

1310/1490/1550nm Fiber Optical Pon Power Meter for FTTX and FTTH 0

1310/1490/1550nm Fiber Optical Pon Power Meter for FTTX and FTTH 1
