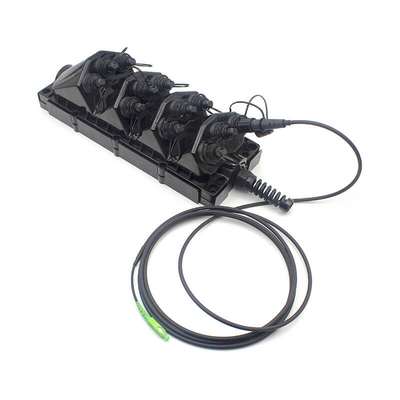

12 Fiber MST Multiport Service Closures FTTA With Drops Cable

Large Image : 12 Fiber MST Multiport Service Closures FTTA With Drops Cable

Product Details:

Place of Origin:	China
Brand Name:	DOWELL
Model Number:	DW-MST-12

Payment & Shipping Terms:

Minimum Order Quantity:	500 pieces
Delivery Time:	7-15 Days
Payment Terms:	T/T, Western Union, Paypal
Supply Ability:	500 PCS Per 7 Days

Contact Now

12 Fiber MST Multiport Service Closures FTTA With Drops Cable

Description

Tension(Long Term):	300N	Tension(Short Term):	600N
Crush(Long Term):	1000N/10cm	Crush(Short Term):	2200N/10cm
Operation Temperature:	-40~+70℃	Storage Temperature:	-40~+70℃

12 Fiber MST Multiport Service Closures FTTA With Drops Cable

An attached optical cable assembly is connected internally to the optical ports. The MST may be ordered with two, four, six, eight, or twelve fiber ports and with a 2xN or 4x3 style housing. The four and eight port versions of the MST may also be ordered with internal 1x2 to 1x12splitters so that a single optical fiber input can feed all the optical ports.
The MST uses hardened adapters for the optical ports. A hardened adapter consists of a standard SC adapter that is enclosed within a protective housing. The housing provides sealed environmental protection for the adapter. The opening to each optical port is sealed with a threaded dust cap that prevents the entry of dirt and moisture.

Specification:

1.1 Fiber Parameters:

No.	Items		Unit	Specification
No.	Items		Unit	G.657A1
1	Mode Field Diameter	1310nm	um	8.4-9.2
1	Mode Field Diameter	1550nm	um	9.3-10.3
2	Cladding Diameter		um	125±0.7
3	Cladding Non-Circularity		%	≤ 0.7
4	Core-Cladding Concentricity Error		um	≤ 0.5
5	Coating Diameter		um	240±0.5
6	Coating Non-Circularity		%	≤ 6.0
7	Cladding-Coating Concentricity Error		um	≤ 12.0
8	Cable Cutoff Wavelength		nm	λ∞≤ 1260
9	Attenuation(max.)	1310nm	dB/km	≤ 0.35
		1550nm	dB/km	≤ 0.21
		1625nm	dB/km	≤ 0.23
10	Macro-Bending Loss	10tumx15mm radius @1550nm	dB	≤ 0.25
		10tumx15mm radius @1625nm	dB	≤ 0.10
		1tumx10mm radius @1550nm	dB	≤ 0.75
		1tumx10mm radius @1625nm	dB	≤ 1.5

1.2 Cable Parameters:

Items		Specifications
Tone Wire	AWG	24
	Dimension	0.61
	Material	Copper
Fiber Count		2-12
Colored Coating Fiber	Dimension	250±15um
Colored Coating Fiber	Color	Standard Color
Buffer Tube	Dimension	2.0 ±0.1mm
	Material	PBT and Gel
	Color	White
Strength Member	Dimension	2.0 ±0.2mm
Strength Member	Material	FRP
Outer Jacket	Diameter	3.0x4.5mm; 4x7mm; 4.5x8.1mm; 4.5x9.8mm
	Material	PE
	Color	Black

1.3 Mechanical and Environmental Characteristics:

Items	Unite	Specifications
Tension(Long Term)	N	300
Tension(Short Term)	N	600
Crush(Long Term)	N/10cm	1000
Crush(Short Term)	N/10cm	2200
Min. Bend Radius (Dynamic)	mm	60
Min. Bend Radius (Static)	mm	60

Application:

1.1 FTTA (Fiber to the Antenna)

1.2 Telecommunication Networks

1.3 Rural & Remote Area Networks

1.4 Temporary Network Setups
