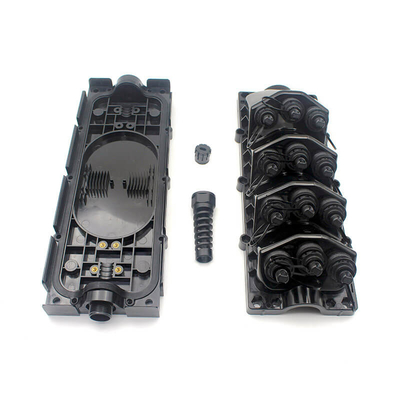

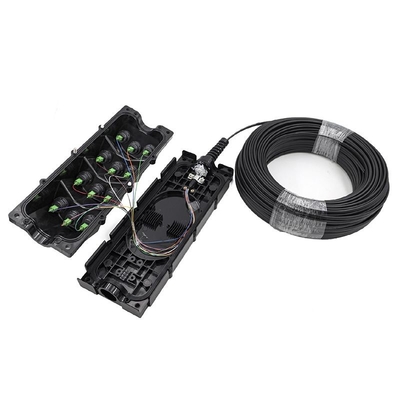

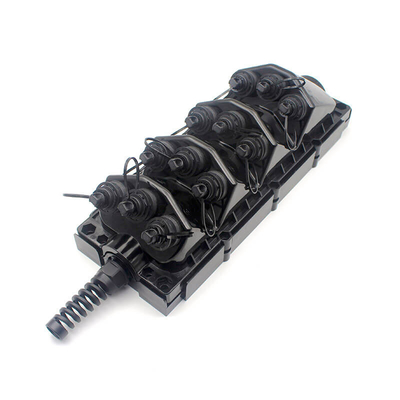

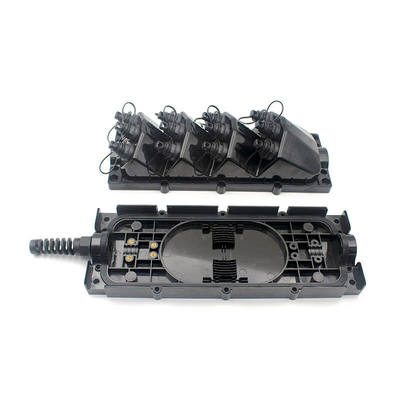

12 Ports MST Multiport Service Terminal Enclosure With Drop Cable

12 Ports MST Multiport Service Terminal Enclosure With Drop Cable
12 Ports MST Multiport Service Terminal Enclosure With Drop Cable 12 Ports MST Multiport Service Terminal Enclosure With Drop Cable 12 Ports MST Multiport Service Terminal Enclosure With Drop Cable 12 Ports MST Multiport Service Terminal Enclosure With Drop Cable

Large Image :  12 Ports MST Multiport Service Terminal Enclosure With Drop Cable

Product Details:
Place of Origin: China
Brand Name: DOWELL
Model Number: DW-MST-12
Payment & Shipping Terms:
Minimum Order Quantity: 500 pieces
Delivery Time: 7-15 Days
Payment Terms: T/T, Western Union, Paypal
Supply Ability: 500 PCS Per 7 Days
Contact Now

12 Ports MST Multiport Service Terminal Enclosure With Drop Cable

Description
Tension(Long Term): 300N Tension(Short Term): 600N
Crush(Long Term): 1000N/10cm Crush(Short Term): 2200N/10cm
Operation Temperature: -40~+70℃ Storage Temperature: -40~+70℃

12 Ports MST Multiport Service Terminal Enclosure With Drop Cable

The Multiport Service Terminal (MST) is an environmentally-sealed,Outside Plant (OSP) fiber optic terminal that provides a point for connecting subscriber drop cables to the network. Designed for Fiber To The Premises (FTTP) applications,the MST consists of a two-piece plastic housing equipped with multiple optical ports.

An attached optical cable assembly is connected internally to the optical ports. The MST may be ordered with two, four, six, eight, or twelve fiber ports and with a 2xN or 4x3 style housing. The four and eight port versions of the MST may also be ordered with internal 1x2 to 1x12splitters so that a single optical fiber input can feed all the optical ports.
Specification:
1.1 Fiber Parameters:
No. Items Unit Specification
G.657A1
1 Mode Field Diameter 1310nm um 8.4-9.2
1550nm um 9.3-10.3
2 Cladding Diameter um 125±0.7
3 Cladding Non-Circularity % ≤ 0.7
4 Core-Cladding Concentricity Error um ≤ 0.5
5 Coating Diameter um 240±0.5
6 Coating Non-Circularity % ≤ 6.0
7 Cladding-Coating Concentricity Error um ≤ 12.0
8 Cable Cutoff Wavelength nm λ∞≤ 1260
9 Attenuation(max.) 1310nm dB/km ≤ 0.35
1550nm dB/km ≤ 0.21
1625nm dB/km ≤ 0.23
10 Macro-Bending Loss 10tumx15mm radius @1550nm dB ≤ 0.25
10tumx15mm radius @1625nm dB ≤ 0.10
1tumx10mm radius @1550nm dB ≤ 0.75
1tumx10mm radius @1625nm dB ≤ 1.5

1.2 Cable Parameters:

Items Specifications
Tone Wire AWG 24
Dimension 0.61
Material Copper
Fiber Count 2-12
Colored Coating Fiber Dimension 250±15um
Color Standard Color
Buffer Tube Dimension 2.0 ±0.1mm
Material PBT and Gel
Color White
Strength Member Dimension 2.0 ±0.2mm
Material FRP
Outer Jacket Diameter 3.0x4.5mm; 4x7mm; 4.5x8.1mm; 4.5x9.8mm
Material PE
Color Black

1.3 Mechanical and Environmental Characteristics:

Items Unite Specifications
Tension(Long Term) N 300
Tension(Short Term) N 600
Crush(Long Term) N/10cm 1000
Crush(Short Term) N/10cm 2200
Min. Bend Radius (Dynamic) mm 60
Min. Bend Radius (Static) mm 60

Features:

2.1 No splicing required in the terminal

2.2 No terminal re-entry required
2.3 Available with hardened full-size optical or miniaturized DLX connectors with up to 12 ports
2.4 1:2, 1:4, 1:6 ,1:8 or 1:12 splitter options
2.5 Dielectric, toneable, or armored input stub cables
2.6 Pole, pedestal, handhole, or strand mounting options
2.7 Ships with universal mounting bracket
2.8 User-friendly packaging allows foreasy un-spooling
2.9 Factory-sealed enclosure for environmental protection
Application:
3.1 FTTH Projects
3.2 FTTA Projects
3.3 Truck cable connectings
3.4 Prospecting or military communication
12 Ports MST Multiport Service Terminal Enclosure With Drop Cable 0
