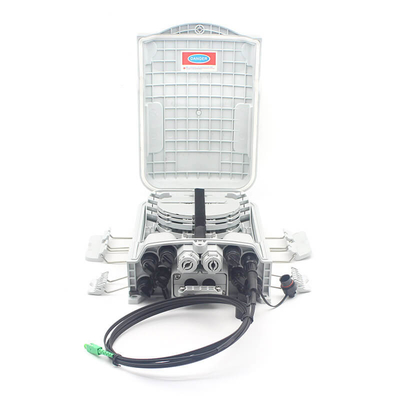

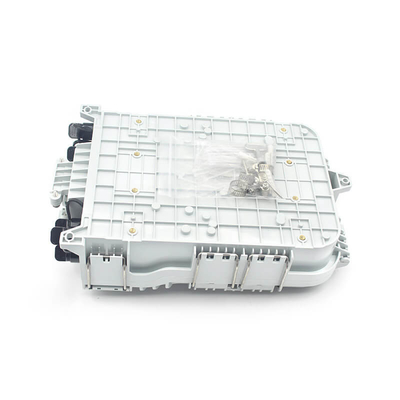

FTTH Fiber Optic 8 Port Waterproof Terminal Box For Both Indoor And Outdoor IP65 Waterproof
The Dowell Waterproof Terminal Box is a robust, environmentally sea 8 Port led fiber distribution solution designed for outdoor and harsh environment fiber optic network deployments. This fiber optic distribution box provides secure splicing, storage, and distribution of up to 8 fiber cores, ensur reliable econnectivity for FTTH(Fiber-to-the-Home), 5G networks, and industrial applications. With an IP68-rated waterproof and dust-proof design, it protects critical fiber connections from moisture, temperature extremes, and mechanical stress. modular structure supports easy fiber management, mak it ideal for aerial, underground, or pole-mounted installations.
Specification:
| Material |
PC+ABS, anti-aging, wet-proof |
| Protection Rating |
IP65 – Waterproof and Dustproof |
| Atmospheric Pressure |
70KPa to 106KPa |
| Insertion Loss |
≤ 0.15dB |
| Return Loss (UPC/APC) |
≥50 dB (UPC), ≥60 dB (APC) |
| Thunder-Proof Resistance |
Insulation:≥2×10⁴MΩ/500V;Voltage:≥3000V(DC)Insulation:≥2×10⁴MΩ/500V;Voltage:≥3000V(DC) |
| Dimensions |
319.3 x 2 x mm |
| Max Capacity |
36 fibers |
| Cable Entry Diameter |
8-14mm |
| Branch Hole Diameter |
Maximum 16mm |
| Reinforced Adapter |
8 pcs SC/UPC or SC/APC |
| Installation |
Pole mounting,Strand mounting,Wall-mounting |
Features:
1.1 Total Enclosed Protection:
Ensures reliable, long-term fiber protection with a fully enclosed, waterproof, and dustproof structure.
1.2 High-Quality PC+ABS Construction:
Built for durability, resistant to environmental wear, and suitable for both indoor and outdoor fiber cable distribution box
1.3 Integrated Cable Management:
Manages feeder and drop cables, fiber splicing, and distribution while keeping cable paths separate for optimal organization and performance.
1.4 Micro PLC Splitter Installation:
Compatible with micro-type PLC splitters, allowing for flexible network configurations.

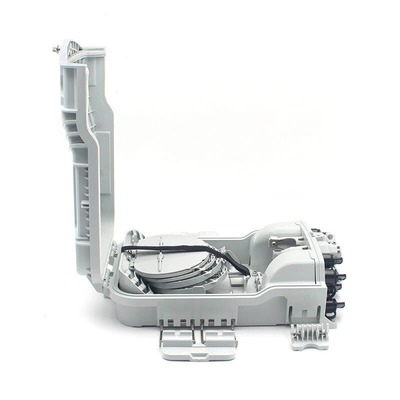

1.5 Flip-Up Distribution Panel:
Designed for easy access to the feeder cable and components, simplifying fiber optic termination box
1.6 Versatile Mounting Options:
Offers both wall-mounted and pole-mounted installation for flexible deployment in various environments, supporting fiber distribution terminal.
Application:
2.1 FTTx Communication Networks:
A reliable termination and distribution solution for fiber-to-the-home (FTTH) networks, facilitating fiber access for residential and commercial users.
2.2 Commercial Buildings:
Suitable for high-density fiber installations, such as in fiber distribution boxes and optical fiber terminal boxes for structured cabling in business complexes.
2.3 Outdoor Fiber Networks:
With IP65-rated protection, it’s ideal for exposed environments, ensuring connectivity in outdoor setups, including fiber optic cable terminal box.
