Product Details:
|
| Size: | 55 X 8.7 X 8.3 Mm ; 60 X 8.7 X 8.3 Mm | Mode: | SM SC/APC |
|---|---|---|---|
| Fiber Diameter: | 125μm ( 652 & 657 ) | Coating Diameter: | 250μm |

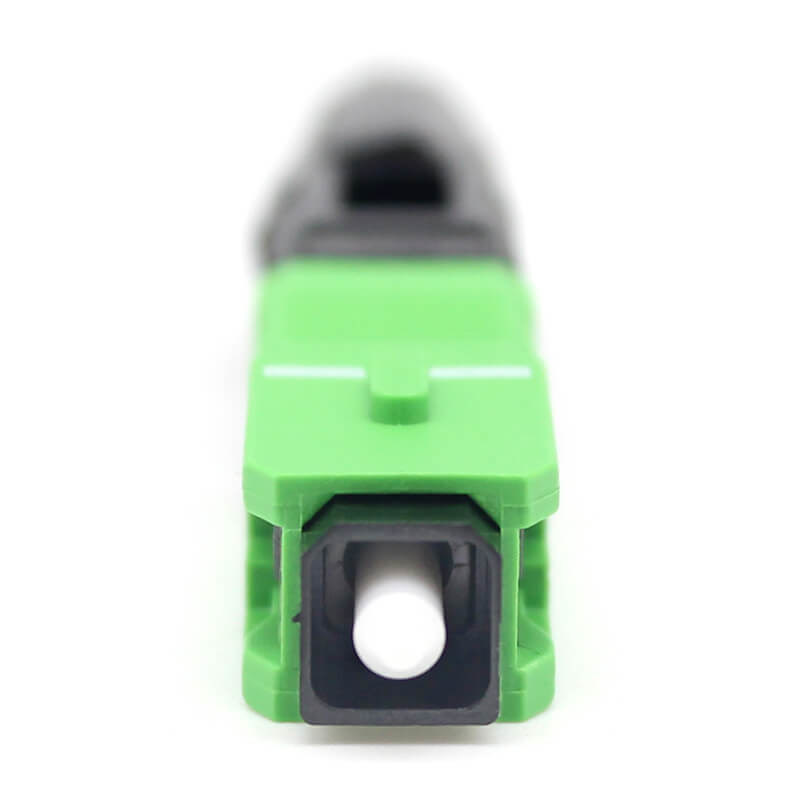

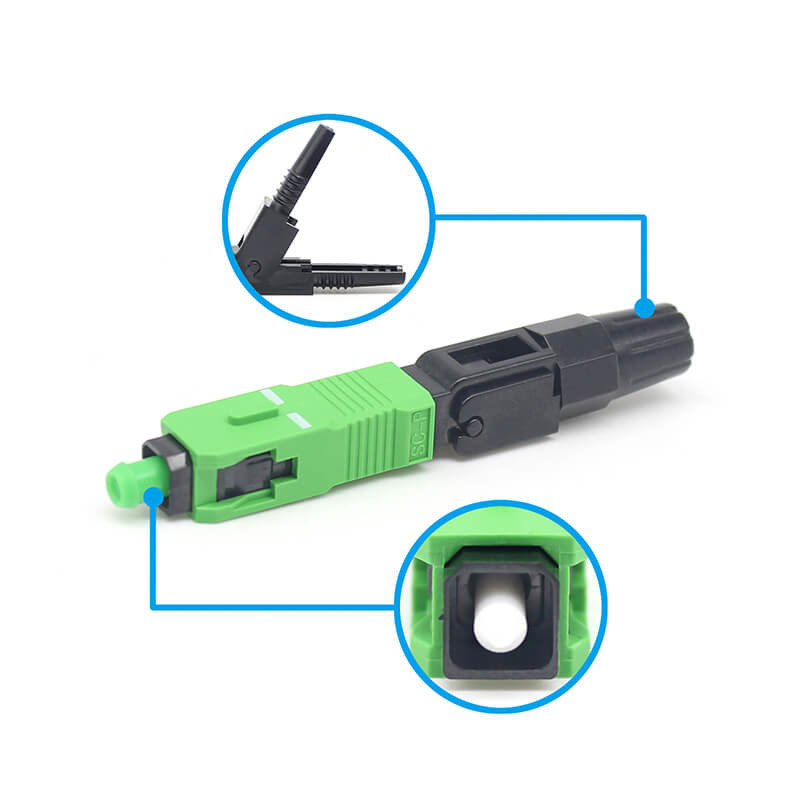

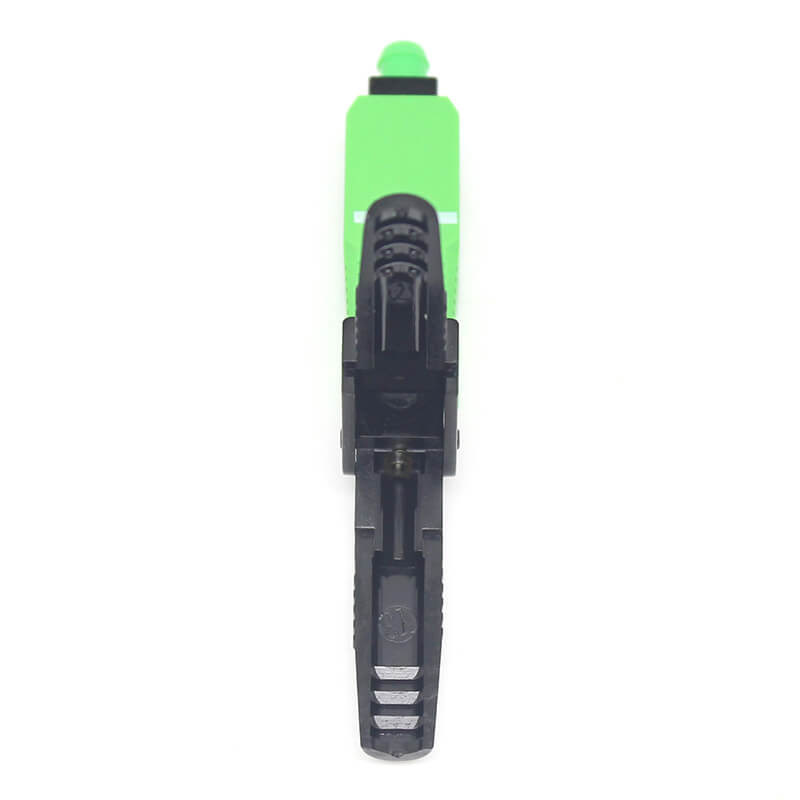

55CM 60CM SC UPC APC Optical Fiber Field-assembled Connector
Easy operating, The connector can be directly used in ONU, also with fasten strength more than 5 kg, it is widely used in FTTH project of network revolution. It also reduce the use of sockets and adapters, save cost of project. With 86 standard socket and adapter, the connector makes connection between drop cable and patch cord. The 86 standard socket provides completeprotection with its unique design.
Specification
| Cable Scope | ① 3.0 x 2.0 mm bow-type drop cable ② 2.0 x 1.6 mm drop cable ③Φ0.9mm fiber cable |
Size | 55 x 8.7 x 8.3 mm 60 x 8.7 x 8.3 mm without dust cap |
| Fiber Diameter | 125μm ( 652 & 657 ) | Coating Diameter | 250μm |
| Mode | SM SC/APC | Operation Time | about 15s (exclude fiber presetting) |
| Insertion Loss | ≤0.3dB (1310nm & 1550nm) | Return Loss | ≥55dB |
| Success Rate | >98% | Reusable Times | >10 times |
Application
1. Connection with field mountable indoor cable, pigtail, patch cord and transformation of patch cord in data room and directly used in specific ONU.
Package
More Different Types
