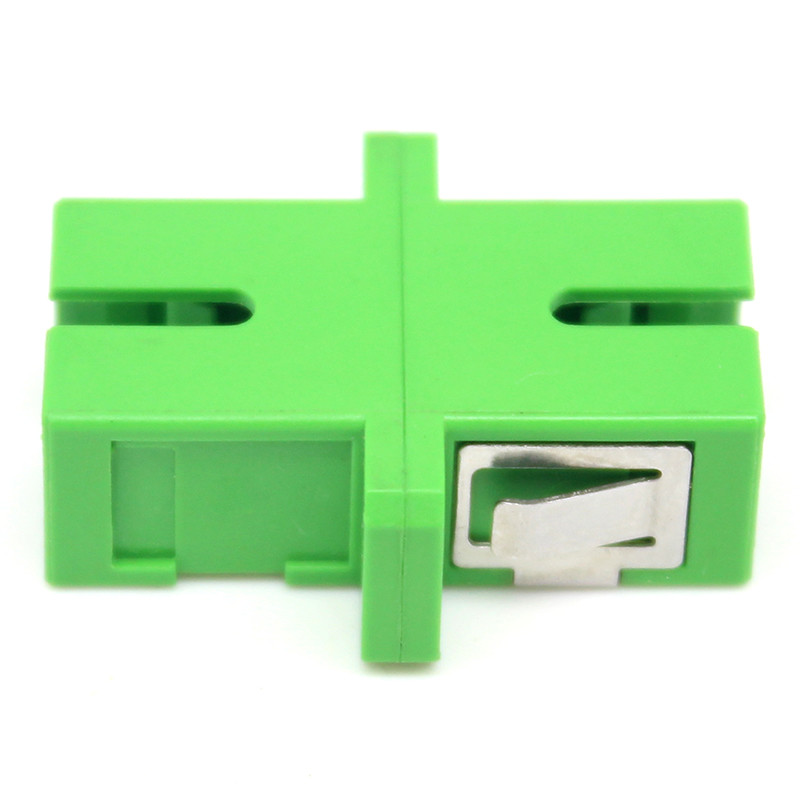

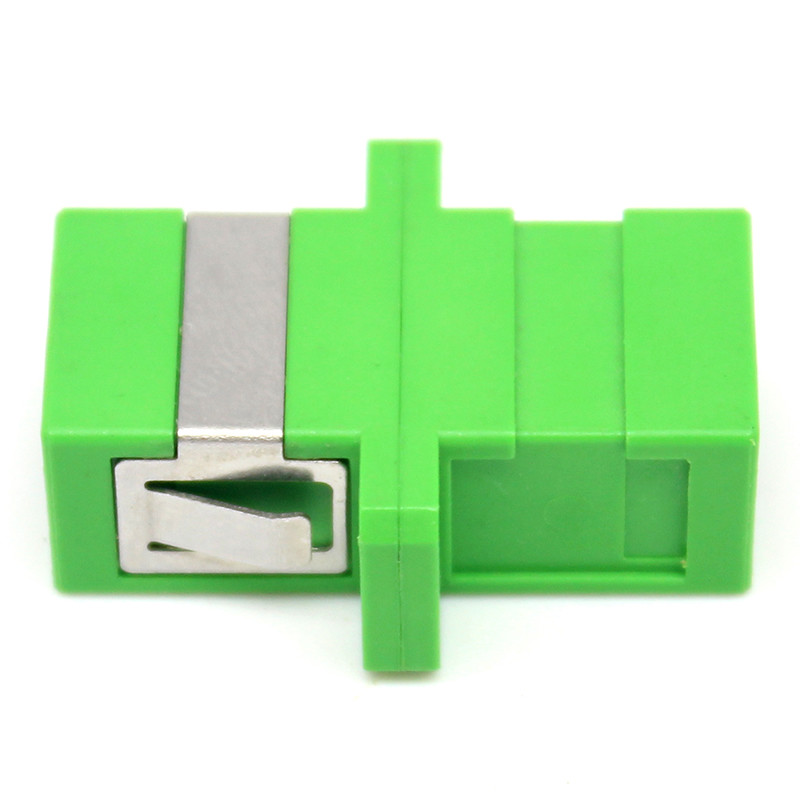

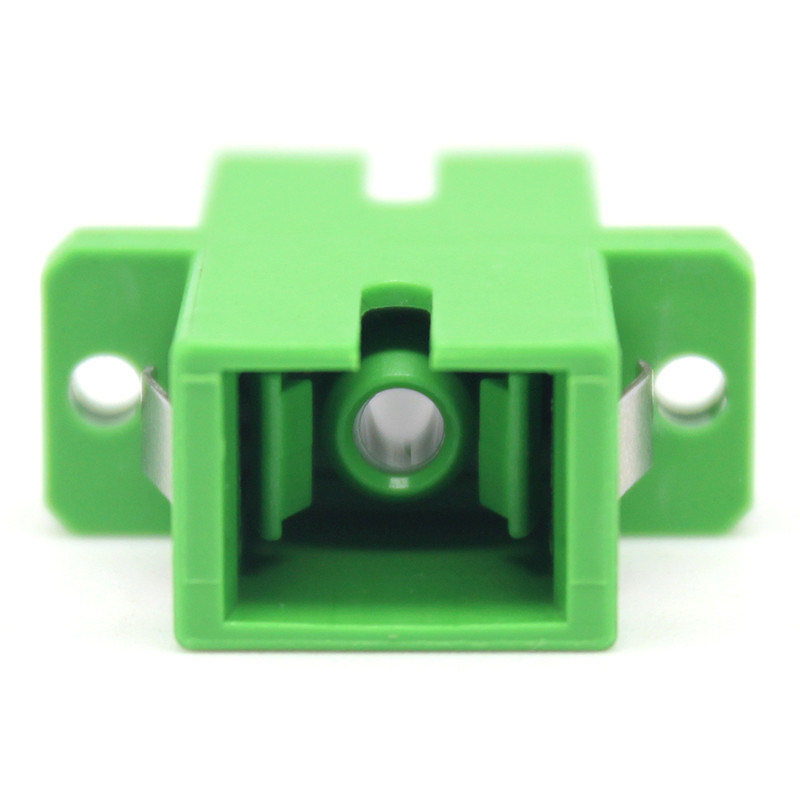

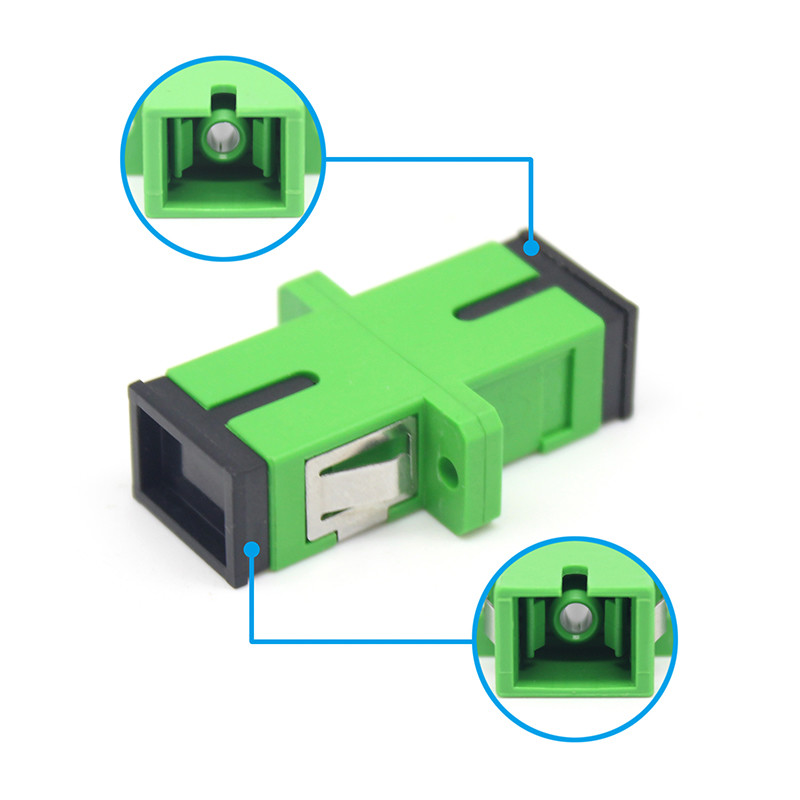

Flip Auto Shutter SC/APC Adapter for Wireless Optical Networks Durability 1000 Matings

Large Image : Flip Auto Shutter SC/APC Adapter for Wireless Optical Networks Durability 1000 Matings

Product Details:

Place of Origin:	Zhejiang, China
Brand Name:	DOWELL, Dowell
Certification:	CE RoHS FCC
Model Number:	DW-SAS-S4, SC APC Simplex Keystone Adapter with Flange

Payment & Shipping Terms:

Price:	$0.23/pieces 1-4999 pieces
Packaging Details:	Single item
Supply Ability:	30000 Piece/Pieces per Week

Contact Now

Flip Auto Shutter SC/APC Adapter for Wireless Optical Networks Durability 1000 Matings

Description

Type:	SC/APC Adapter With Inner Shutter	Use:	CATV System
Network:	Wireless Lan, Wired LAN, ONVIF, 4g, 3G	Insertion Lose:	0.2dB
Storage Temp.:	- 40°C To +85°C	Loading Test:	≥ 70 N
Durability:	>1000 Matings	Sleeve:	Zirconia
Mode:	Single Mode Or Multimode	Color:	Blue,Green,Grey
Port:	Ningbo

Products Description

DW-SAS-I

SC APC Adapter with Inner Shutter

DW-SAS-K

SC APC Simplex Keystone Adapter with Flange

DW-SAS-A3

SC Adapter with Filp Auto Shutter and Flange

Insertion Lose	0.2 dB (Zr. Ceramic)	Durability	0.2 dB (500 Cycle Passed)
Storage Temp.	- 40°C to +85°C	Humidity	95% RH (Non Packaging)
Loading Test	≥ 70 N	Insert and Draw Frequency	≥ 500 times

DW-SAS-A1

SC Adapter with Auto Slope Shutter and Flange

DW-SAS-A2

SC Adapter with Side Auto Shutter

DW-SAS-A4

SC Adapter with Flip Auto Shutter

DW-SPS·SAS-A3

SC PC to SC APC Simplex Adapter with Flip Auto Shutter and Flange

DW-SPS-A4

SC PC Adapter with Flip Auto Shutter

DW-SAS

SC APC Simplex Adapter with Flange

DW-SAD

SC APC Duplex Adapter with Flange

DW-SUS SC UPC Simplex Adapter with Flange

DW-SUD

SC UPC Duplex Adapter with Flange

Title goes here.

DW-SUS·FUS-MC

SC UPC to FC UPC Simplex Adapter in Metal Case with Flange

DW-SUS·LUS-MC

SC UPC to LC UPC Simplex Adapter in Metal Case with Flange

DW-SUS·LUS-MC2

SC UPC to LC UPC Simplex Adapter in Metal Case with Flange

DW-SUS·TUS-MC

SC UPC to ST UPC Simplex Adapter in Metal Case with Flange

DW-SUD-MC

SC UPC Duplex Adapter in Metal Case with Flange

Fiber optic adapters (also called couplers) are designed to connect two fiber optic cables together. They come in versions to connect single fibers together (simplex), two fibers together (duplex), or sometimes four fibers together (quad).

Adapters are designed for multimode or singlemode cables. The singlemode adapters offer more precise alignment of the tips of the connectors (ferrules). It is ok to use singlemode adapters to connect multimode cables, but you should not use multimode adapters to connect singlemode cables.

● Double the capacity, perfect space saving solution
● Small size, large capacity
● High return loss, Low insertion loss
● Push-and-pull structure, convenient for operation;
● Split zirconia (ceramic) ferrule is adopted.
● Usually mounted in a distribution panel or wall box.
● The adapters are color coded allowing easy identification of the adapter type.
● Available with single-core & multi-core patch cords and pigtails.

● CATV System
● Telecommunications
● Optical Networks
● Testing / Measurement Instruments
● Fiber To the Home

Company Profile

FAQ

1. Q : Are you trading company or manufacturer?
A : 70% of our products we manufactured and 30% do trading for customer service
2. Q : How can you ensure the quality?
A : Good question! We are a one-stop manufacturer. We have complete facilities and over-15- years manufacturing experience to ensure product quality. And we have already passed ISO 9001 Quality Management System.
3. Q : Can you provide samples ? Is it free or extra?
A : Yes, After price confirmation , we could offer the free sample, but the shipping cost need pay for by your side.
4. Q : How long is your delivery time ?
A : In stock: In 7 days; No in stock: 15~20 days, depend on your QTY.
5. Q: Can you do OEM?
A: Yes , we can
6. Q: What is your payment term ?
A: Payment <=4000USD，100% in advance. Payment>= 4000USD, 30% TT in advance, balance before shipment.
7. Q: How we can pay?
A: TT, Western Union , Paypal ,Credit Card and LC
8. Q: Transportation?
A: Transported by DHL, UPS, EMS, Fedex, Air freight, Boat and Train
