UV STABILIZED THERMOPLASTIC Drop Fiber Optical Cable Anchor Tension Clamp for 3-8mm Conductor Sizes

UV STABILIZED THERMOPLASTIC Drop Fiber Optical Cable Anchor Tension Clamp for 3-8mm Conductor Sizes
UV STABILIZED THERMOPLASTIC Drop Fiber Optical Cable Anchor Tension Clamp for 3-8mm Conductor Sizes UV STABILIZED THERMOPLASTIC Drop Fiber Optical Cable Anchor Tension Clamp for 3-8mm Conductor Sizes UV STABILIZED THERMOPLASTIC Drop Fiber Optical Cable Anchor Tension Clamp for 3-8mm Conductor Sizes UV STABILIZED THERMOPLASTIC Drop Fiber Optical Cable Anchor Tension Clamp for 3-8mm Conductor Sizes

Large Image :  UV STABILIZED THERMOPLASTIC Drop Fiber Optical Cable Anchor Tension Clamp for 3-8mm Conductor Sizes

Product Details:
Place of Origin: Zhejiang, China
Brand Name: DOWELL
Model Number: PA-06
Payment & Shipping Terms:
Minimum Order Quantity: 1000 pieces
Packaging Details: Normal Package
Delivery Time: 7-15 Days
Payment Terms: T/T, Western Union, Paypal
Contact Now

UV STABILIZED THERMOPLASTIC Drop Fiber Optical Cable Anchor Tension Clamp for 3-8mm Conductor Sizes

Description
Material: UV Resistant Plastic+Aliuminum Cable Diameter: 5-10mm
MBL: 4KN Color: Silver

UV STABILIZED THERMOPLASTIC Drop Fiber Optical Cable Anchor Tension Clamp for 3-8mm Conductor Sizes 0
UV STABILIZED THERMOPLASTIC Drop Fiber Optical Cable Anchor Tension Clamp for 3-8mm Conductor Sizes 1
UV STABILIZED THERMOPLASTIC Drop Fiber Optical Cable Anchor Tension Clamp for 3-8mm Conductor Sizes 2
UV STABILIZED THERMOPLASTIC Drop Fiber Optical Cable Anchor Tension Clamp for 3-8mm Conductor Sizes 3

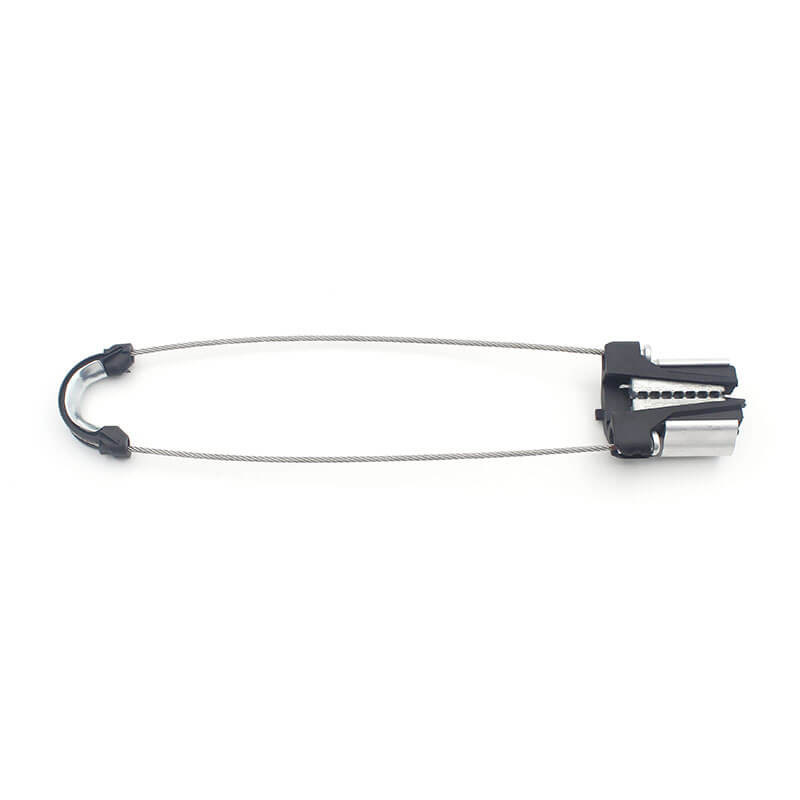

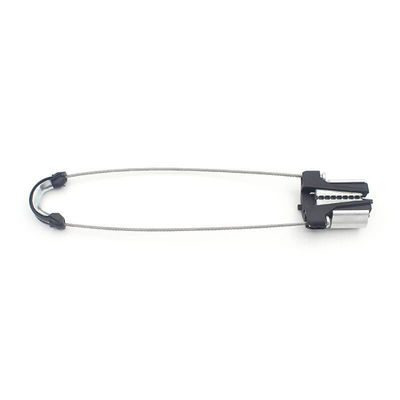

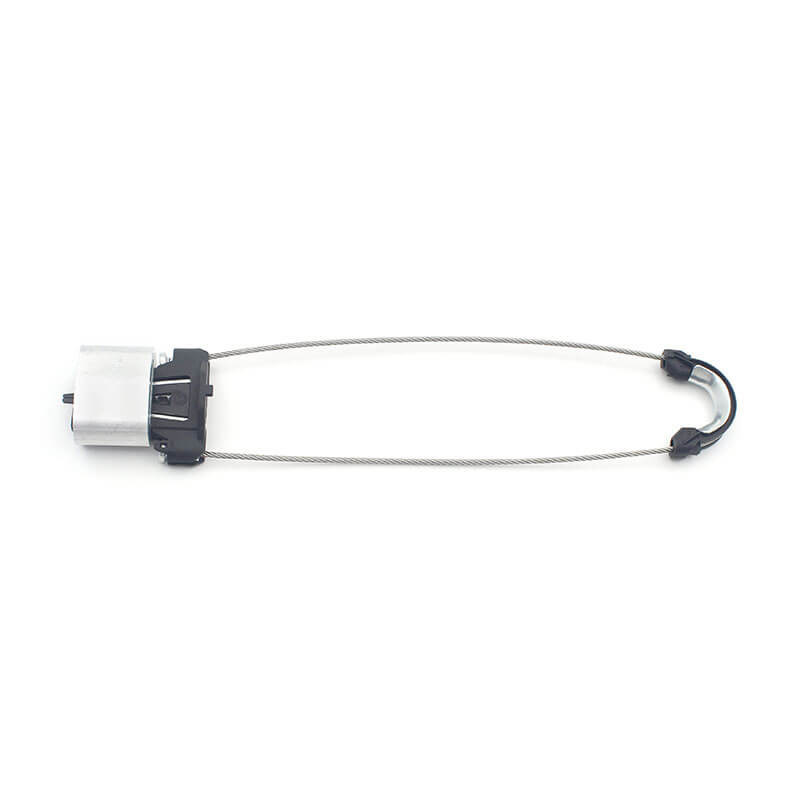

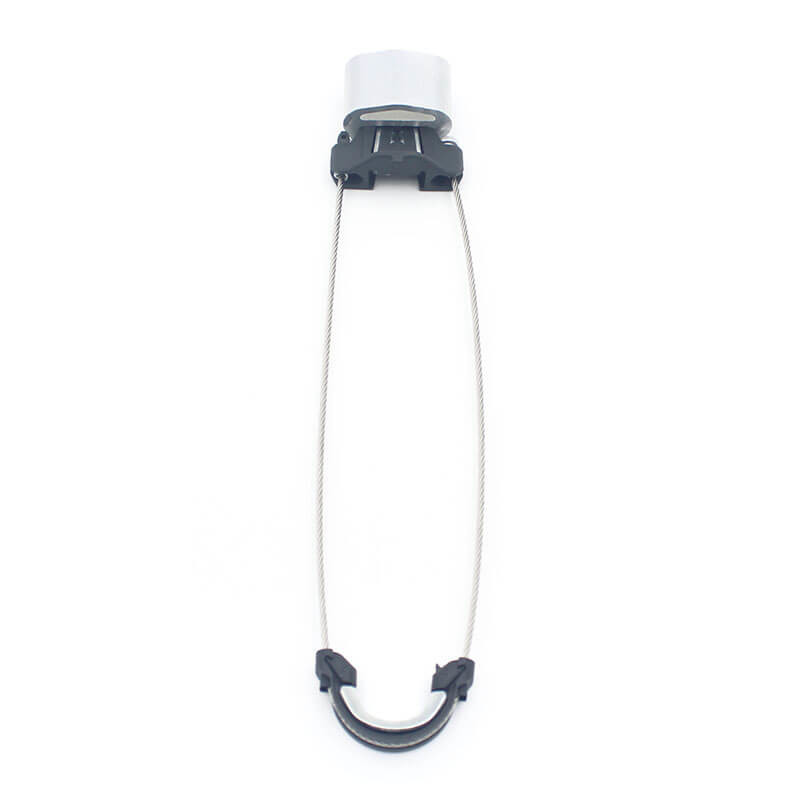

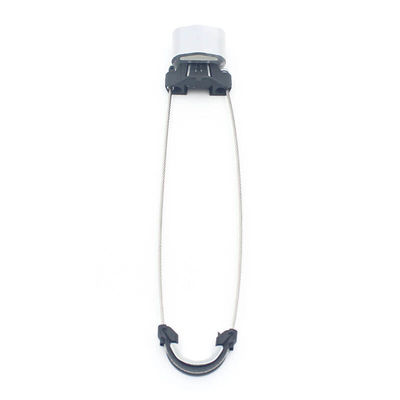

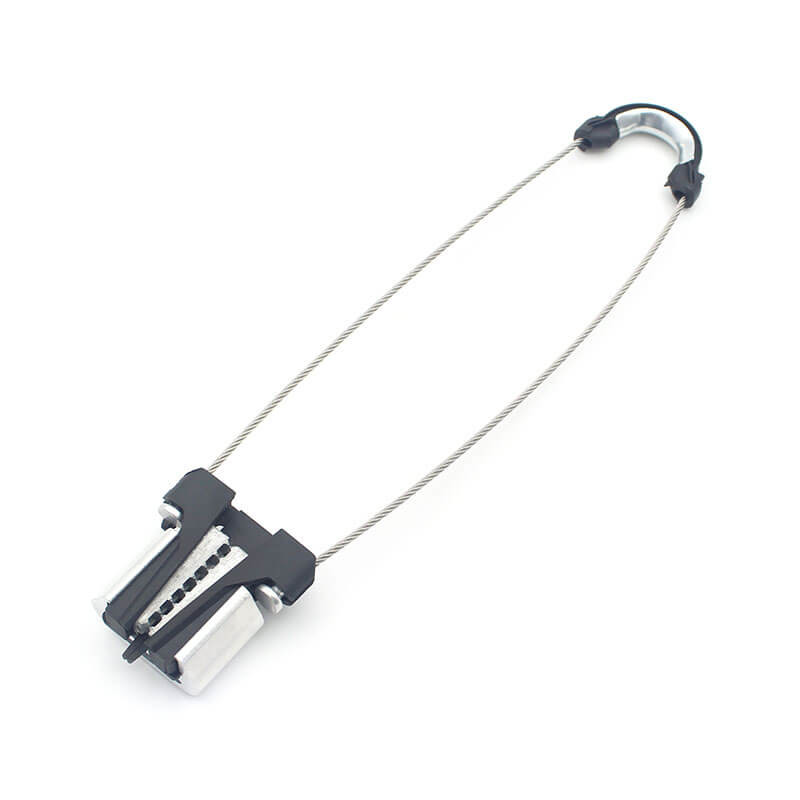

PA-07 are designed for fixing and keeping in tension the optical cable with a remote metal power element type 8 on the supports of overhead power lines, communications, urban electrical facilities (street lighting, land electric transport), elements of buildings and structures with a span length of up to 100 meters.

The clamp consists of a high-strength polymer housing, steel wedges with teeth, for securing the cable from slipping, stainless steel cable 3–8 mm. It complies with International Standard NFC 33-041.

SR.NO.
DESCRIPTION
DATA
1
Type of Clamp
Anchor Clamp
2
Item No.:
PA07
3
International Standard it complies with
NFC 33-041
4
Range of Conductor Sizes
3-8mm
5
Color of Connector Core
BLACK
6
Body Material
UV STABILIZED THERMOPLASTIC
Nylon Fiber Glass Filled, Aluminium alloy
7
Bail Material
304 Stainless Steel Bail
8
Breaking Load
5kN
9
Logo
/
10
Routine Test
1. Dimensional Verification
2. Mechanical Test.
a) Product Break
3. Visual
a) Marking (Printing & Embossing)
b) Overall finish
c) Packaging Quality
UV STABILIZED THERMOPLASTIC Drop Fiber Optical Cable Anchor Tension Clamp for 3-8mm Conductor Sizes 4
It is widely used to support telephone drop wire at span clamps, drive hooks and various drop attachments.
UV STABILIZED THERMOPLASTIC Drop Fiber Optical Cable Anchor Tension Clamp for 3-8mm Conductor Sizes 5
UV STABILIZED THERMOPLASTIC Drop Fiber Optical Cable Anchor Tension Clamp for 3-8mm Conductor Sizes 6
UV STABILIZED THERMOPLASTIC Drop Fiber Optical Cable Anchor Tension Clamp for 3-8mm Conductor Sizes 7
UV STABILIZED THERMOPLASTIC Drop Fiber Optical Cable Anchor Tension Clamp for 3-8mm Conductor Sizes 8
UV STABILIZED THERMOPLASTIC Drop Fiber Optical Cable Anchor Tension Clamp for 3-8mm Conductor Sizes 9
UV STABILIZED THERMOPLASTIC Drop Fiber Optical Cable Anchor Tension Clamp for 3-8mm Conductor Sizes 10
UV STABILIZED THERMOPLASTIC Drop Fiber Optical Cable Anchor Tension Clamp for 3-8mm Conductor Sizes 11
UV STABILIZED THERMOPLASTIC Drop Fiber Optical Cable Anchor Tension Clamp for 3-8mm Conductor Sizes 12
1. Q : Are you trading company or manufacturer?
 A : 70% of our products we manufactured and 30% do trading for customer service
2. Q : How can you ensure the quality?
 A : Good question! We are a one-stop manufacturer. We have complete facilities and over-15- years manufacturing experience to ensure product quality. And we have already passed ISO 9001 Quality Management System.
3. Q : Can you provide samples ? Is it free or extra?
 A : Yes, After price confirmation , we could offer the free sample, but the shipping cost need pay for by your side.
4. Q : How long is your delivery time ?
 A : In stock: In 7 days; No in stock: 15~20 days, depend on your QTY.
5. Q: Can you do OEM?
 A: Yes , we can
6. Q: What is your payment term ?
 A: Payment <=4000USD，100% in advance. Payment>= 4000USD, 30% TT in advance, balance before shipment.
7. Q: How we can pay?
 A: TT, Western Union , Paypal ,Credit Card and LC
8. Q: Transportation?
 A: Transported by DHL, UPS, EMS, Fedex, Air freight, Boat and Train
